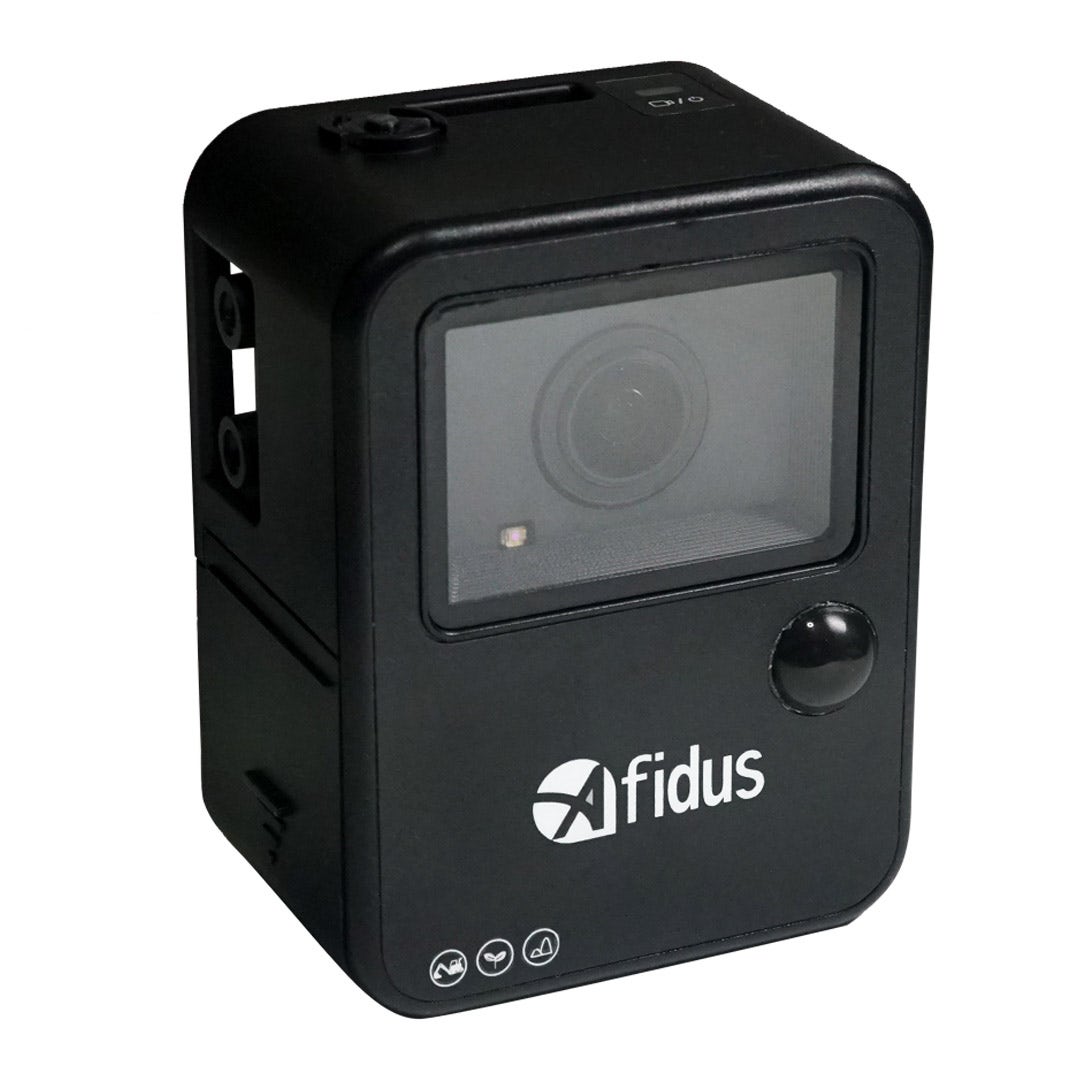

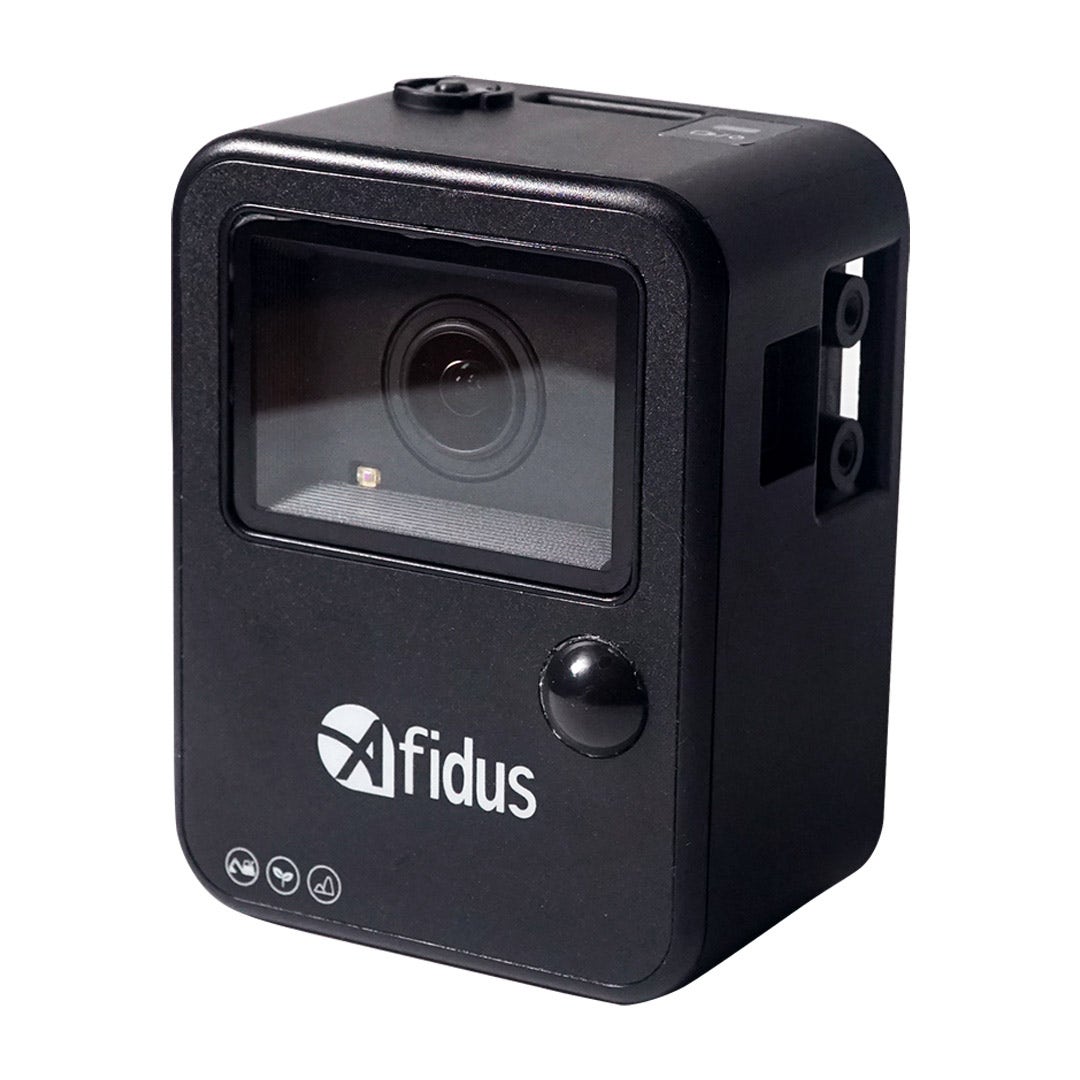

Afidus ATL-230 Time-Lapse Camera

The Afidus ATL-230 Time Lapse Camera is a 2.1MP timelapse camera from Afidus with Full HD 30fps video output and a 1/4" sensor. It weighs 150g, is weather sealed, a 100-12800 ISO range, and connects via HDMI, Micro USB, USB-C and Wi-Fi.

Technical Details: Afidus ATL-230 Time Lapse Camera

The Afidus ATL230 camera, with its plethora of features, stands head and shoulders above its compact counterparts in the traffic survey sector. Its capabilities extend to providing a live video feed to a smartphone, a 3:1 optical zoom lens - ideal for focusing on individual lanes when required - and multi-window scheduling, enabling the camera to function during two distinct daily time slots.

Key Features

• Live video feed to a smartphone
• 3:1 optical zoom lens
• Multi-window scheduling
• Waterproof USB Port
• AE Optimiser Sensor

Additional Technical Details

The new ATL-230 case design is sealed to endure any weather.

Even the USB port is waterproof allowing a worry free external power, battery or solar connection. The ATL-230 includes a silicone sleeve for added protection which is not required for operation indoors or out. The ATL-230’s SD card slot has been moved to a more accessible location.

The Auto Exposure Optimiser photo sensor reads changing light levels to predict how the camera should react. For example, during sunset, fully automatic cameras try to maintain brightness as the scene gets darker. Often, this results in flickering exposures and the camera trying to keep the scene bright.

AE Optimiser realises the scene is getting darker and the exposure is adjusted to follow the darkness with greatly reduced flicker. Image alignment is a unique tool only found in Afidus cameras. Removing the card to download or changing batteries may require moving the camera.

Image Alignment and Power

Image alignment builds a wireframe overlay based upon a snapshot taken before the camera was moved. With a visual reference it is easy to reposition the camera for seamless capture. Day of week scheduling and 1 to 4 time slots each day.

Avoid capturing and editing content you won’t use. Avoid maths or guessing by using the time lapse calculator component within the Afidus 4K app. Afidus cameras conserve batteries by requiring very little power between frames and outside the daily schedule hours.

Most external USB power packs automatically turn off when not actively charging. For example, using a power pack to charge a phone, once the phone is charged the power pack shuts down. In the past, users had limited options for always on power packs.

The ATL-230 has Power Pack Shutdown Avoidance, allowing you to use any USB battery supply. There are three setting options which trigger the battery pack, preventing auto shutdown.

A solution for checking Inconveniently mounted cameras

There is no longer a need for a ladder or lift for a camera check. The Afidus 230 camera will look for a wi-fi network at a scheduled time every day. This allows an onsite person to check the camera status, make setting adjustments and even download to their phone.

The feature is also intended to allow convenient access to cameras placed in a location that may not be easily accessible. For example, checking battery status rather than needing a ladder or aerial lift to access the camera, a status check could be done from the ground. The Afidus camera offers peace-of-mind and confidence with a very unique file protection and recovery feature.

The image shows SD card files, notice the bottom. There is an MP4 file with 481 MB of content, however, due to abrupt loss of power the MP4 file is corrupt. File recovery software will not repair the file, but there is no concern.

Insert the card into the camera, turn the camera on and the associated IDX file will finalise and repair the MP4.
