Atomos Ninja TX Monitor-Recorder, 5-Inch

Technical Details

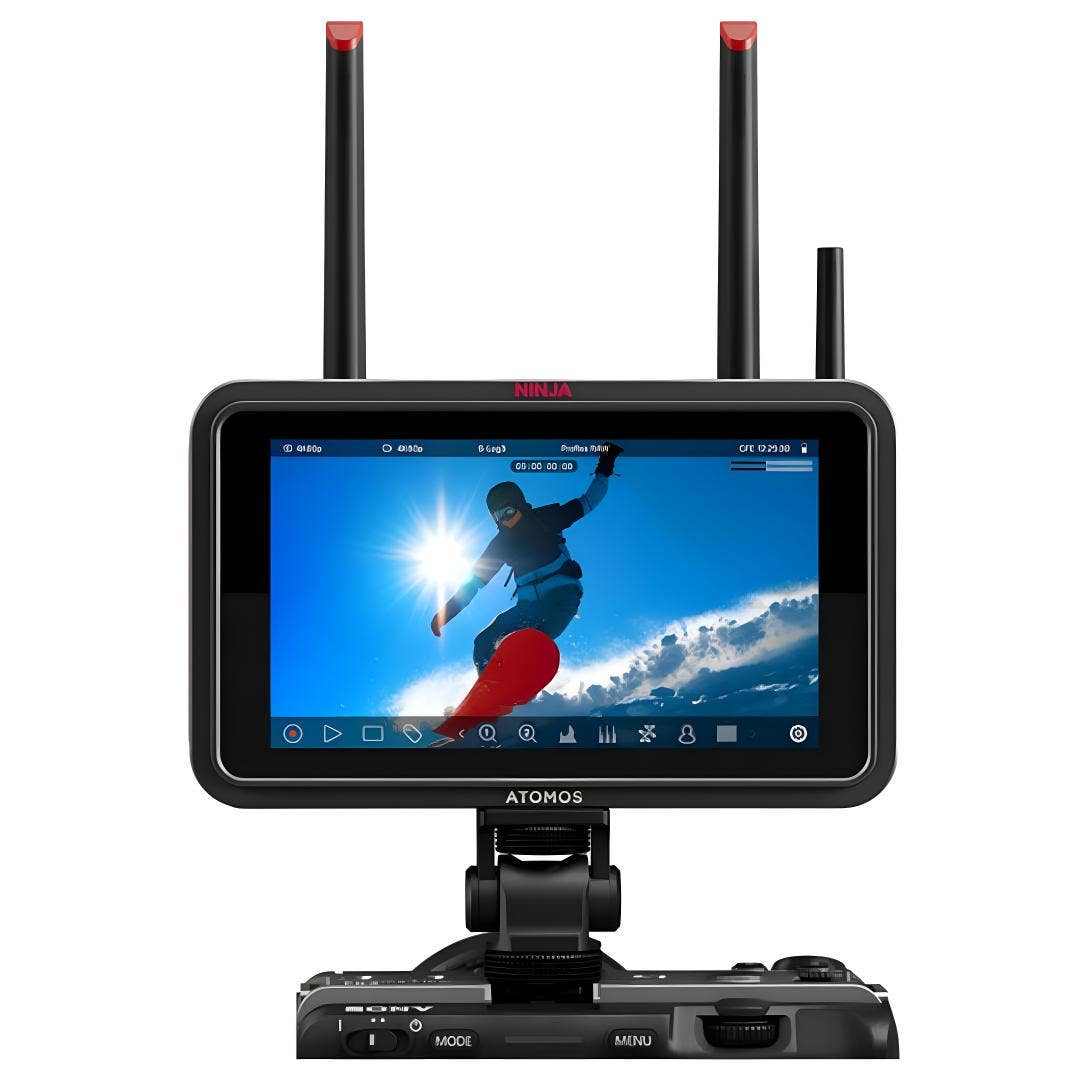

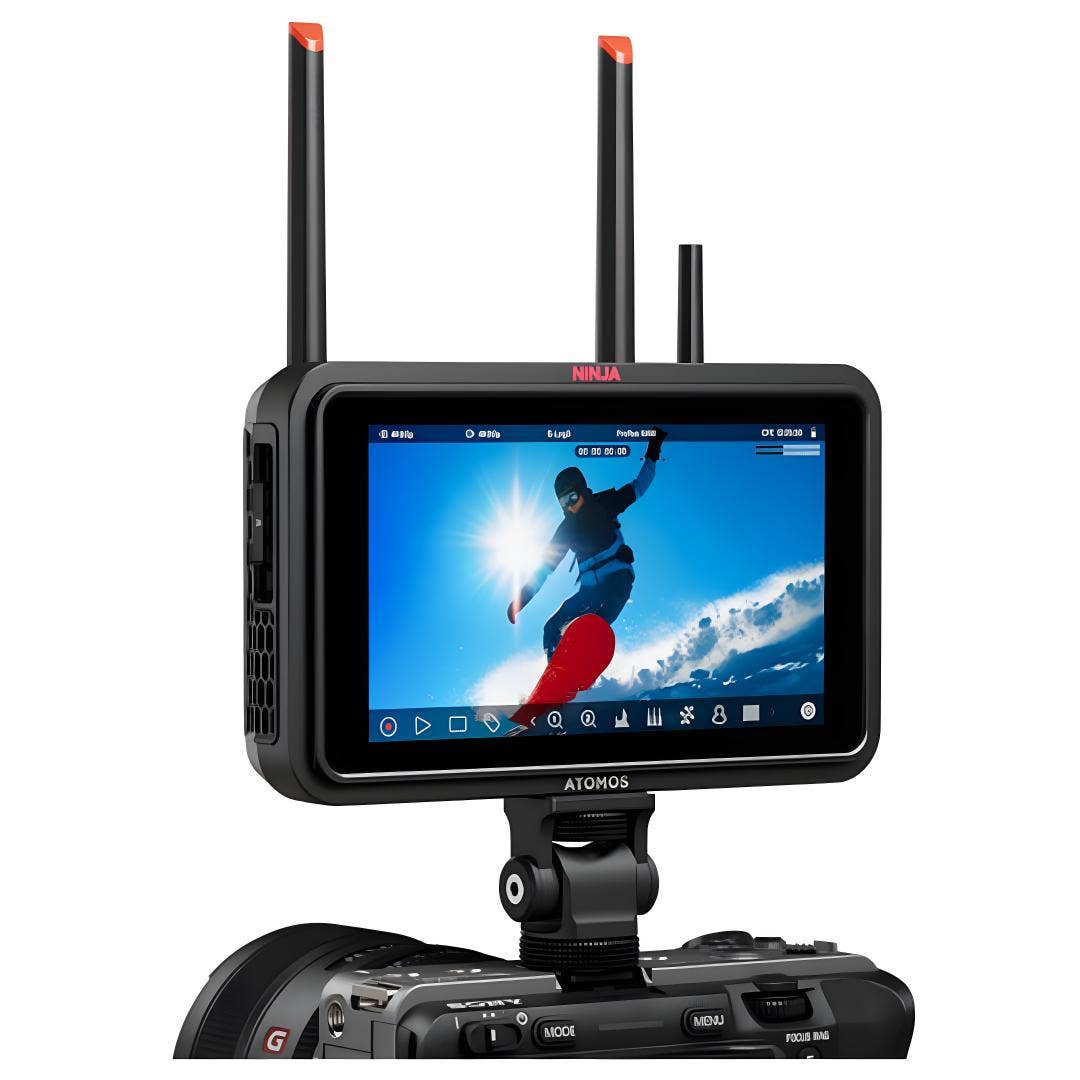

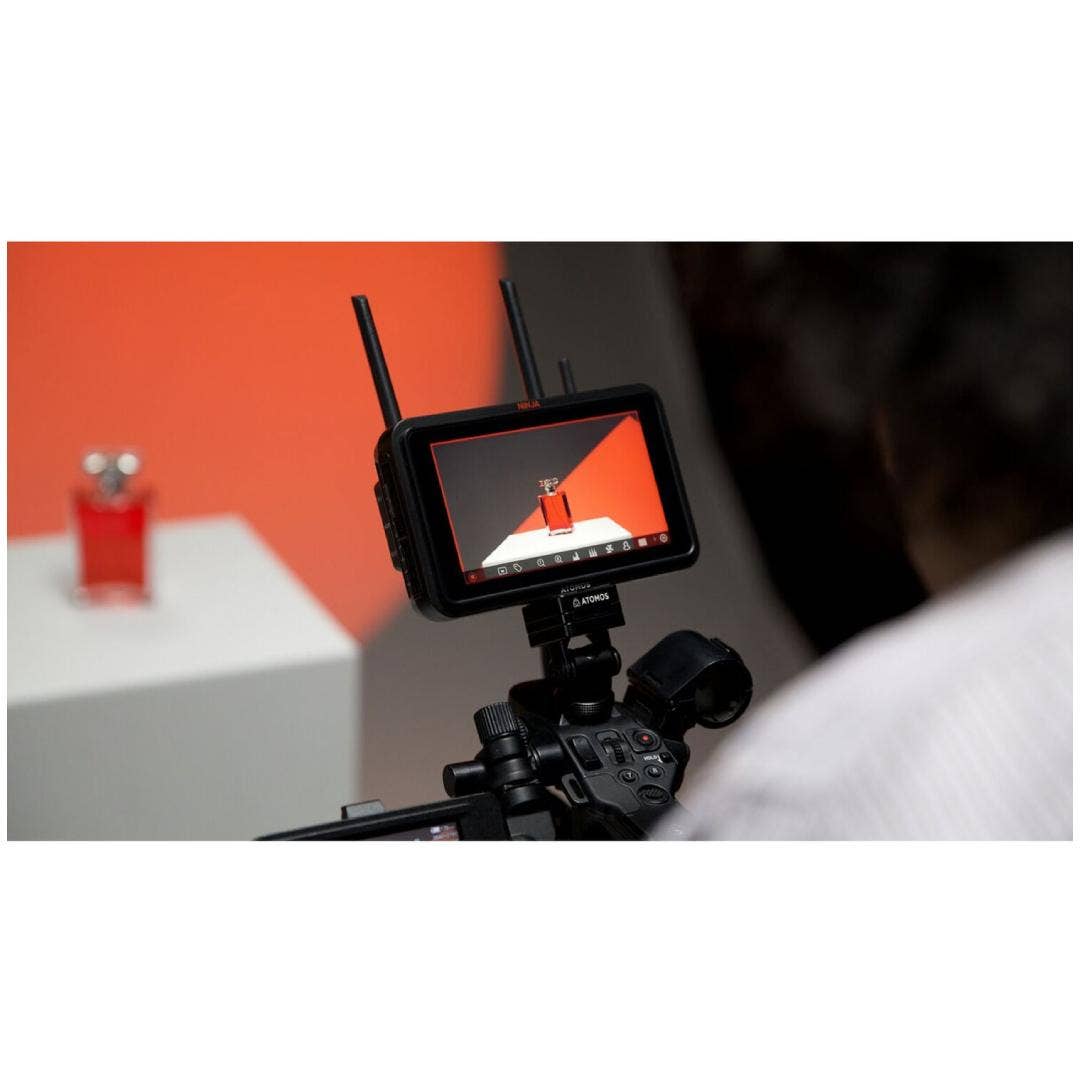

Atomos Ninja TX 5-Inch Monitor-Recorder The Atomos Ninja TX 5.2" Camera to Cloud Monitor/Recorder represents a complete reengineering of the classic Ninja monitor line while maintaining its familiar and trusted design. This 5" on-camera monitor and recorder is built for versatility on any set, offering both 12G-SDI and HDMI 2.0 input and output. It integrates Atomos Connect technology for Wi-Fi connectivity, enabling TX/RX streaming and direct uploads.

The monitor features a brighter 1500 cd/m² touchscreen display, supports 8K30 raw recording, and offers recording to CFexpress Type B or USB-C. Additional highlights include RF/Bluetooth timecode synchronisation, a built-in NDI/HX3 licence, and support for all major codecs such as ProRes RAW, DNx, and H.265.

Key Features

• 5.2" IPS touchscreen with a 1920 x 1080 resolution and 1500 cd/m² brightness
• Integrated Atomos Connect technology for Wi-Fi connectivity
• Supports 8K30 raw recording
• RF/Bluetooth timecode synchronisation
• Support for all major codecs such as ProRes RAW, DNx, and H.265

Enhanced 5.2" Touchscreen Display

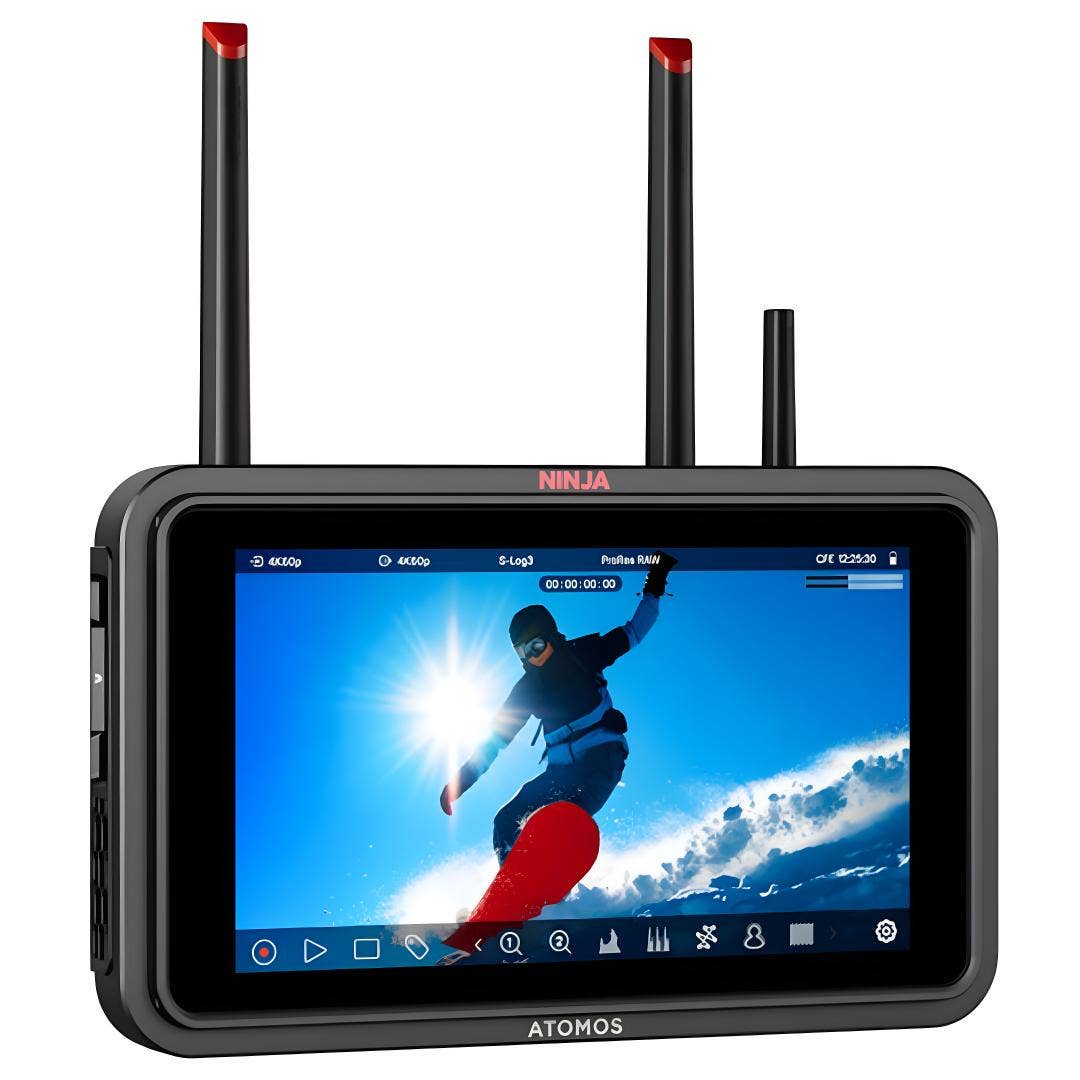

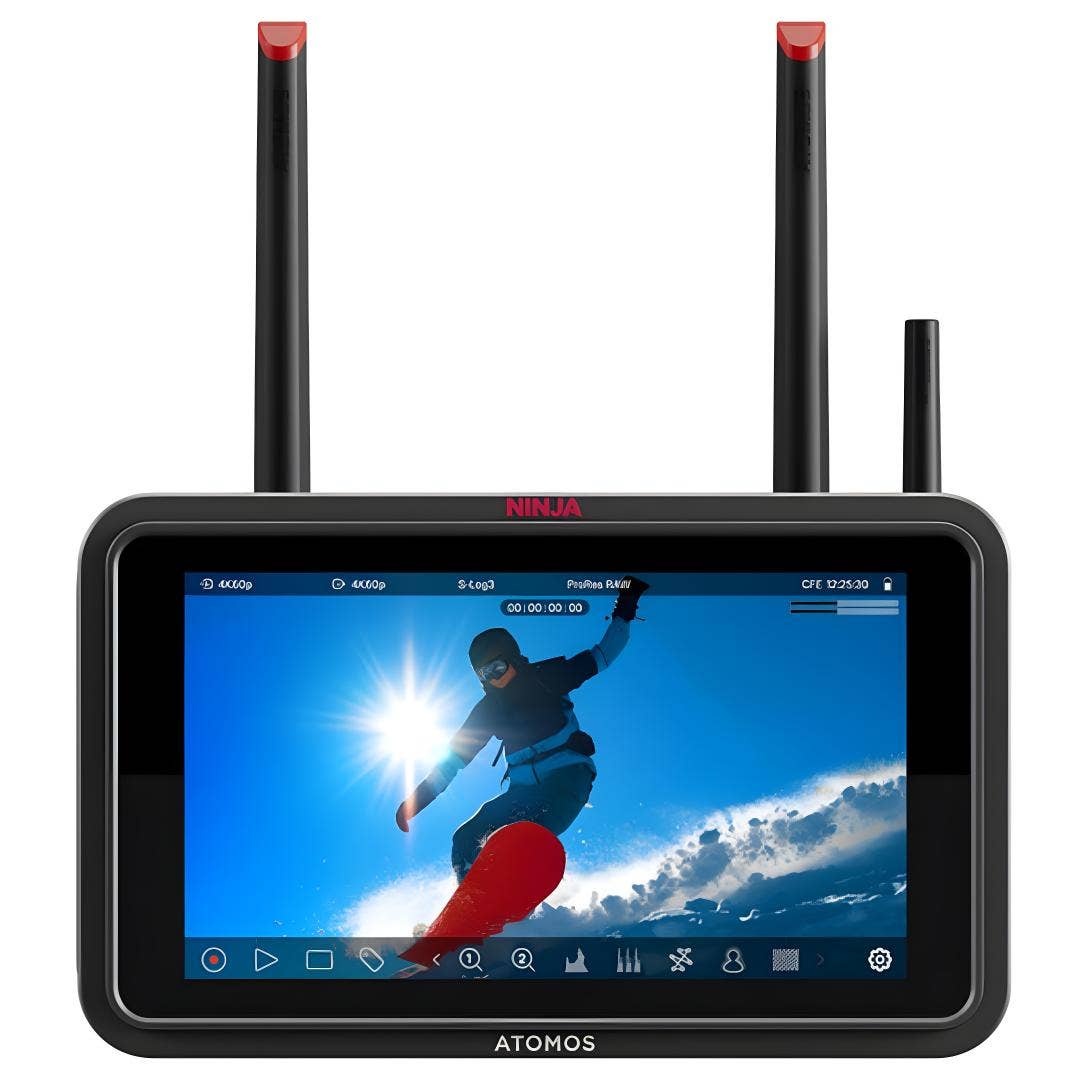

The Ninja TX features a 5.2" IPS touchscreen with a 1920 x 1080 resolution and an impressive 1500 cd/m² brightness, ensuring clear and colour-accurate visuals even under direct sunlight.

Its 8/10-bit colour processing, HDR compatibility, and Rec. 709 colour gamut provide rich and precise colour representation. The monitor also supports Calibrite ColourChecker Display Pro/Plus calibration for professional-level accuracy, ensuring that what you see on screen closely matches your final output.

Redesigned Operating System and Wireless Capabilities

Running on the newly developed AtomOS Linux operating system, the Ninja TX benefits from a cleaner interface, improved stability, and cooler, more efficient performance.

Wireless functionality has also been expanded, with AtomX Connect technology now integrated directly into the unit. The built-in NDI licence allows seamless participation in networked workflows as either an NDI source or receiver, ensuring high-quality, low-latency video streaming. Additionally, AirGlu timecode synchronisation over RF or Bluetooth enables precise syncing of multiple devices such as cameras, recorders, and monitors, functioning as a powerful central timecode hub.

Cloud Connectivity and Workflow Integration

The Ninja TX introduces a streamlined Camera to Cloud (C2C) workflow that allows creators to upload footage directly from the device to cloud platforms. Files can be sent progressively to ATOMOSphere, Adobe Frame.io, or Dropbox without external hardware. Unlike earlier models, all C2C functionality is built directly into the Ninja TX, providing a seamless, ready-to-use cloud-connected experience.

This integration significantly enhances post-production efficiency and collaboration for professional workflows.

Expanded Input/Output and Recording Options

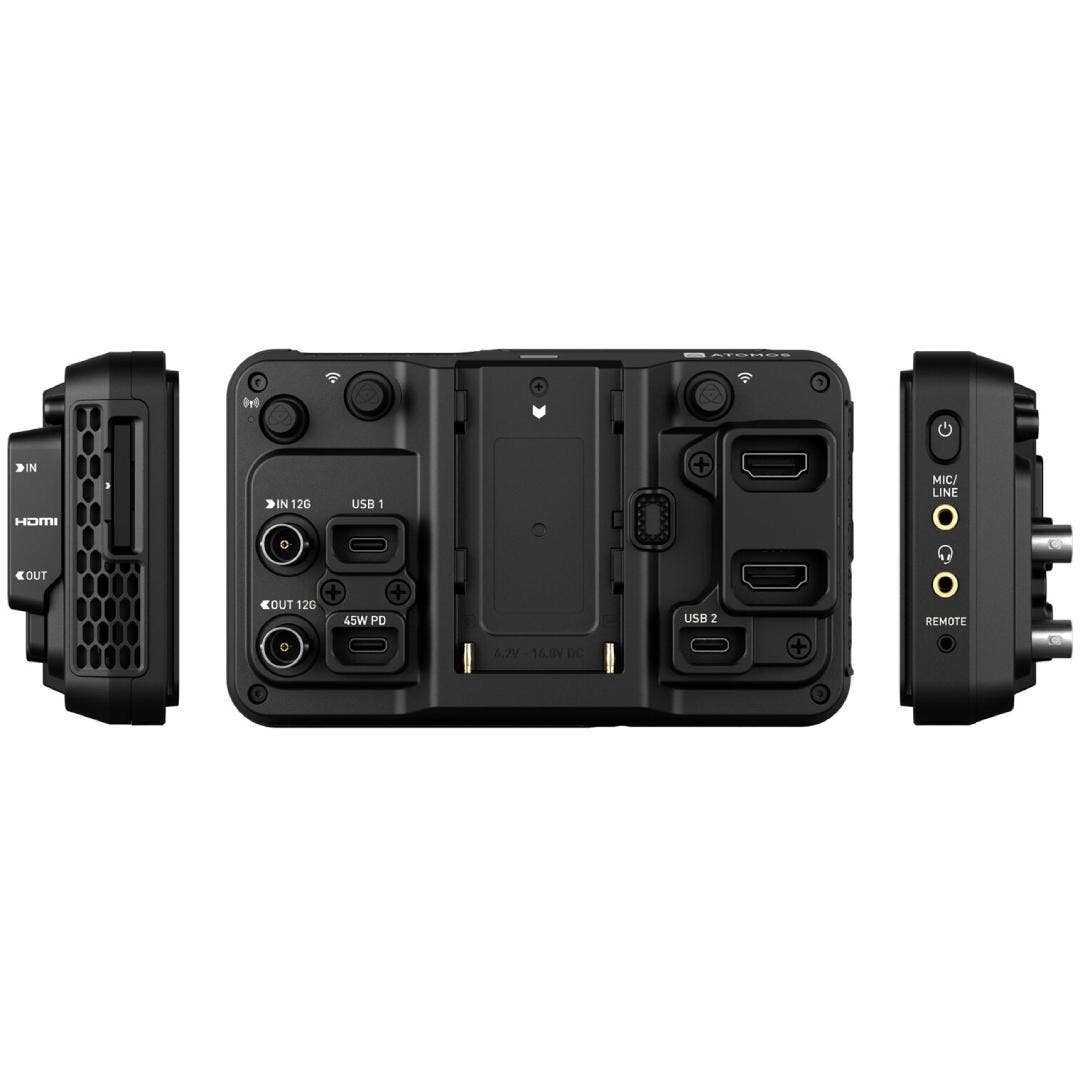

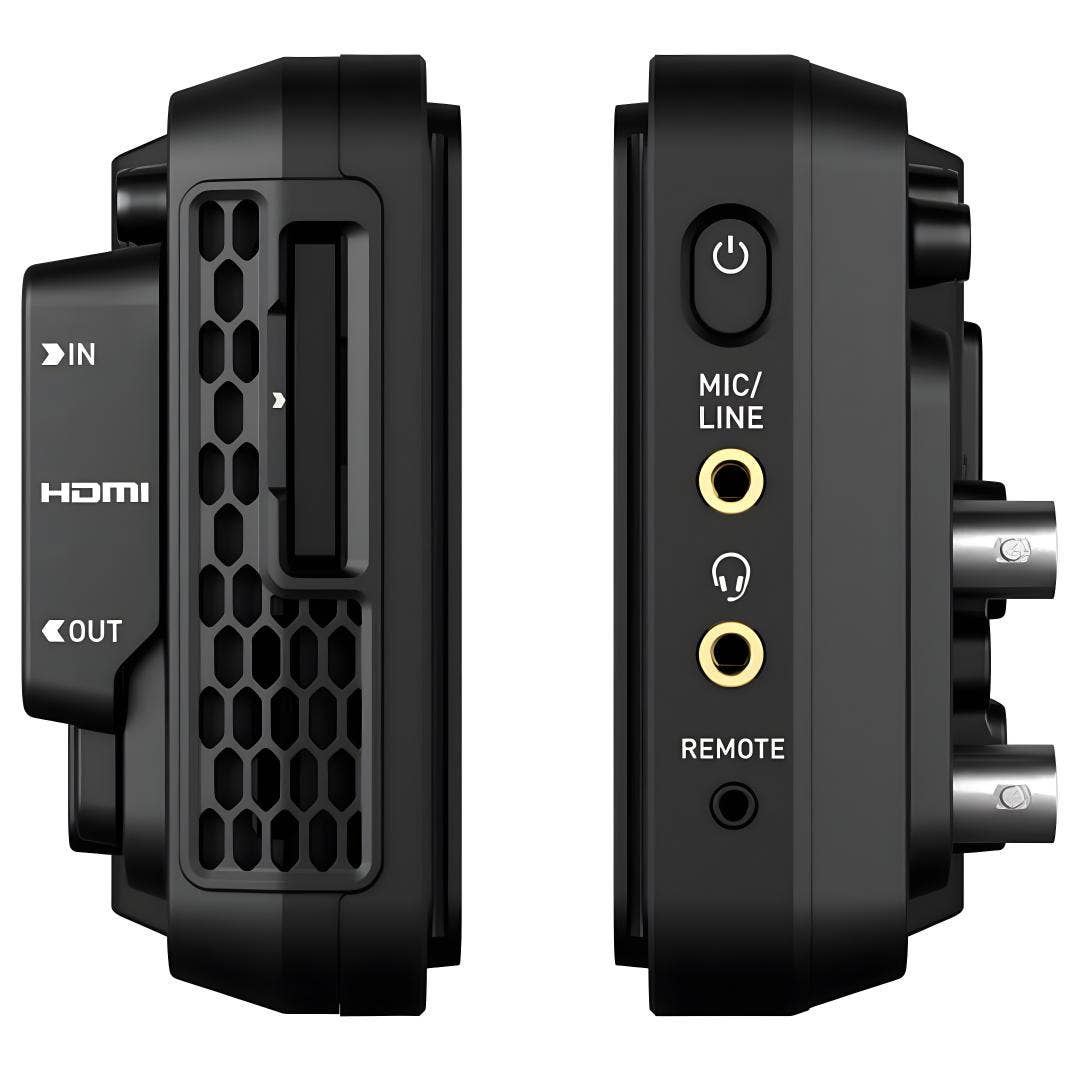

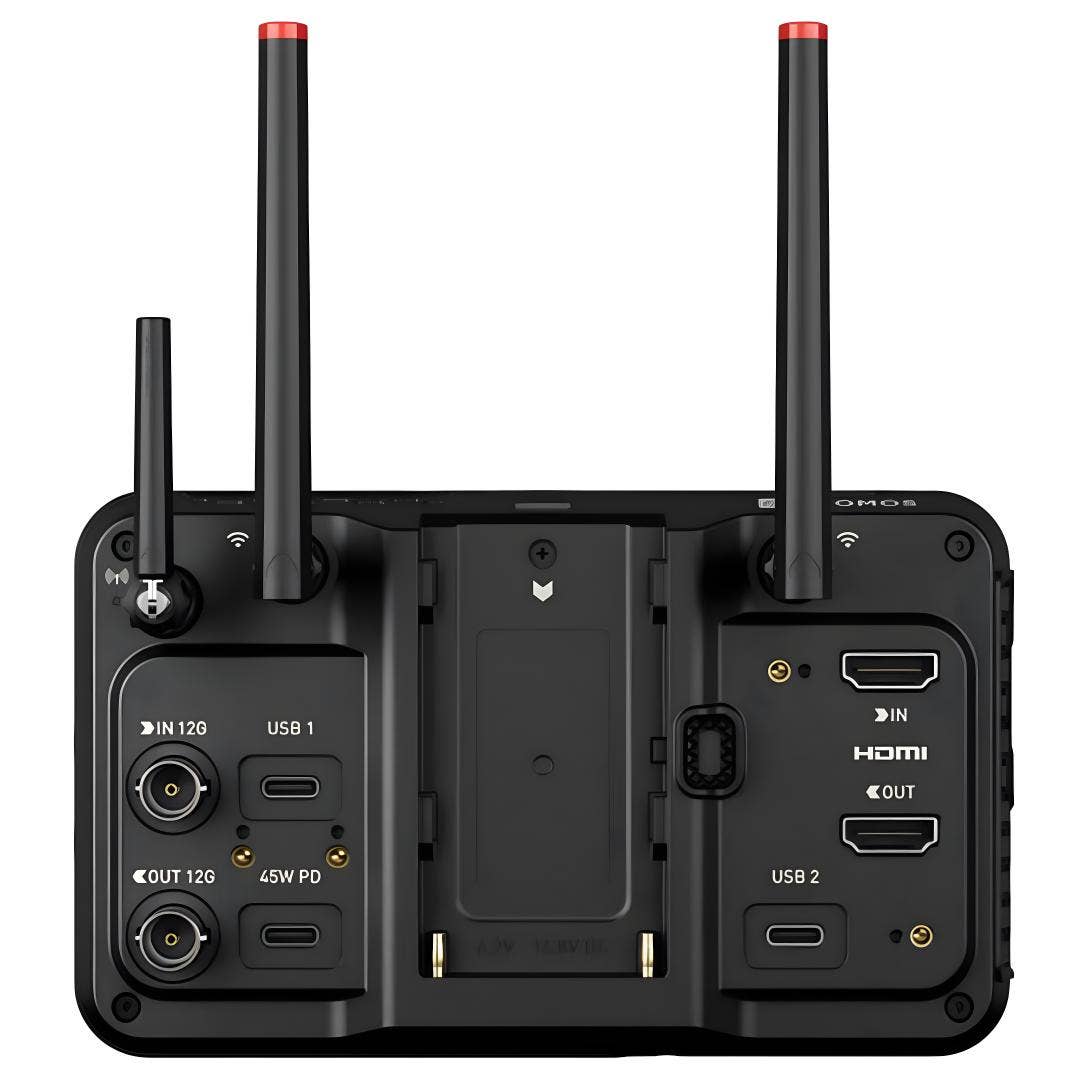

Supporting HDMI and 12G-SDI connections, the Ninja TX accommodates a broad range of cameras and production setups. HDMI input handles resolutions up to 8K at 30 fps, 4K at 60 fps, and 1080p at 120 fps, while both HDMI and SDI ports include loop-through functionality for routing signals to additional devices.

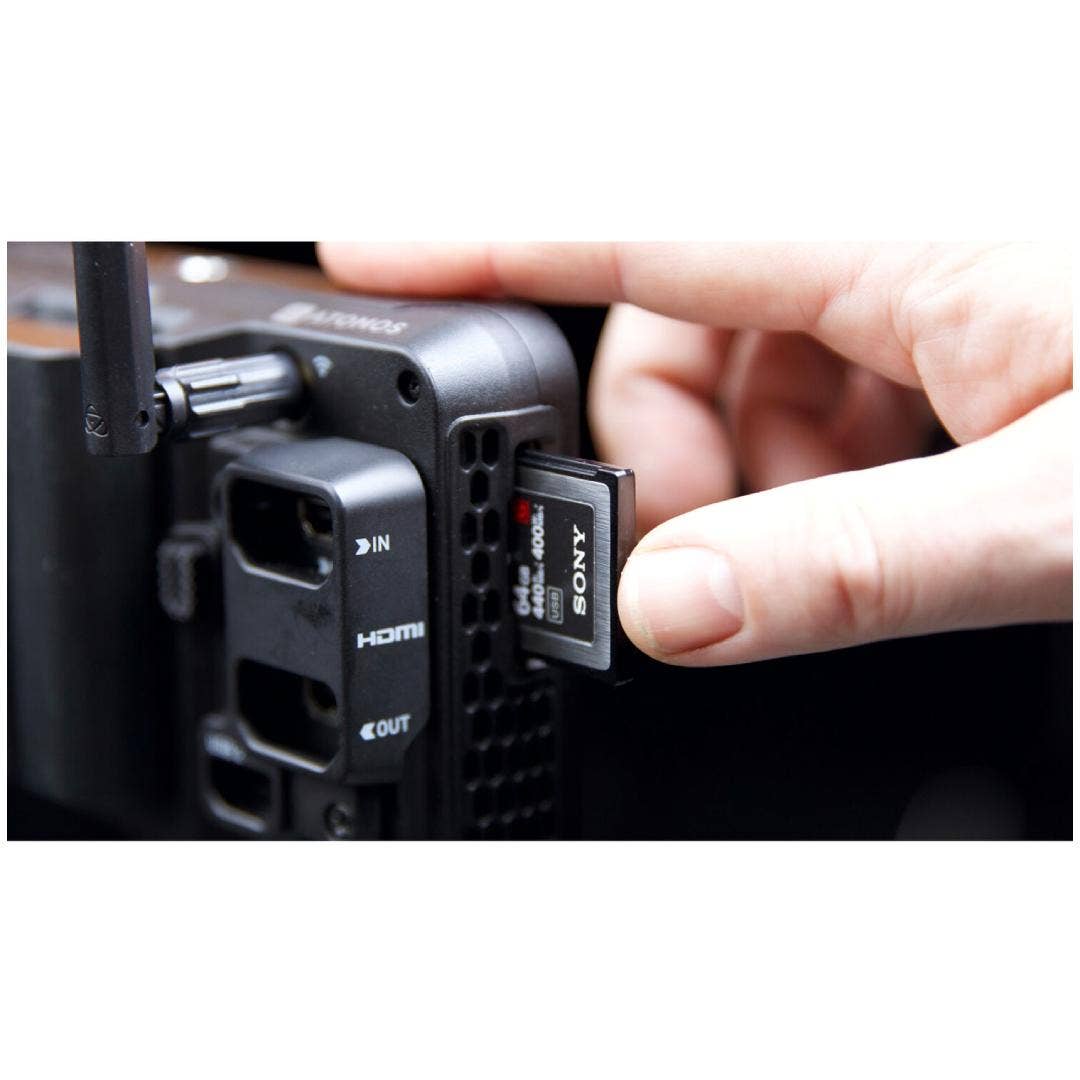

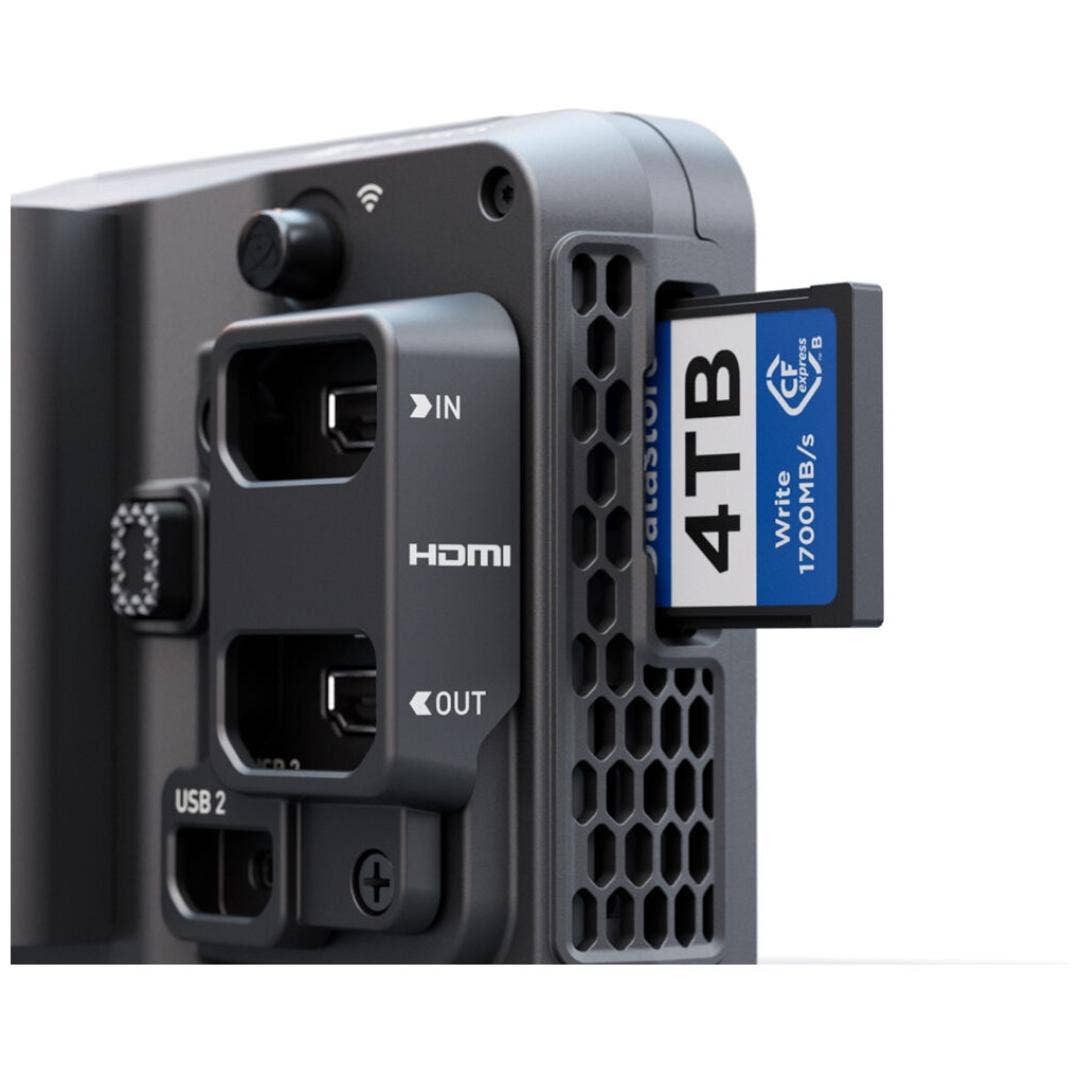

Cross conversion between HDMI and 12G-SDI ensures compatibility across multiple formats. The recorder features a CFexpress Type B slot and dual USB-C recording outputs, delivering rapid data transfers via PCIe and NVMe protocols. These USB-C ports also enable calibration, LUT uploads, audio device connections, and firmware updates.

Power Management and Monitoring Tools

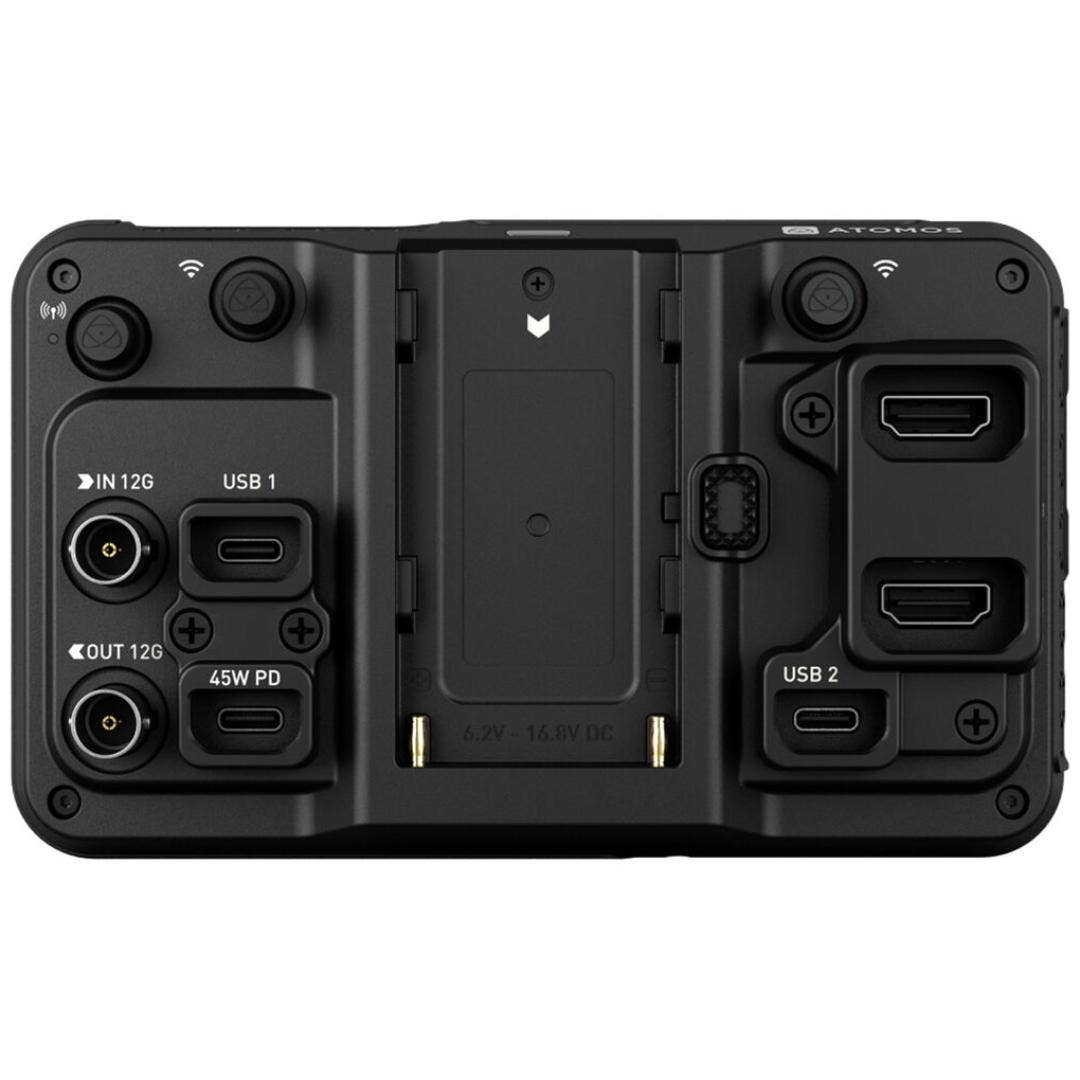

Power flexibility is provided through an L-series battery plate compatible with NP-F batteries, with an optional eliminator available for continuous DC operation. A USB-C port supports 30W PD power delivery, offering versatile powering options for extended shoots.

The Ninja TX also includes a comprehensive suite of monitoring tools, such as focus peaking, zebras, false colour modes, waveforms, vectorscope, and LUT support, along with anamorphic de-squeeze functionality.

These tools allow precise control over focus, exposure, and framing, ensuring professional results in any production environment.

Support for All Major Codecs

The Atomos Ninja TX 5-Inch Monitor-Recorder supports all major codecs such as ProRes RAW, DNx, and H.265. This feature ensures compatibility with a wide range of formats, making it a versatile tool for various recording needs.

Whether you're working on a professional production or a personal project, this feature ensures that you can capture and process high-quality footage in the format that suits your needs.
