Atomos TX-RX 4K/HD Wireless Video Monitoring Set - Transmitter & Receiver

Technical Details

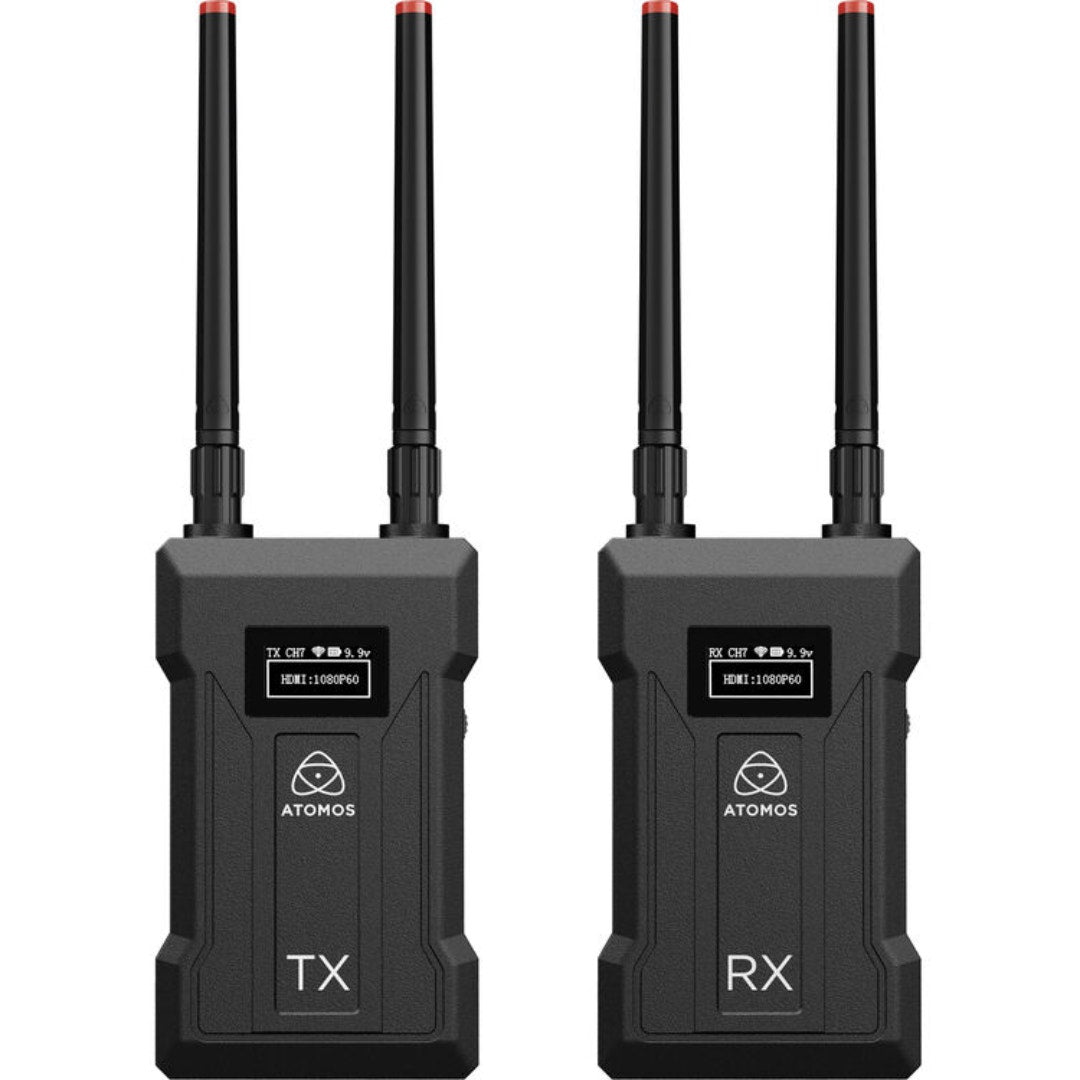

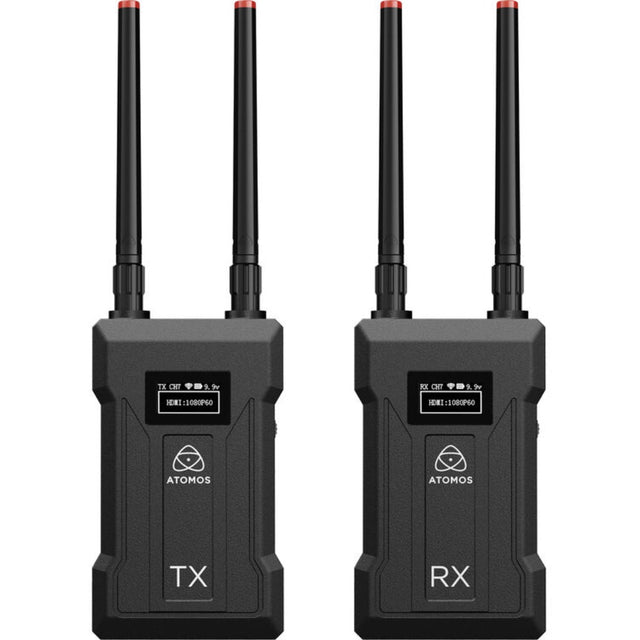

Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter & Receiver Set Incorporate 4K30 wireless video transmission into your production with the versatile TX 4K/HD Wireless Video Transmitter & Receiver Set from Atomos.

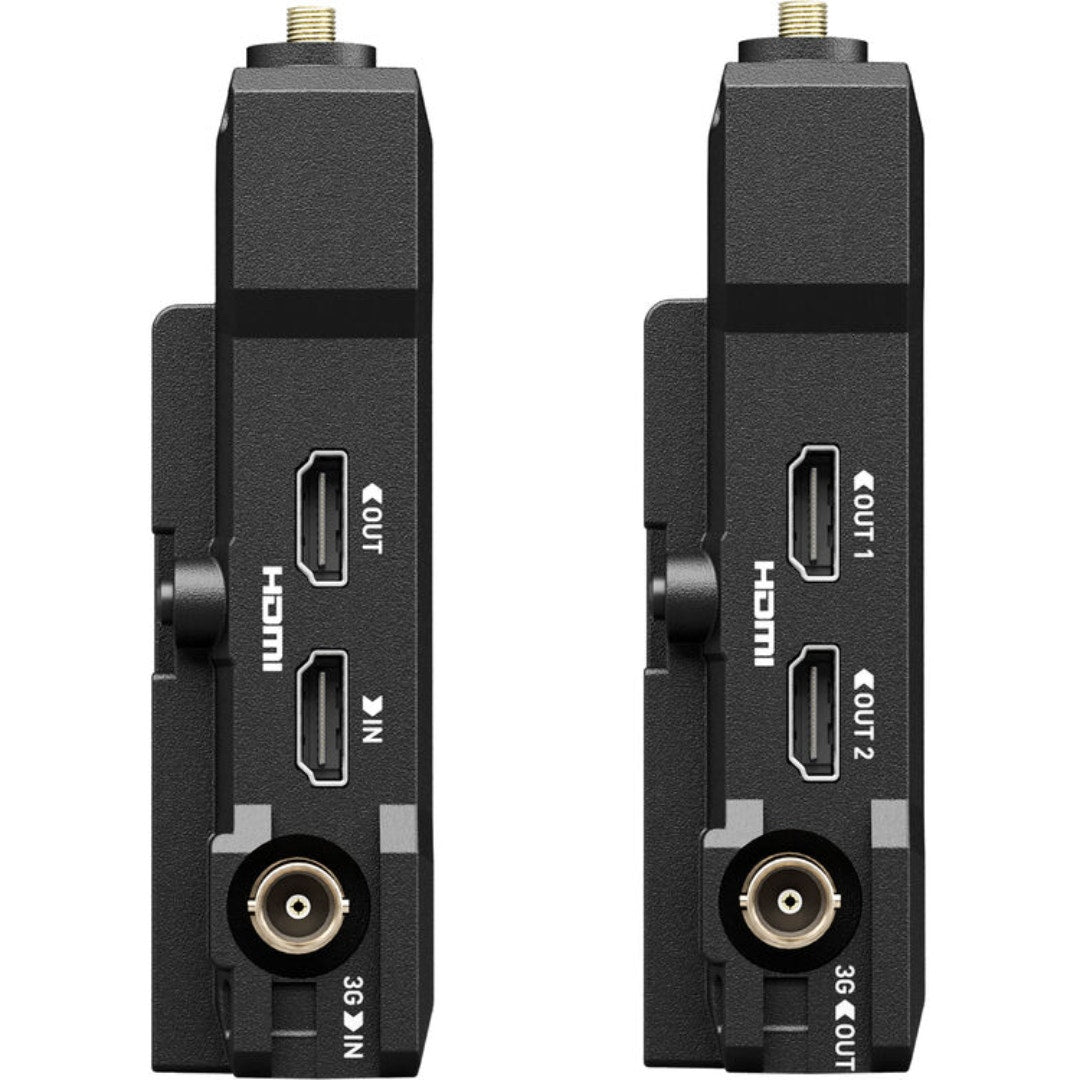

This comprehensive kit comprises a transmitter and receiver unit. The transmitter is equipped with HDMI and SDI inputs, along with an HDMI loop output, whilst the receiver boasts dual HDMI outputs and a single SDI output.

The transmitter has the capability to transmit to a maximum of four Atomos receivers, covering a line-of-sight distance of up to 985'. Moreover, it can transmit directly to Android and iOS devices, offering comprehensive mobile monitoring. The units utilise the free-to-use 5 GHz frequency band for wireless transmission without interference.

They support up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI ports. Beyond the USB-C port, the units can be powered using a DC power adapter or an L-series type battery, thanks to the integrated battery plates.

Key Features

• 4K30 Wireless Video Transmission
• HDMI and SDI Inputs
• Transmits Directly to Android and iOS Devices
• Utilises the Free-to-use 5 GHz Frequency Band
• Powered Using a DC Power Adapter or an L-series Type Battery

Atomos TX 4K/HD Wireless Video Transmitter

Add 4K30 wireless video transmission to your production using the versatile TX 4K/HD Wireless Video Transmitter from Atomos.

The transmitter provides HDMI and SDI inputs and features an HDMI loop output. It can transmit to up to four compatible Atomos receivers up to a 300m line-of-sight distance away. It can also transmit directly to Android and iOS devices for complete mobile monitoring.

The unit transmits using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI input. In addition to the USB-C port, the unit can be powered using a DC power adaptor or an L-series type battery using the integrated battery plate.

Atomos RX 4K/HD Wireless Video Receiver

Add 4K30 wireless video transmission to your production using the versatile RX 4K/HD Wireless Video Receiver from Atomos. The receiver provides two HDMI outputs and one SDI output. It can receive a line-of-sight 4K30 video signal from an Atomos transmitter up to 300m away, and four receivers can receive video simultaneously.

The unit receives video using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI output. In addition to the USB-C port, the unit can be powered using a DC power adaptor or an L-series type battery using the integrated battery plate.
