Atomos ZATO Connect Streaming Device

Technical Details

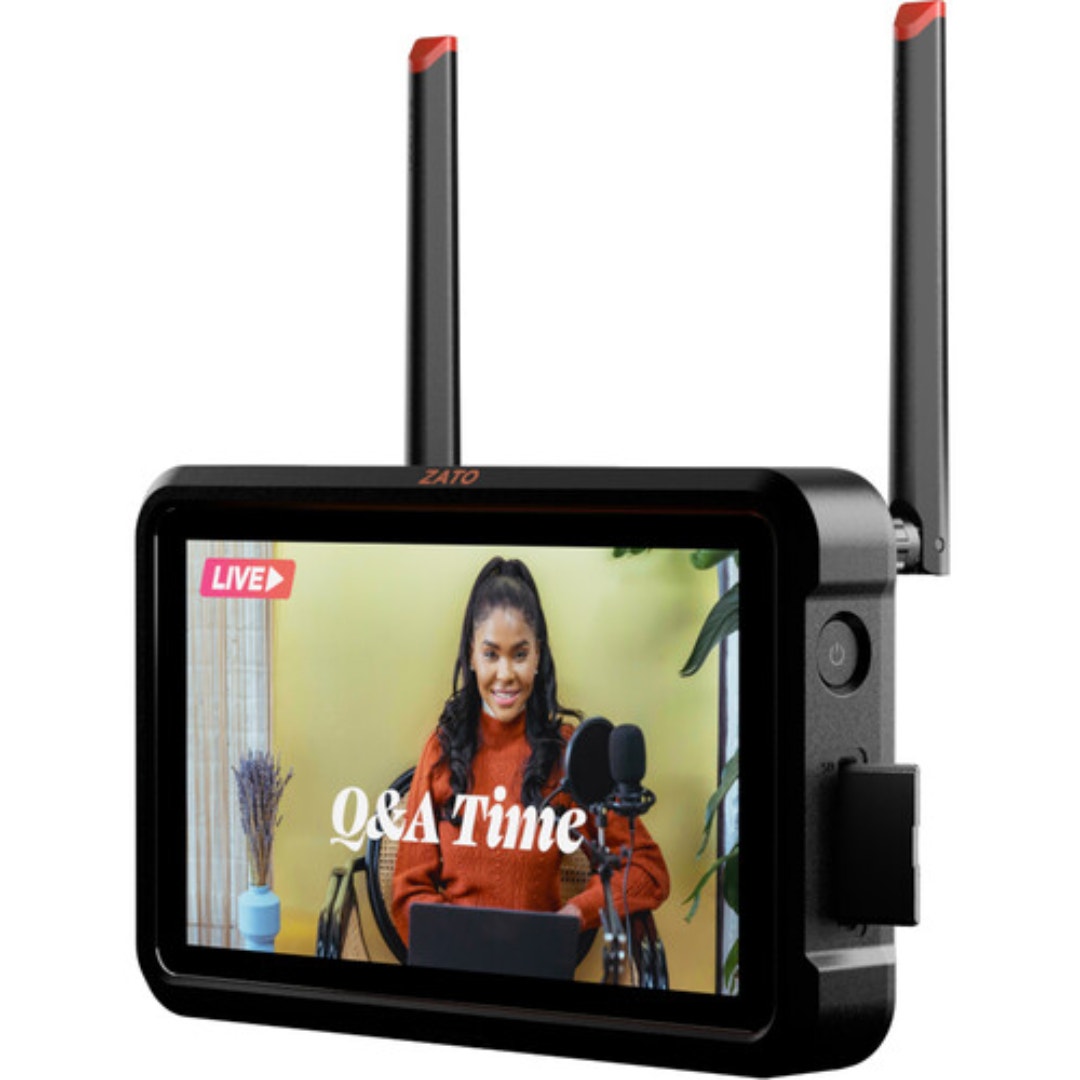

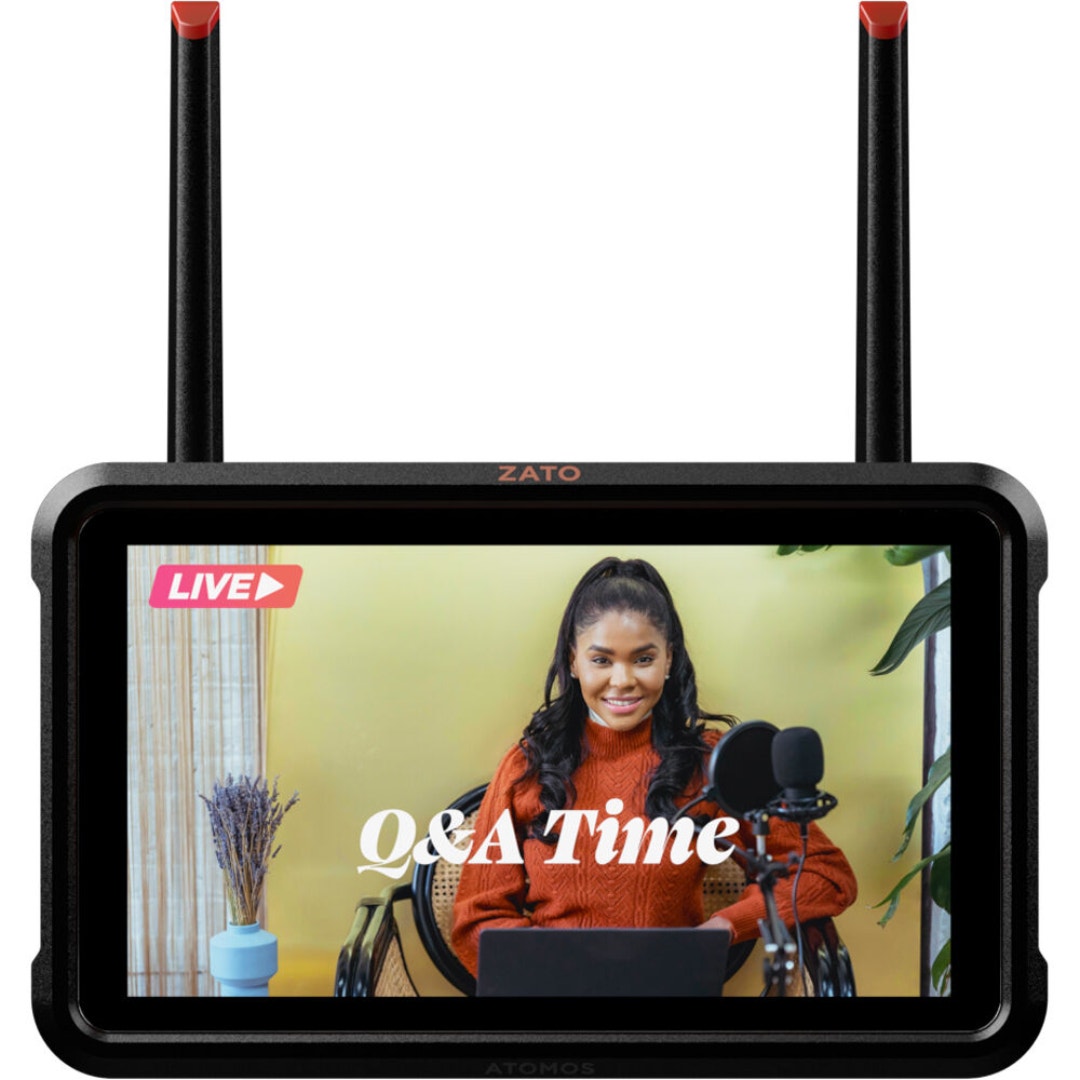

Atomos ZATO Connect. The Atomos ZATO CONNECT is an adaptable piece of kit, facilitating concurrent streaming and recording of HDMI and USB video. Its 13.2 cm touchscreen display boasts a resolution of 1920 x 1080, acting as a portal to the ATOMOS Cloud Studio.

With Wi-Fi 5, Gigabit Ethernet, and cellular hotspot connectivity, it provides a fully tailorable livestreaming experience.

The user can effortlessly switch between video sources and blend audio inputs, all within a compact design that's perfect for DSLR camera rigs. The ZATO CONNECT also serves as a Camera to Cloud machine, syncing with Adobe Camera to Cloud via Frame.io for direct cloud streaming and post-production editing.

It accommodates local H.264 backups on SD cards up to 128GB or cloud uploads for real-time collaboration.

It's compatible with HDMI and USB UVC cameras, and the ZATO CONNECT transmutes feeds for use with Microsoft Teams, Slack, Zoom, and other conferencing platforms.

Key Features

• Concurrent streaming and recording of HDMI and USB video
• 13.2 cm touchscreen display with a resolution of 1920 x 1080
• Wi-Fi 5, Gigabit Ethernet, and cellular hotspot connectivity
• Compatibility with HDMI and USB UVC cameras
• Accommodates local H.264 backups on SD cards up to 128GB

Equipped with Wi-Fi 5 and Gigabit Ethernet via USB-C, the ZATO CONNECT ensures reliable livestreaming from virtually anywhere, whether via home/work networks or cellular hotspots.

It streams to platforms like Facebook Live, Twitch, or YouTube through ATOMOS Cloud Studio, blending live and recorded content effortlessly.

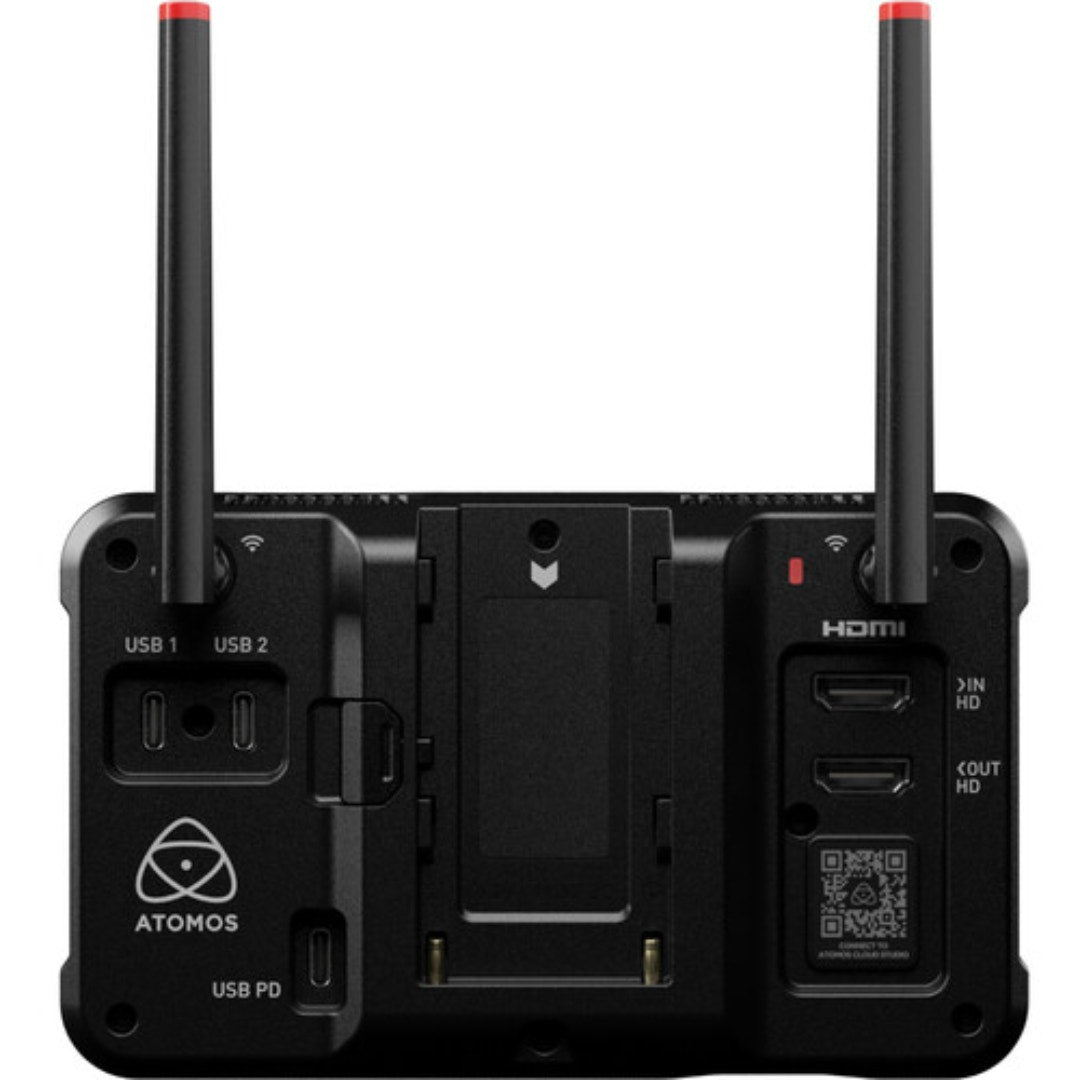

The 13.2 cm SuperAtom IPS LCD touchscreen offers a 178° viewing angle and 1000 cd/m² brightness, ensuring visibility indoors and outdoors. Comprehensive I/O includes one HDMI input, one HDMI output, and two USB Type-C ports, supporting 1080p60 HDMI and 1080p30 USB video recording.

Power options include an L-series battery plate (compatible with batteries up to 7.6V), USB-C PD input, DC input via a locking jack, or D-Tap.

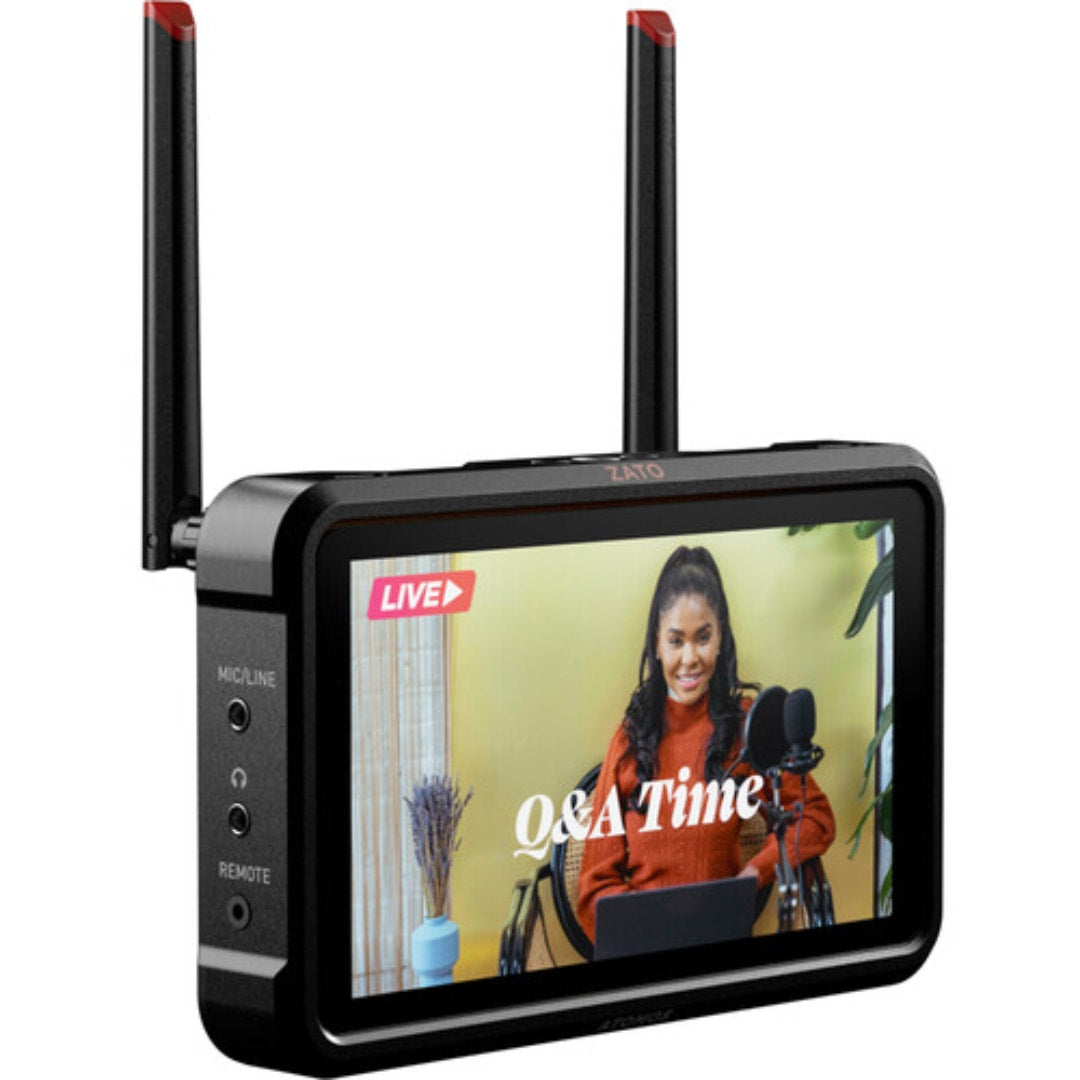

The built-in audio mixer allows for 3.5mm microphone or line input integration, while AtomOS Lite software provides stream configuration, source switching, and effects like overlays and frame guides. Additional monitor assist functions include display flip, grid markers, and zoom.
