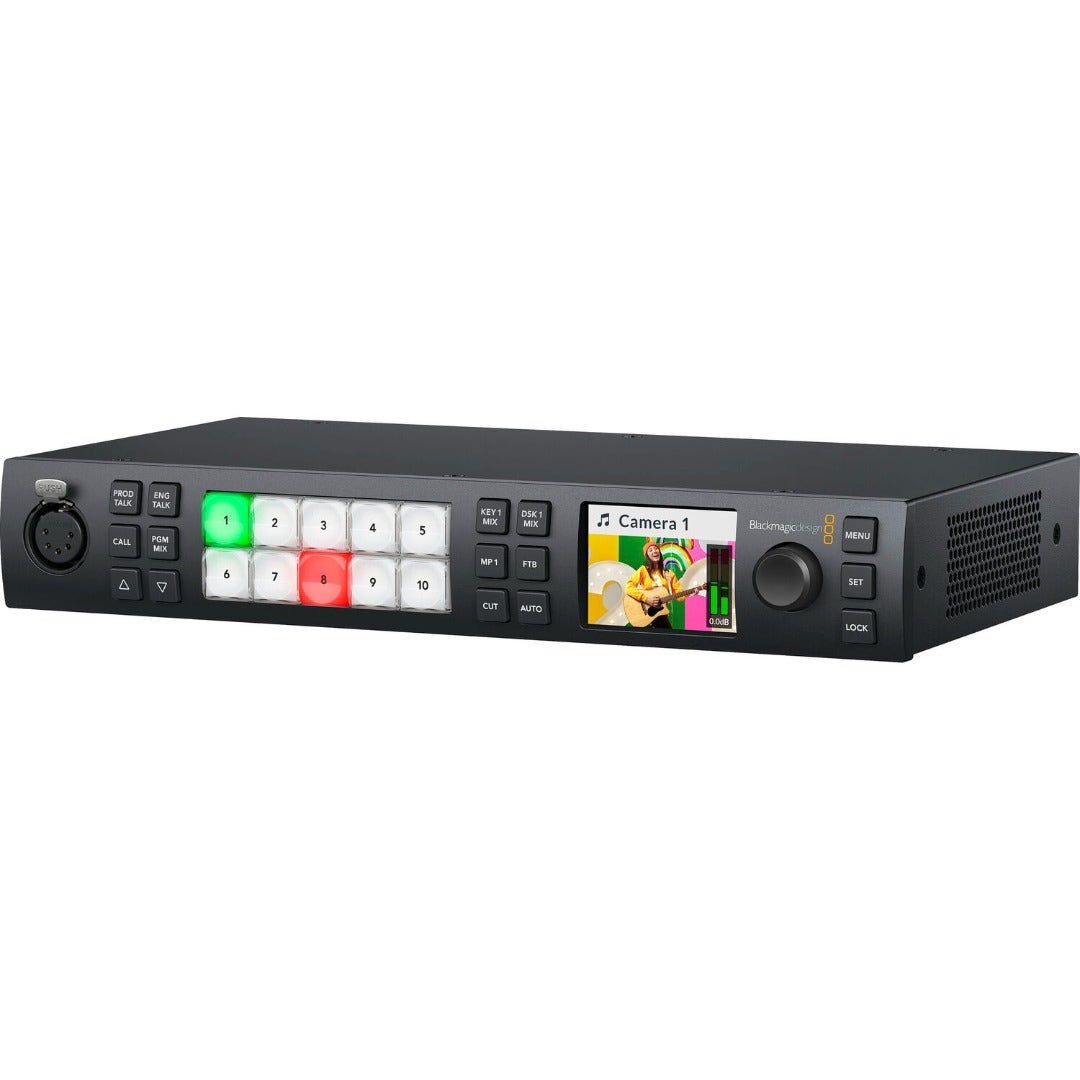

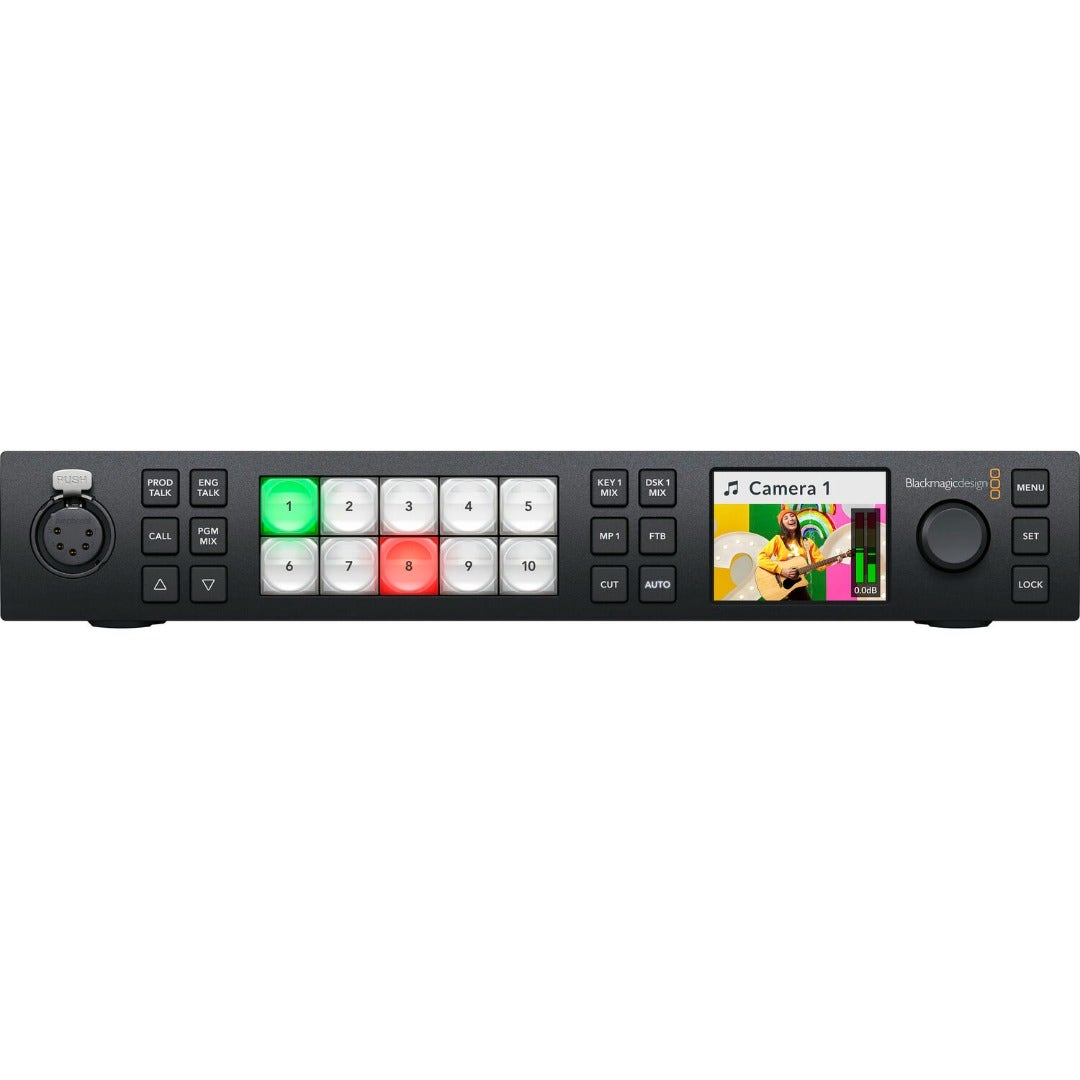

Blackmagic Design ATEM 1 M/E Constellation - HD
Our price $1,460.00
Please fill in the details below and we will be in touch shortly.
Blackmagic Design ATEM 1 M/E Constellation - HD
Blackmagic Design ATEM 1 M/E Constellation - HD is backordered and will ship as soon as it is back in stock.
At a glance
The Blackmagic Design ATEM 1 M/E Constellation HD is an accessory from Blackmagic Design.
Description
Description
Key Features
- Supports up to 10 individual 3G/HD-SDI inputs
- In-built Fairlight audio mixer
- Real-time upstream and downstream keyers and effects
Video inputs and outputs

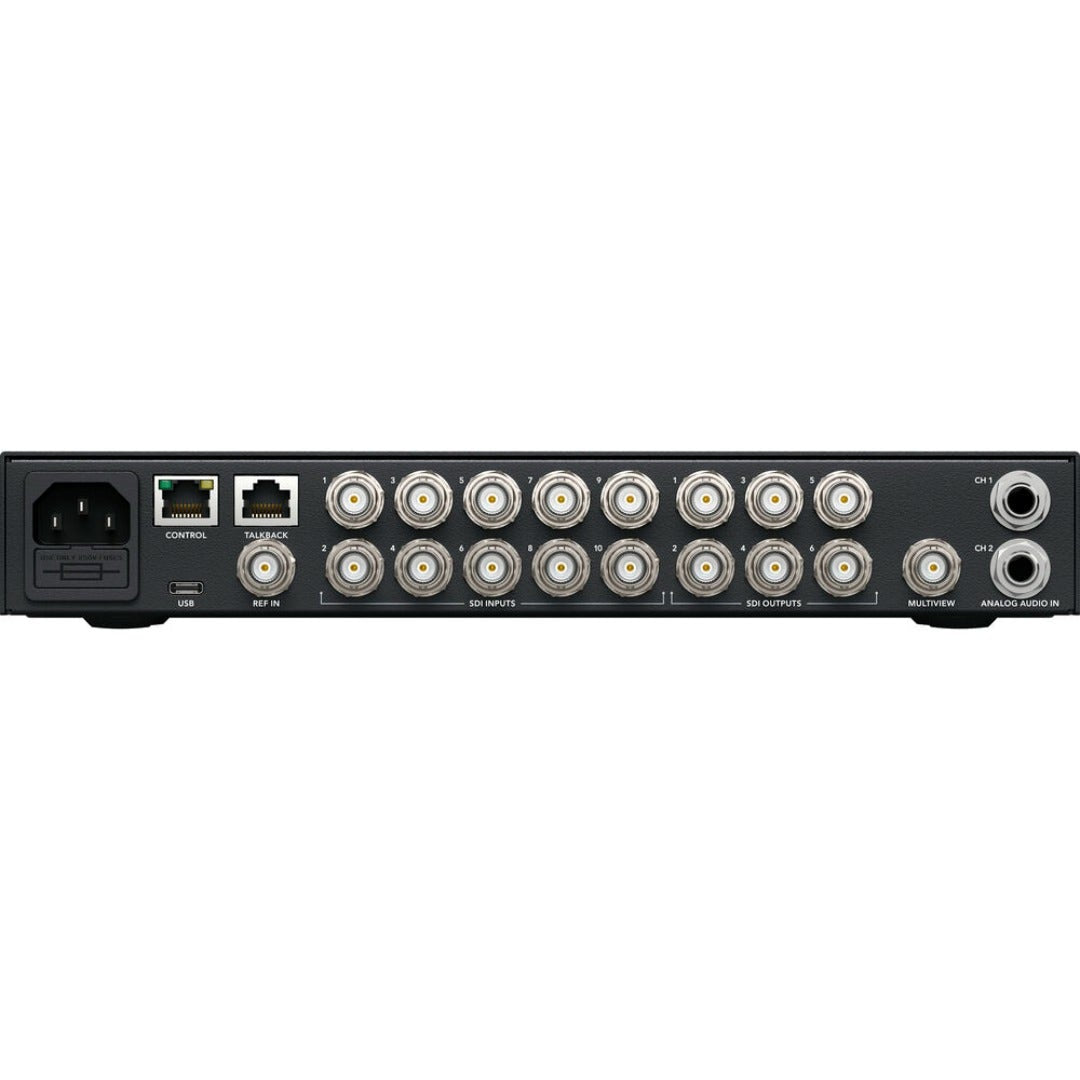

The ATEM 1 M/E Constellation HD has 10 video inputs with SDI rates of 1.5G and 3G. Any of its 6 video outputs can be set as an SDI aux, preview or program output. A USB-C webcam output supports 720p or 1080p at the program frame rate. Its physical installation is 2/3 rack unit width and 1 rack unit height.
Audio
The switcher carries 8 channels of embedded audio on SDI inputs and 16 channels of embedded audio on SDI outputs. Its built-in 28 channel audio mixer includes a 6 band parametric EQ, with expander, gate, compressor and limiter processing.
Multi view, keying and media
The multi view is configurable to 16, 13, 10, 7 or 4 up views, and can monitor program, preview, inputs, media players, DSK and clean feed. It has 4 upstream keyers, 1 downstream keyer, 4 advanced chroma keyers and 1 DVE. The media pool holds 20 still images, and media player clips run to 800 frames at 1080 HD.
Talkback and control
Talkback uses a 5 pin XLR talkback connector, plus an RJ45 port for 3rd party talkback systems. The control panel connects by Ethernet, either directly to the chassis or over a network.
Power and operating conditions
The switcher draws 36W from one internal 100 to 240 AC supply, and operates between 0°C and 40°C.
What's in the box
- ATEM 1 M/E Constellation HD
- Welcome wallet with QR code for software download
Why choose it
- 10 video inputs and 6 SDI outputs in a 1 rack unit high chassis
- USB-C webcam output at 720p or 1080p
- Four advanced chroma keyers and a 28 channel audio mixer
- Ethernet control panel connection, direct or over a network
