Blackmagic Design ATEM - SDI

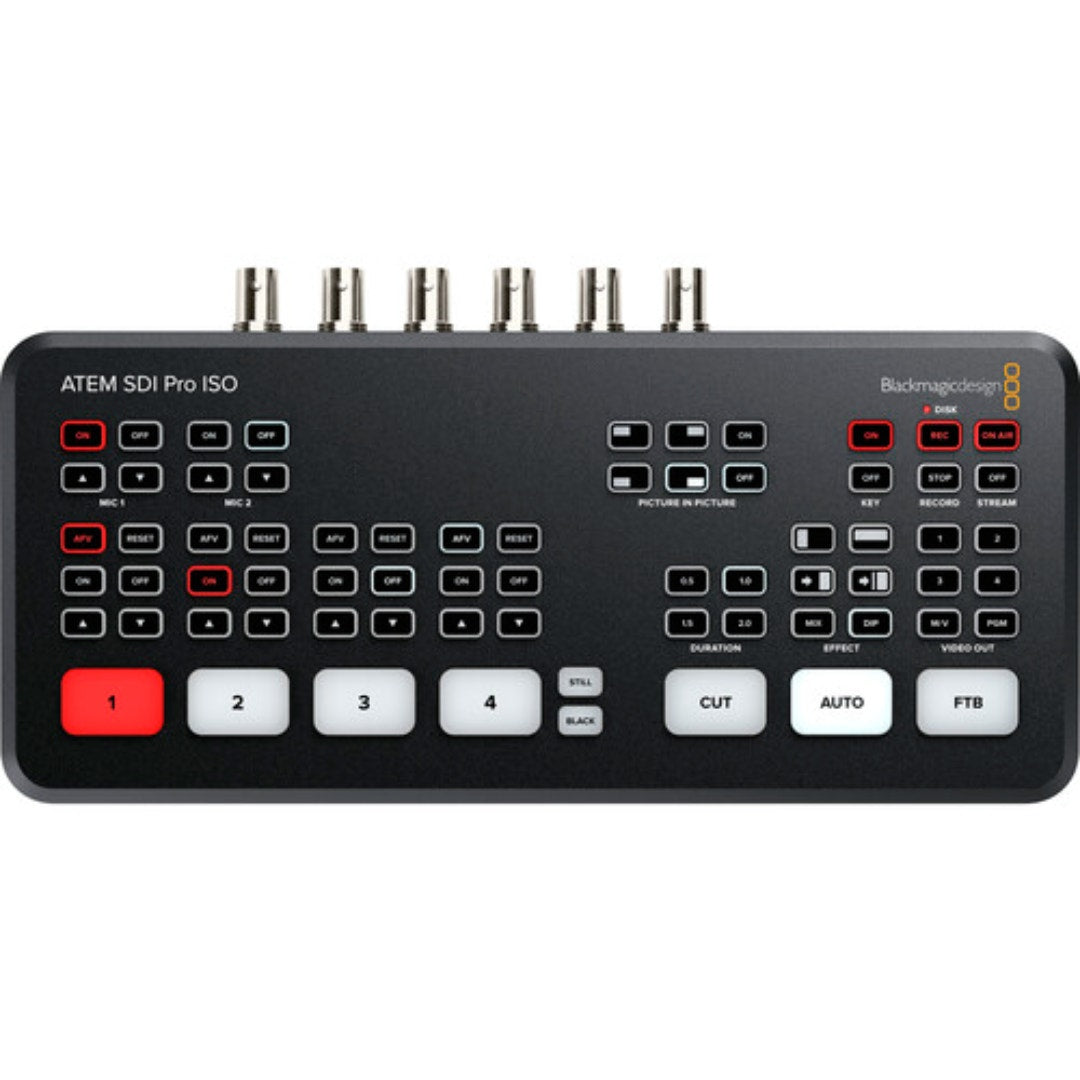

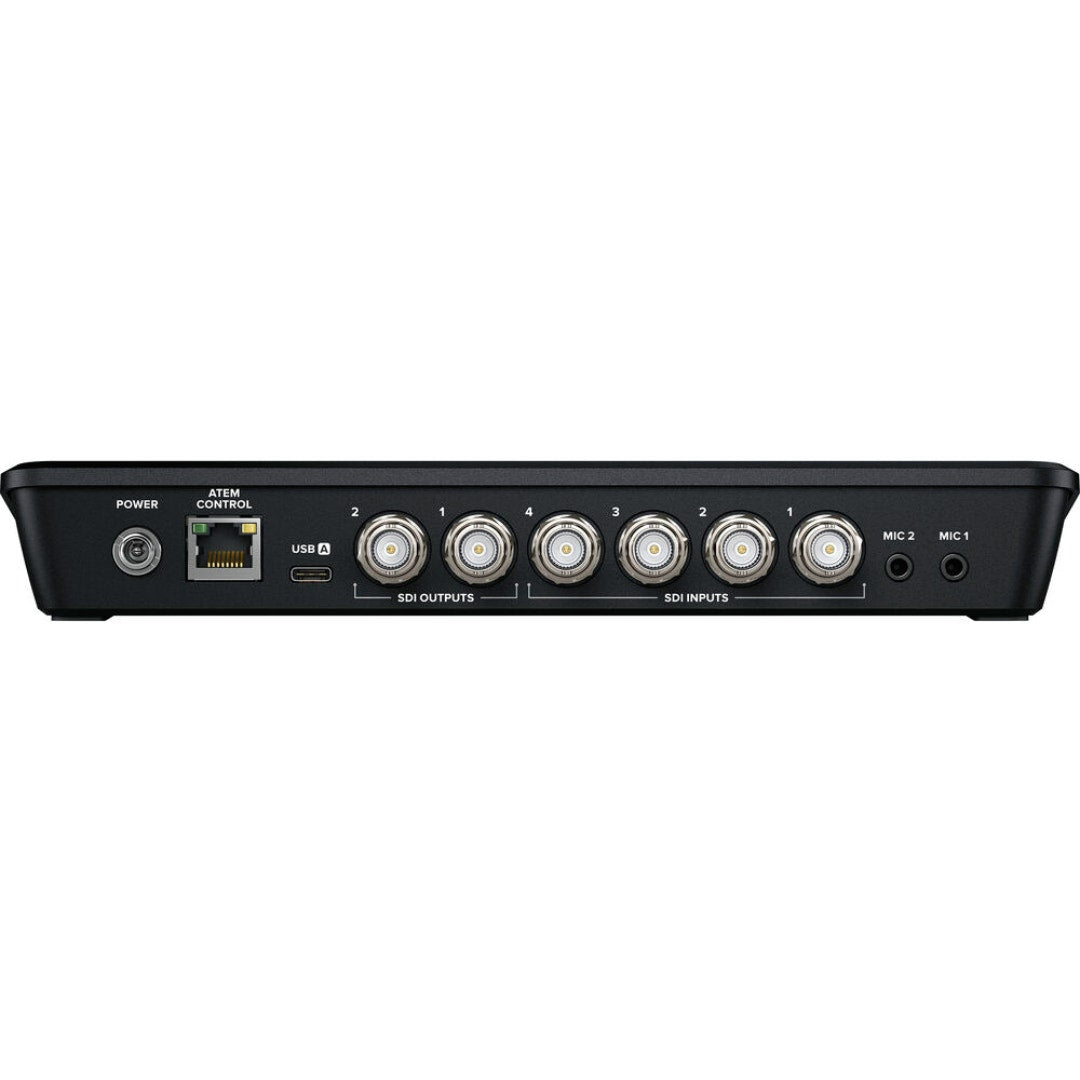

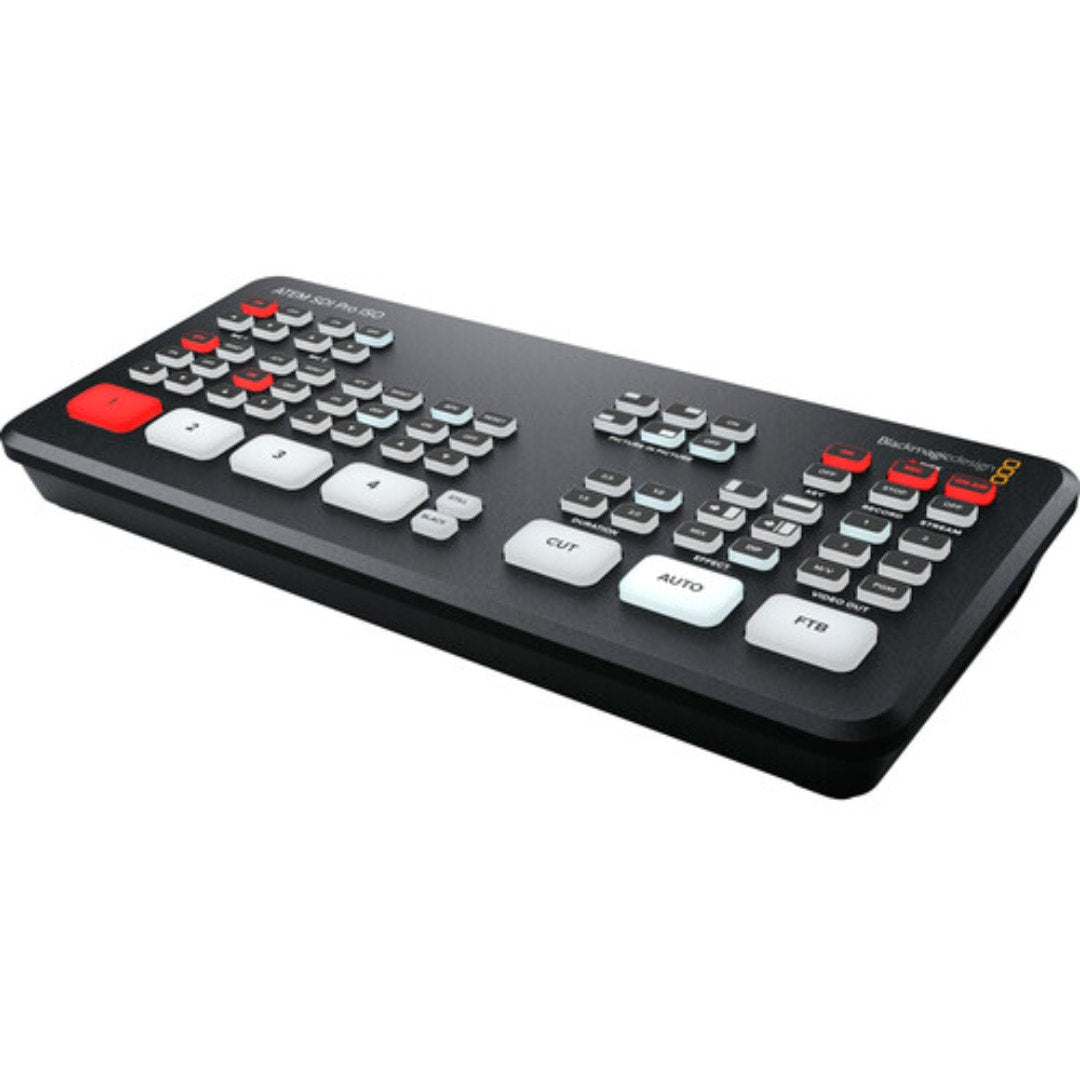

Technical Details: Blackmagic Design ATEM SDI The Blackmagic Design ATEM SDI Pro ISO Switcher, a compact live-production switcher, boasts four inputs and an integrated control panel, making it a prime choice for multi-camera HD live streaming through Ethernet. It features a USB output for recording the program output and individual 3G-SDI inputs to an external USB drive (not included). The switcher also captures both embedded and analogue audio inputs, generating a DaVinci Resolve project file for post-production tweaks.

With dimensions of 225 mm x 135 mm x 45 mm, it mirrors the footprint of the ATEM Mini Pro, whilst incorporating ISO recording capabilities. Highlight features encompass upstream and downstream keyers, a sophisticated chroma keyer, two linear/luma keyers, a DVE transition keyer, and compatibility for 20 stills in formats such as PNG, TGA, BMP, JPEG, and TIFF. The ATEM Software Control Panel facilitates monitoring of data rates, audio levels, and streaming status, with optional integration for global streaming via a Blackmagic Design Streaming Bridge.

Key Features: Four inputs and an integrated control panel USB output for recording the program output Individual 3G-SDI inputs to an external USB drive Upstream and downstream keyers ATEM Software Control Panel for monitoring of data rates, audio levels, and streaming status The switcher offers versatile transitions, including cut, mix, dip, wipe, and DVE effects, allowing dynamic live production. Its upstream keyer supports luma, linear, chroma, and pattern keying for layered video compositions, whilst the downstream keyer overlays graphics onto the programme output. The built-in audio mixer provides precise control over six inputs with Fairlight enhancements like compression and EQ.

A 3G-SDI output can be configured for multiview monitoring, displaying programme feeds, inputs, and audio meters. The media player stores up to 20 graphics for seamless transitions or overlays. Included are the switcher, a 12 VDC power supply with international adaptors, and a one-year warranty.

Supported formats include 1080p HD, with XML customisation and tally light control for BMPCC 6K/4K cameras. Top Three Features: Blackmagic Design ATEM SDI Four inputs and an integrated control panel: This feature allows for seamless multi-camera HD live streaming, making the switcher a prime choice for live productions. The integrated control panel provides easy access and control over the switcher's functionalities, enhancing the user experience.

USB output for recording the program output: This feature provides the convenience of recording the program output directly to an external USB drive. This allows for easy storage and transfer of the recorded content, making post-production processes more efficient. ATEM Software Control Panel: This feature facilitates real-time monitoring of data rates, audio levels, and streaming status.

It also offers optional integration for global streaming via a Blackmagic Design Streaming Bridge, providing users with comprehensive control over their live productions. Our expert's opinion about the Blackmagic Design ATEM SDI The Blackmagic Design ATEM SDI Pro ISO Switcher is a compact live-production switcher that offers a range of advanced features. With four inputs and an integrated control panel, it is ideal for multi-camera HD live streaming.

The switcher also features a USB output for recording the program output and individual 3G-SDI inputs to an external USB drive. The ATEM Software Control Panel facilitates real-time monitoring of data rates, audio levels, and streaming status, providing users with comprehensive control over their live productions. With its compact dimensions and advanced features, the Blackmagic Design ATEM SDI Pro ISO Switcher is a prime choice for professional live productions.
