Blackmagic DeckLink Duo 2 Mini

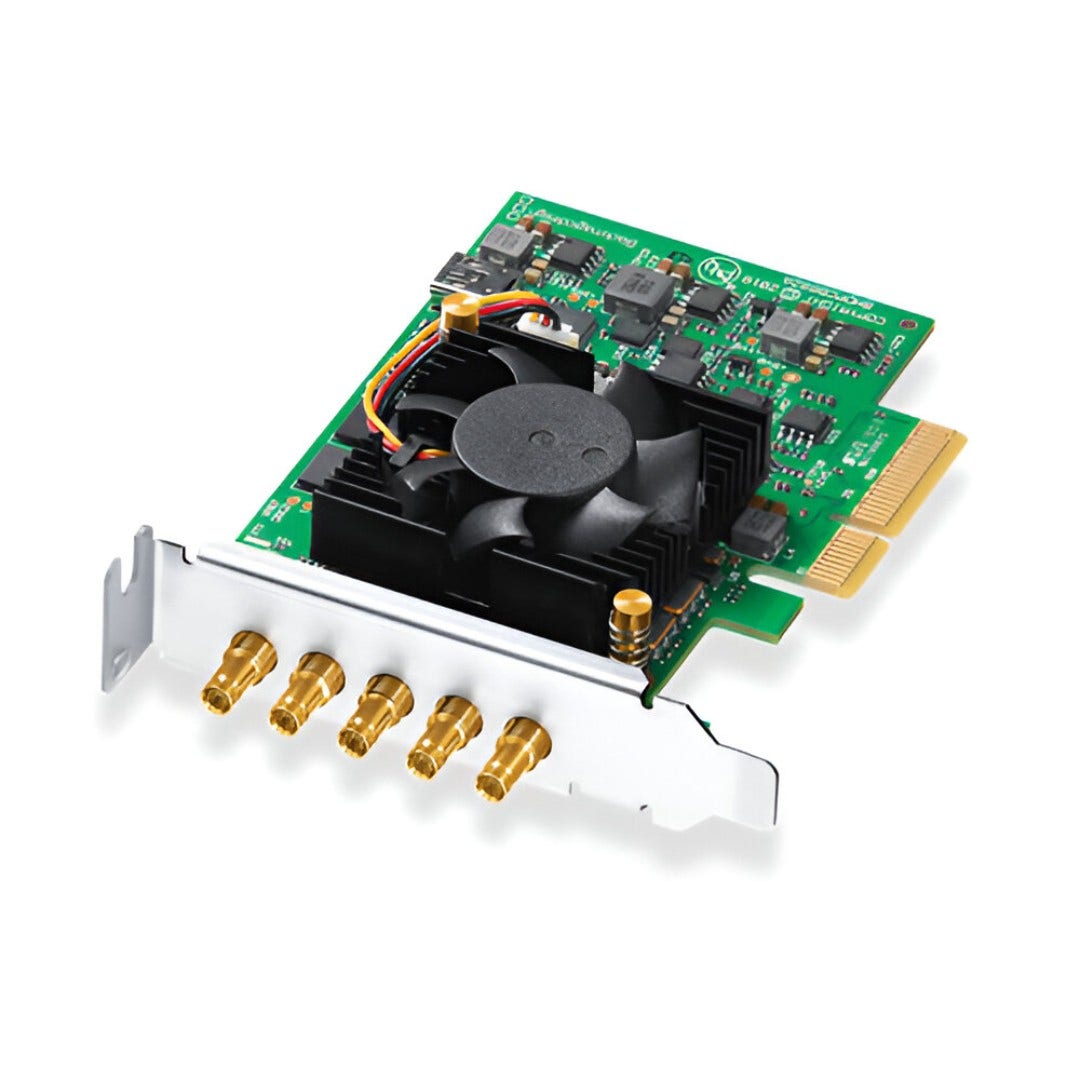

Technical Details: Blackmagic Design DeckLink Duo 2 Mini The Blackmagic Design's DeckLink Duo 2 Mini is a compact PCIe capture and playback card, specifically engineered for high-definition video and audio applications. This includes digital signage, real-time capture, and media playback. It boasts four bidirectional mini BNC SDI inputs/outputs, supporting 3G/HD/SD-SDI signals and enabling resolutions ranging from SD to 1080p60.

The card comes with a BNC reference input and supports 16 channels of 48 kHz 24-bit embedded audio. It's compatible with macOS, Windows, and Linux, and offers 8-/10-bit 4:2:2 capture/playback in all modes up to 1080p30, 12-bit 4:4:4 playback up to 1080p30. Additionally, it features hardware-based HD/SD up/downconversion, and cross conversion between 720p and 1080p.

Technical Details: Blackmagic Design DeckLink Duo 2 Mini The Blackmagic Design's DeckLink Duo 2 Mini is a compact PCIe capture and playback card, specifically engineered for high-definition video and audio applications. This includes digital signage, real-time capture, and media playback. It boasts four bidirectional mini BNC SDI inputs/outputs, supporting 3G/HD/SD-SDI signals and enabling resolutions ranging from SD to 1080p60.

The card comes with a BNC reference input and supports 16 channels of 48 kHz 24-bit embedded audio. It's compatible with macOS, Windows, and Linux, and offers 8-/10-bit 4:2:2 capture/playback in all modes up to 1080p30, 12-bit 4:4:4 playback up to 1080p30. Additionally, it features hardware-based HD/SD up/downconversion, and cross conversion between 720p and 1080p.

Key Features: Four bidirectional mini BNC SDI inputs/outputs Supports 16 channels of 48 kHz 24-bit embedded audio Compatible with macOS, Windows, and Linux 8-/10-bit 4:2:2 capture/playback in all modes up to 1080p30, 12-bit 4:4:4 playback up to 1080p30 Hardware-based HD/SD up/downconversion, and cross conversion between 720p and 1080p The DeckLink Duo 2 Mini supports uncompressed and compressed video formats, including ProRes, AVCHD, XDCAM, and DNxHD, ensuring pixel-perfect quality for tasks like keying, colour correction, and compositing. It integrates seamlessly with major software applications such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, and more. Additional compatibility extends to broadcast, live production, and streaming software like Telestream Wirecast, vMix Live, OBS Studio, and CasparCG Server.

Drivers and utilities are provided via an included SD card, making setup straightforward across supported platforms. Top Three Features: Blackmagic Design DeckLink Duo 2 Mini Four bidirectional mini BNC SDI inputs/outputs: This feature allows for versatile connectivity options, accommodating a wide range of devices and setups. It ensures high-quality signal transmission, making it ideal for professional video production environments.

Supports 16 channels of 48 kHz 24-bit embedded audio: This ensures high-quality audio capture and playback, enhancing the overall multimedia experience. It's perfect for applications that require superior audio fidelity. Compatible with macOS, Windows, and Linux: This broad compatibility ensures that the DeckLink Duo 2 Mini can be seamlessly integrated into virtually any workflow.

It's an ideal choice for professionals who work across multiple platforms. Our expert's opinion about the Blackmagic Design DeckLink Duo 2 Mini The Blackmagic Design DeckLink Duo 2 Mini is a compact yet powerful PCIe capture and playback card. It's engineered for high-definition video and audio applications, making it a versatile choice for professionals.

With its robust connectivity options, high-quality audio support, and broad compatibility, it's a reliable solution for a range of multimedia tasks. Whether you're working on digital signage, real-time capture, or media playback, the DeckLink Duo 2 Mini delivers exceptional performance.
