Blackmagic Design HyperDeck Studio - HD Mini

Technical Details

Blackmagic Design HyperDeck Studio HD Mini The Blackmagic Design HyperDeck Studio HD Mini, a compact, broadcast-standard recorder and playback deck, is engineered for portability and versatility. Its dimensions are a mere 1 RU in height and a third of a rack in width, with power options including 100-240 VAC or a supplementary 12 VDC supply for mobile use.

It's equipped with a single 3G-SDI input, HDMI and 3G-SDI outputs, and a USB-C webcam output, facilitating concurrent input, recording, and streaming.

It supports reference and timecode in/out, ensuring seamless integration into broadcast workflows and enabling ISO recordings from multiple cameras in perfect sync for live and post-production. It features two SD card slots for virtually limitless recording time, with the added option of using USB disks via the USB-C port.

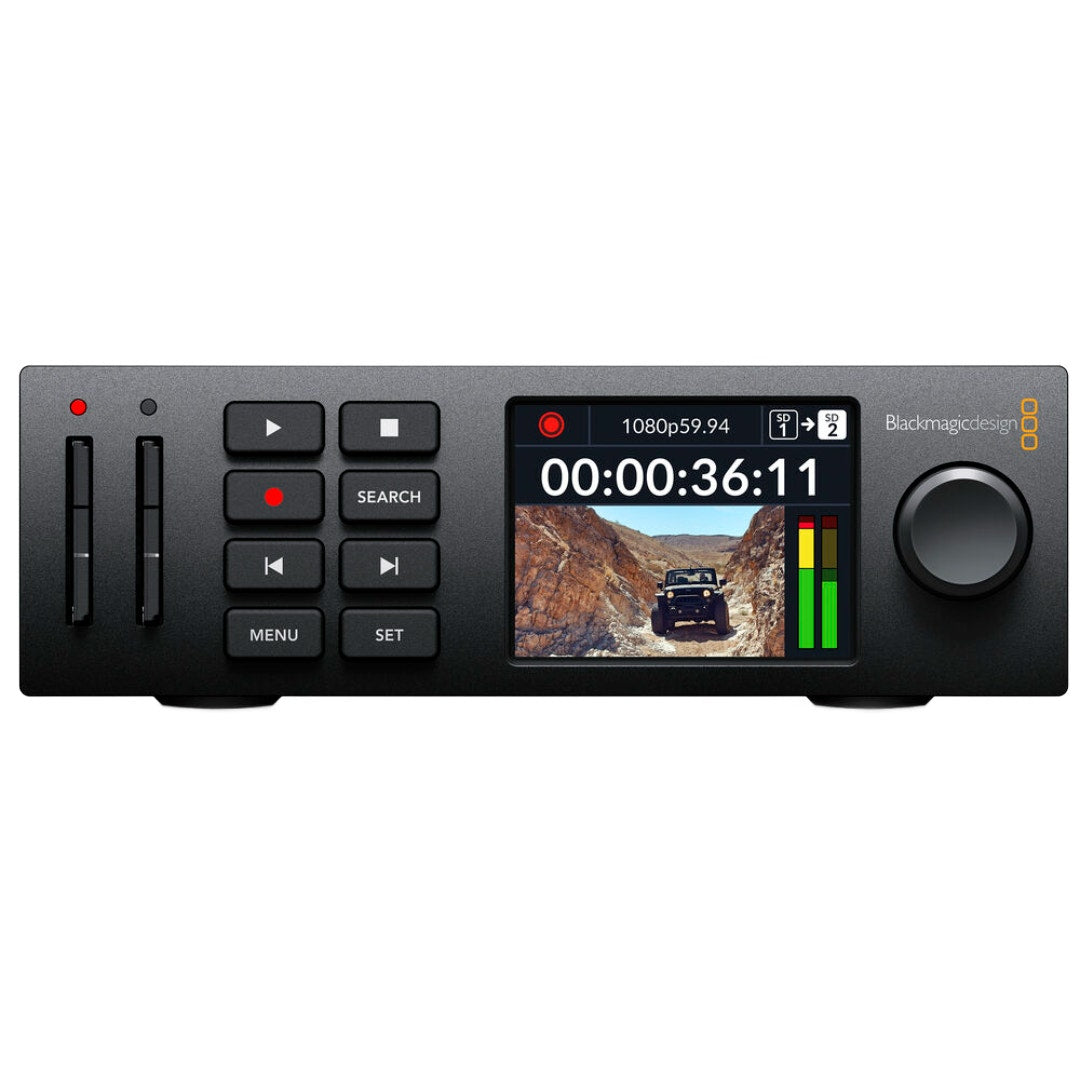

The front panel is designed with button controls and a jog/shuttle wheel for traditional scrubbing, complemented by an LCD for video monitoring.

Key Features

• Compact, broadcast-standard recorder and playback deck
• Supports reference and timecode in/out
• Two SD card slots for virtually limitless recording time
• USB-C webcam output for concurrent input, recording, and streaming
• Front panel with button controls and a jog/shuttle wheel

The HyperDeck Studio HD Mini supports a range of video inputs, including SD, HD, and select 3G signals over SDI.

It records in multiple codecs, such as Apple ProRes (422 HQ, 422, 422 LT, 422 Proxy), DNxHD (220x, 145, 45 in MXF and QuickTime formats), and H.264 (4:2:2 10-bit and 4:2:0 8-bit variants) for resolutions up to 1080p60.

VTR-style controls allow intuitive recording and playback, whilst RS-422, Ethernet (1G), and USB enable remote operation.

The included Blackmagic OS and HyperDeck Setup software enhance functionality, making it ideal for professional broadcast and production environments.
