Blackmagic Design HyperDeck Studio - HD Plus

Technical Details

Blackmagic Design HyperDeck Studio HD Plus The Blackmagic Design HyperDeck Studio HD Plus, a compact and versatile record/playback deck, boasts broadcast-quality in a portable design. Its compact size, measuring only 1 RU tall and half a rack wide, allows operation on 100-240 VAC or an optional 12 VDC power supply, ideal for mobile use.

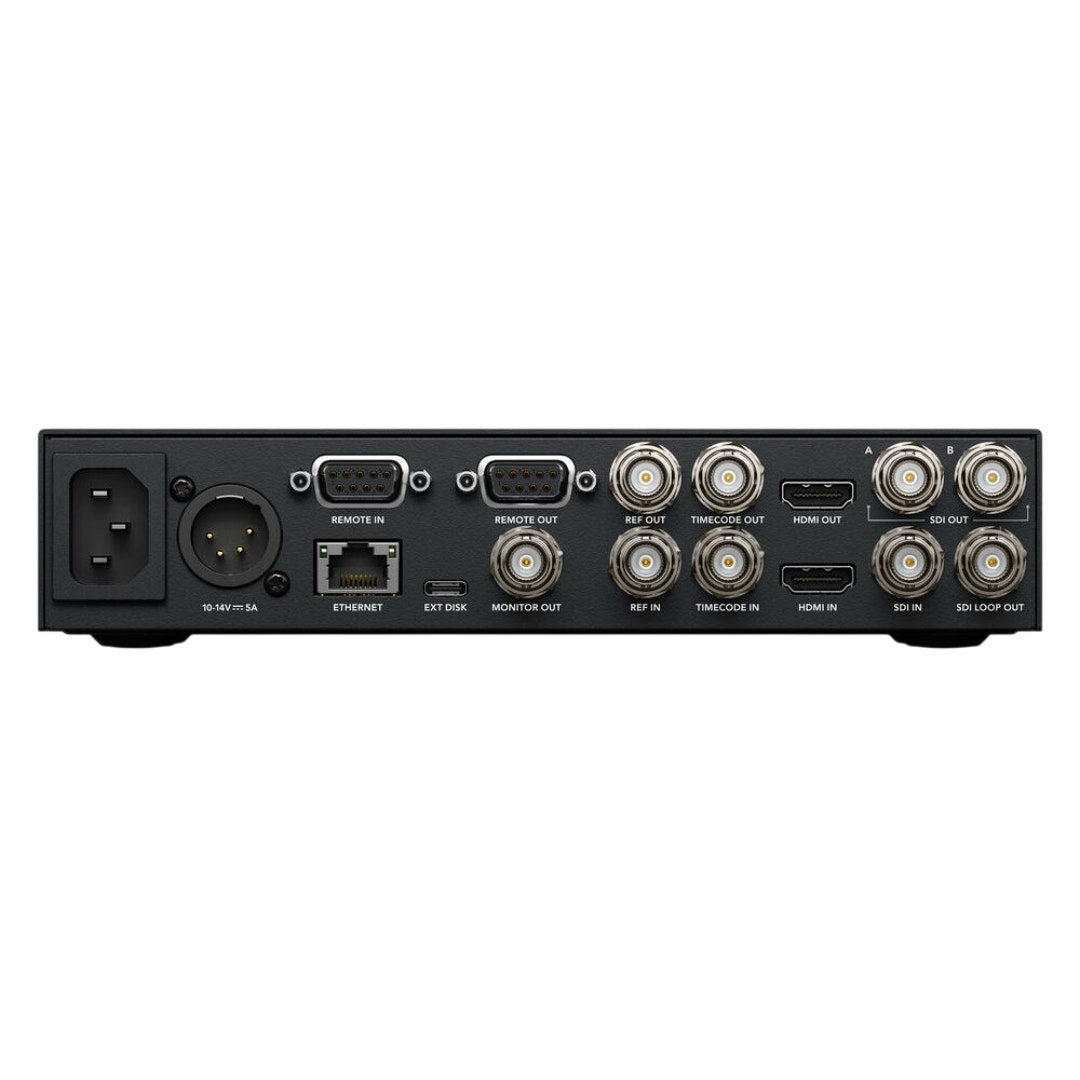

The deck comes equipped with a 6G-SDI and HDMI 2.0 input, two 6G-SDI outputs, and an HDMI 2.0 output, serving as a robust recording and playout solution.

It also features a loop-through output, 3G-SDI monitor output, and reference/timecode in/out, making it perfectly suited for broadcast settings. The device supports recording to dual SD card slots for virtually limitless capture time or to USB disks via the USB-C port.

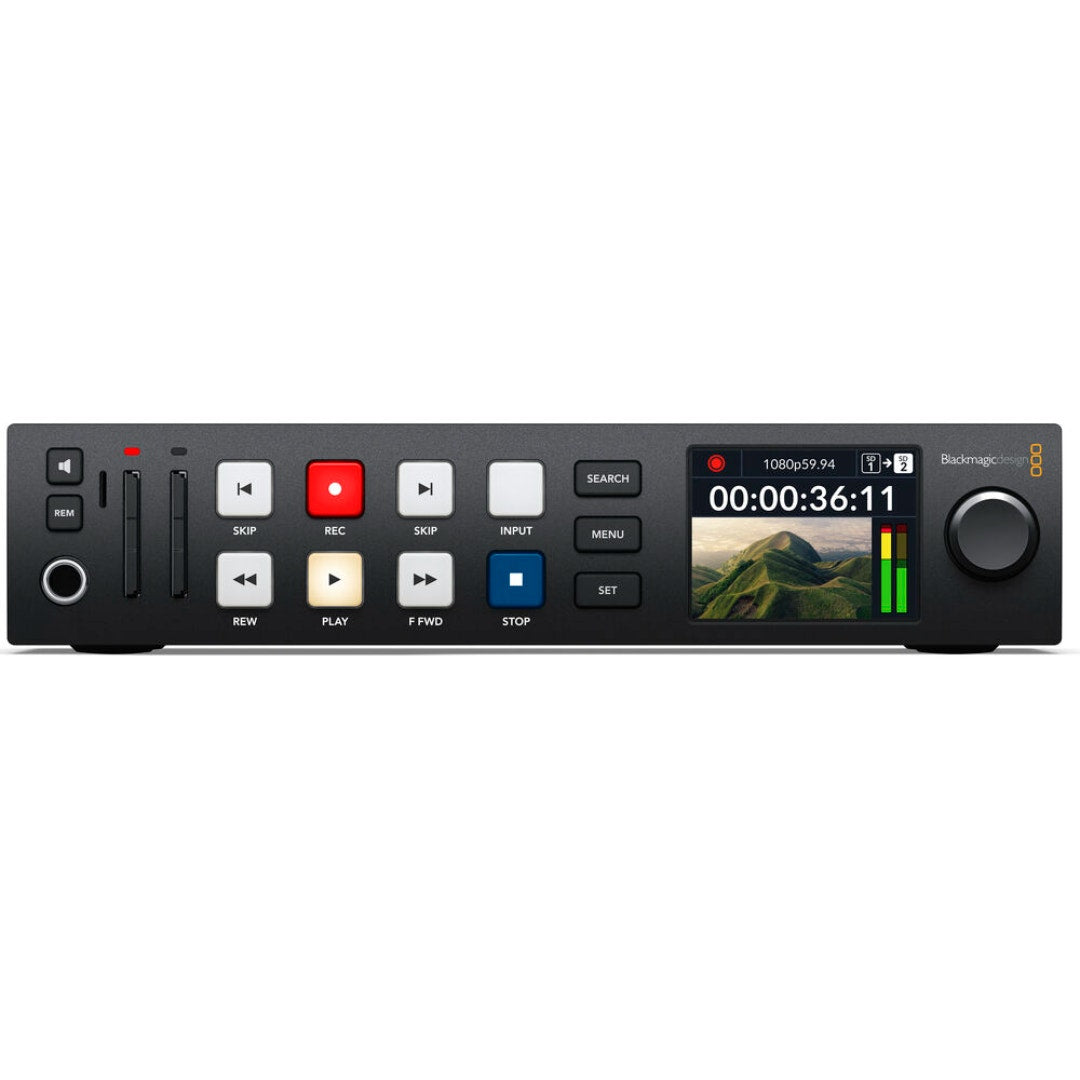

Enhanced usability is provided by front-panel controls, a jog/shuttle wheel, and an integrated LCD, while RS-422, USB, and 1G Ethernet connectivity provide flexible remote control options.

Key Features

• Compact and versatile record/playback deck
• 6G-SDI and HDMI 2.0 input
• Supports recording to dual SD card slots and USB disks
• Front-panel controls, jog/shuttle wheel, and integrated LCD
• RS-422, USB, and 1G Ethernet connectivity

The HyperDeck Studio HD Plus supports UHD and DCI 4K recording at up to 30 fps, with 6G-SDI outputs enabling fill and key playback at 1080p60.

It accommodates HDR video and 33-point LUTs via the 3G-SDI output and works with multiple codecs, including ProRes, DNxHD, and H.264. VTR-style front-panel controls, an RS-422 deck control interface, and a built-in speaker with a 6.35mm headphone jack further enhance its broadcast functionality.

The unit comes with Blackmagic OS, HyperDeck Setup software, and a one-year warranty, though a power cable is not included. Additional resources, such as the user manual, are available for download.
