Blackmagic Design 3G SDI to HDMI Micro Converter PSU

Technical Details

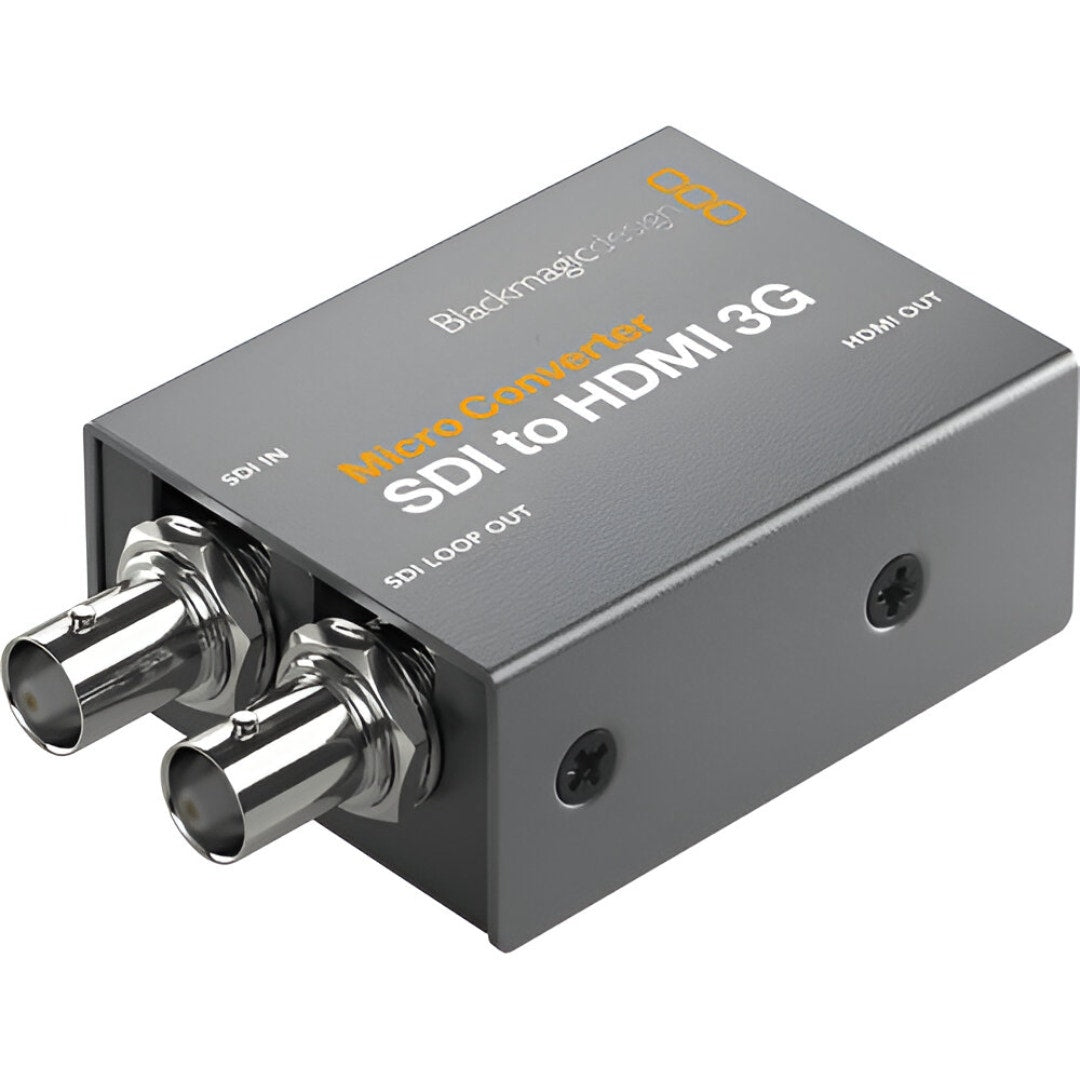

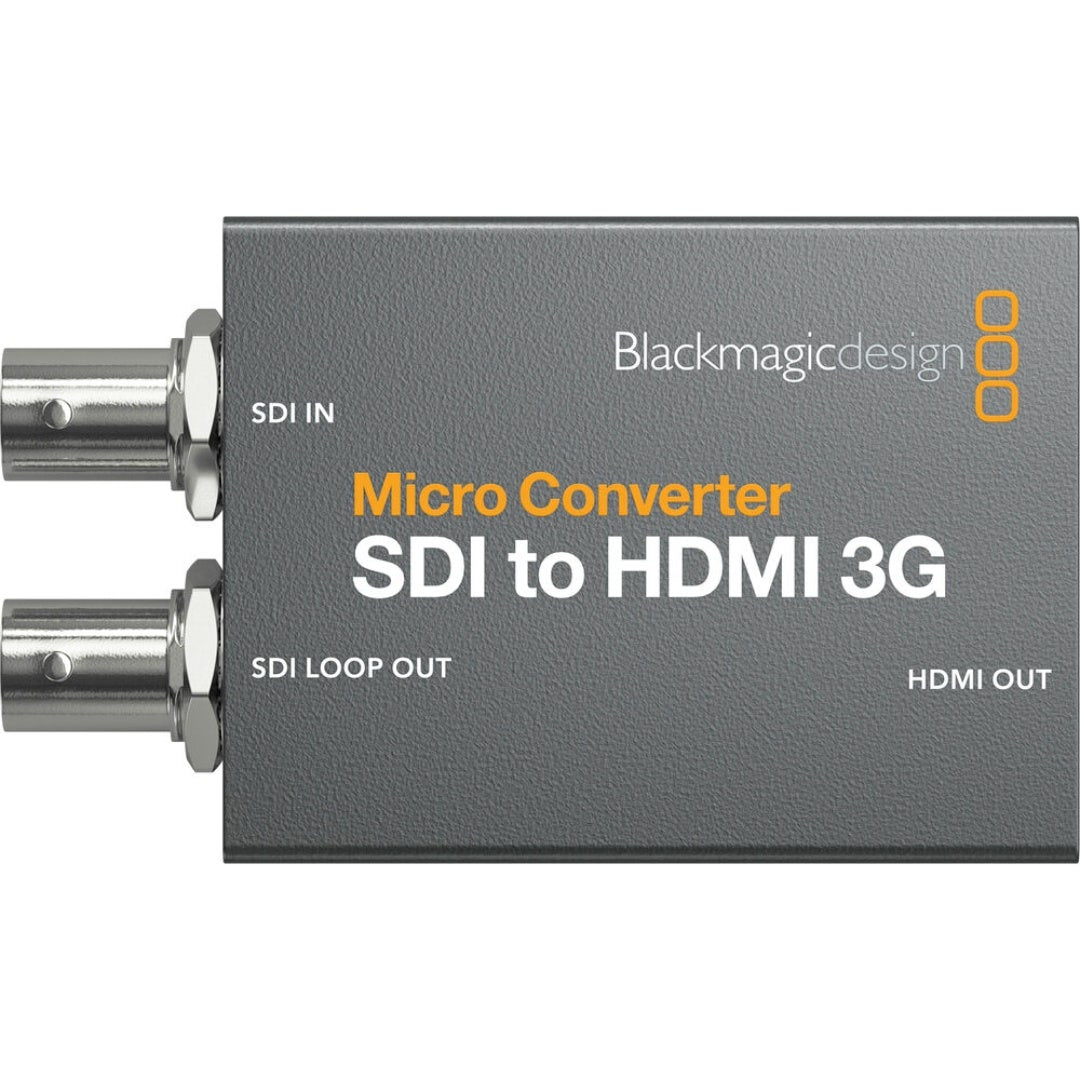

Blackmagic Design Micro Converter SDI to HDMI 3G PSU The Blackmagic Design Micro Converter SDI to HDMI 3G PSU, a compact and robust converter, facilitates the use of HDMI-input monitors and televisions for production monitoring. It boasts an SD/HD/3G-SDI input, an HDMI output, and an SD/HD/3G-SDI loop output.

A 17-point 3D LUT is integrated, providing accurate colour calibration for HDMI or SDI-input monitors, with the ability to output the LUT via the SDI loop output.

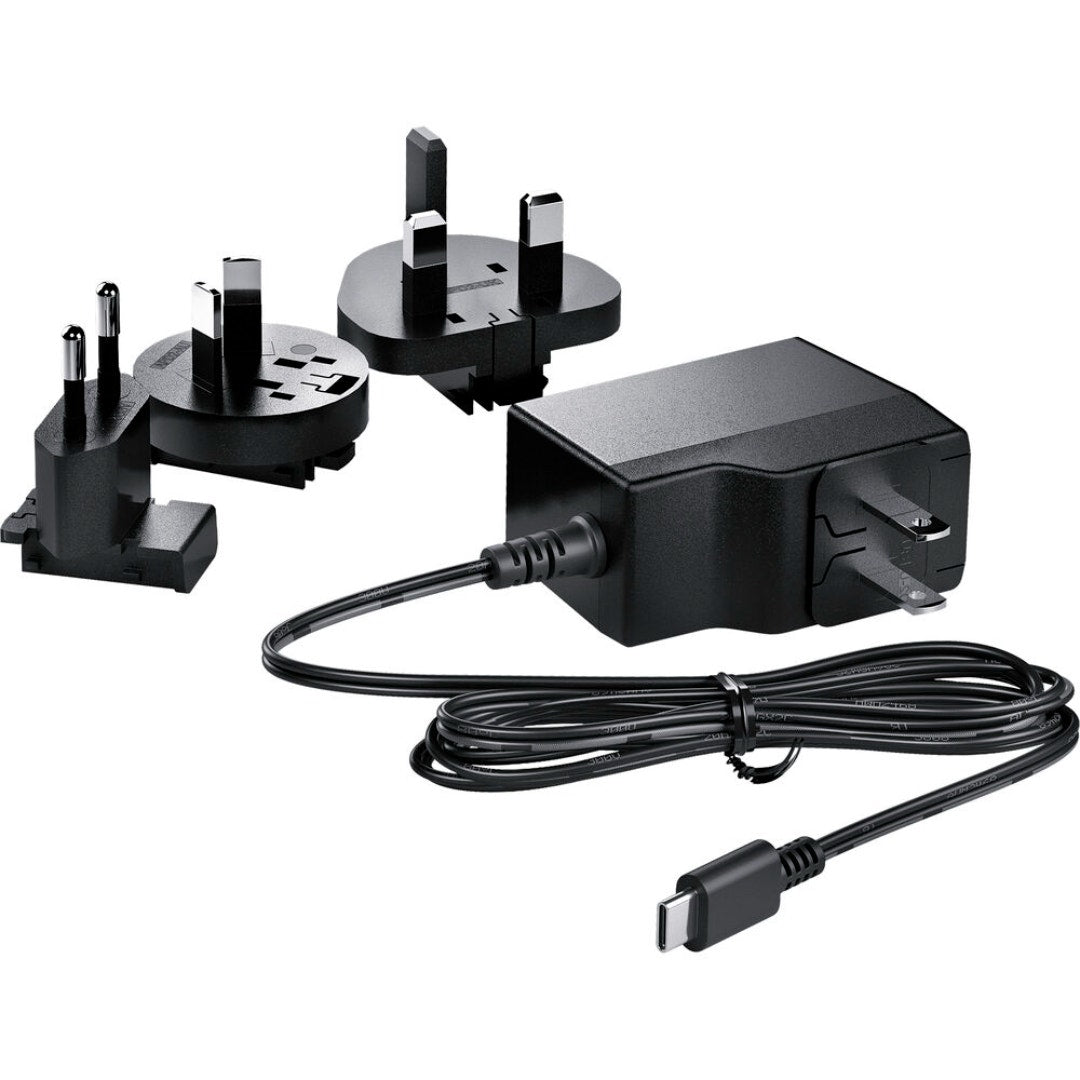

The converter is capable of automatic SD, HD, and Level A/B SDI detection and supports a broad spectrum of broadcast resolutions, including the cine-style 48 fps. Encased in a durable metal housing, it features power and signal LED indicators, sturdy connectors, and a USB Type-C port for straightforward connectivity and power sourcing from monitors, laptops, or other compatible devices. It also includes a 100-240 VAC power supply and four international socket adaptors.

Key Features

• SD/HD/3G-SDI input and loop output
• 17-point 3D LUT for accurate colour calibration
• Automatic SD, HD, and Level A/B SDI detection

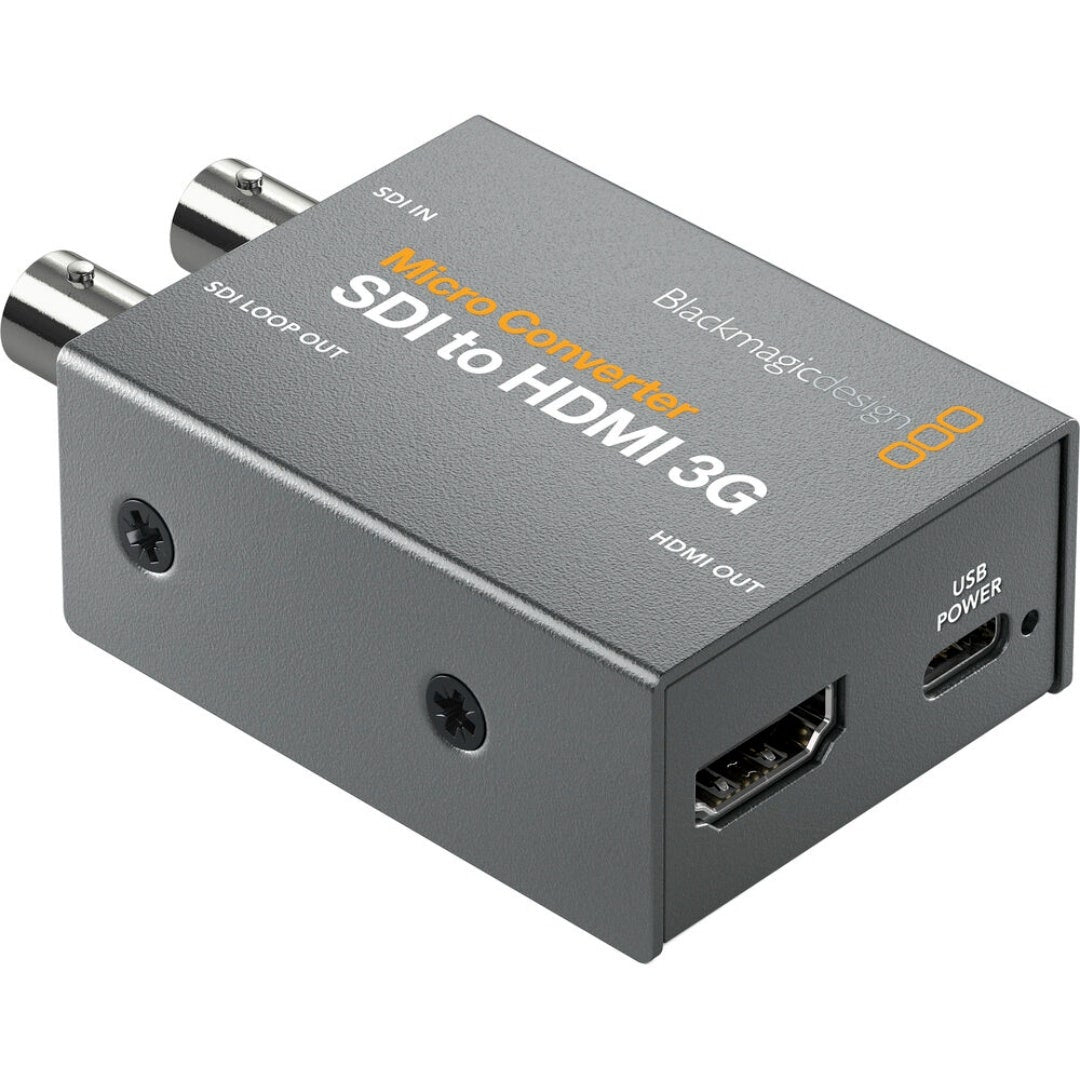

• USB Type-C port for connectivity and power sourcing
• 100-240 VAC power supply

This pocket-sized converter offers HDMI and SDI outputs, supporting resolutions up to DCI 2Kp60 via SDI and 1080p60 via HDMI.

It features embedded audio support for both HDMI input and SDI output, along with LED indicators for video and power signals. The robust metal design ensures durability, while the USB Type-C port allows for firmware updates via Mac or PC.

The included 3D LUT functionality enables precise colour calibration for monitors, televisions, or projectors. With versatile power options, the converter can be powered through the USB Type-C port or the included 100-240 VAC power supply, making it ideal for professional broadcast and production environments.
