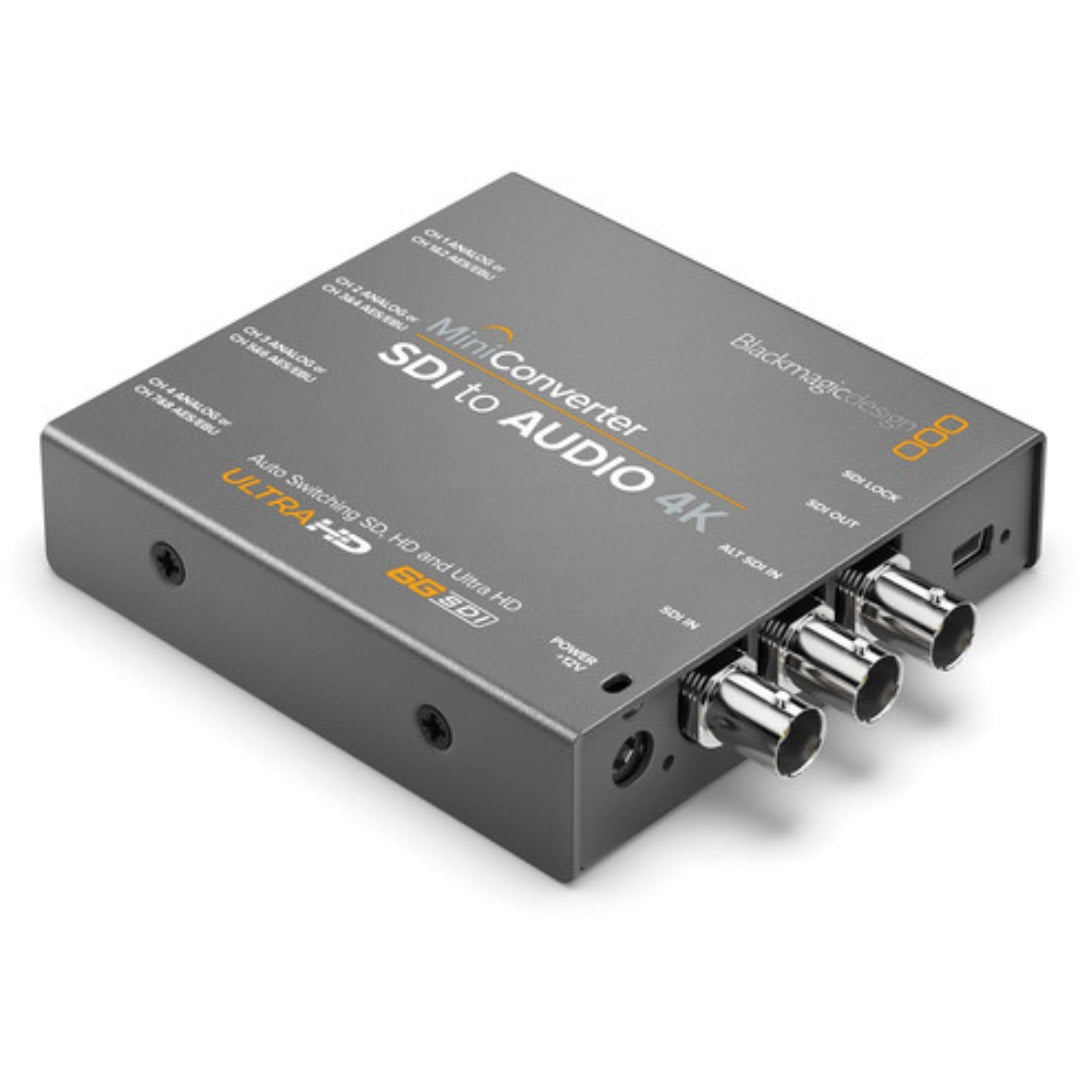

Blackmagic Design SDI-to-Audio 4K Mini Converter

Key Features

• Automatic signal detection
• Redundant SDI input
• Support for both analogue and digital audio extraction
• Automatic signal detection: This feature ensures the device can seamlessly adapt to any video signal it encounters, providing users with the flexibility to work with a variety of formats without worrying about compatibility issues.
• Redundant SDI input: This feature guarantees uninterrupted operation, even if the primary signal is lost. This is crucial in professional settings where any downtime can lead to significant losses.
• Support for both analogue and digital audio extraction: This feature provides users with the versatility to work with both analogue and digital audio, catering to a wide range of professional audio requirements.

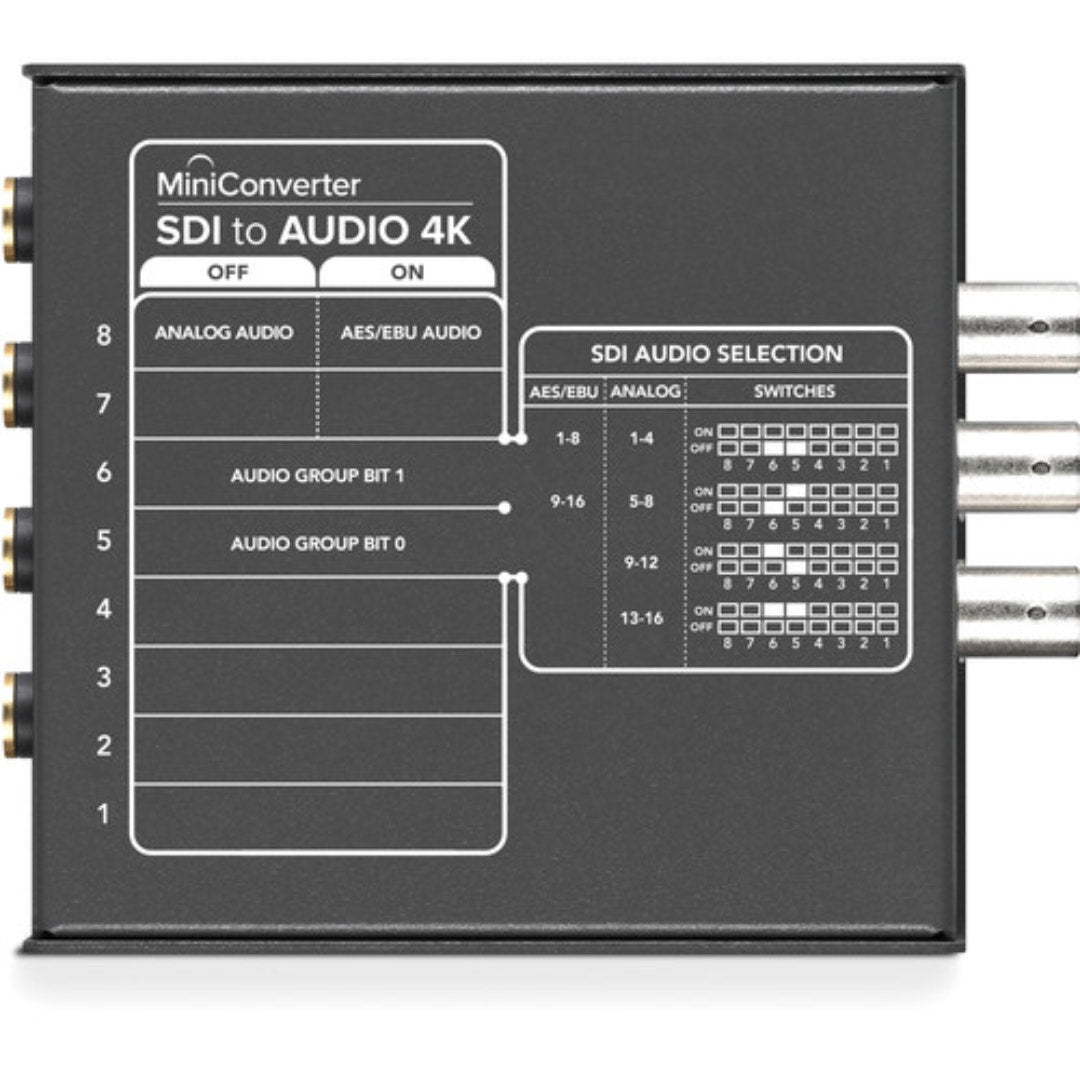

Settings can be adjusted via built-in DIP switches or USB software for macOS and Windows, with firmware updates also possible through the USB port. The device includes a 12VDC power supply with international adaptors. Additional features include 4:2:2 and 4:4:4 colour sampling, 24-bit/48 kHz audio, and compliance with SMPTE and ITU-R standards.

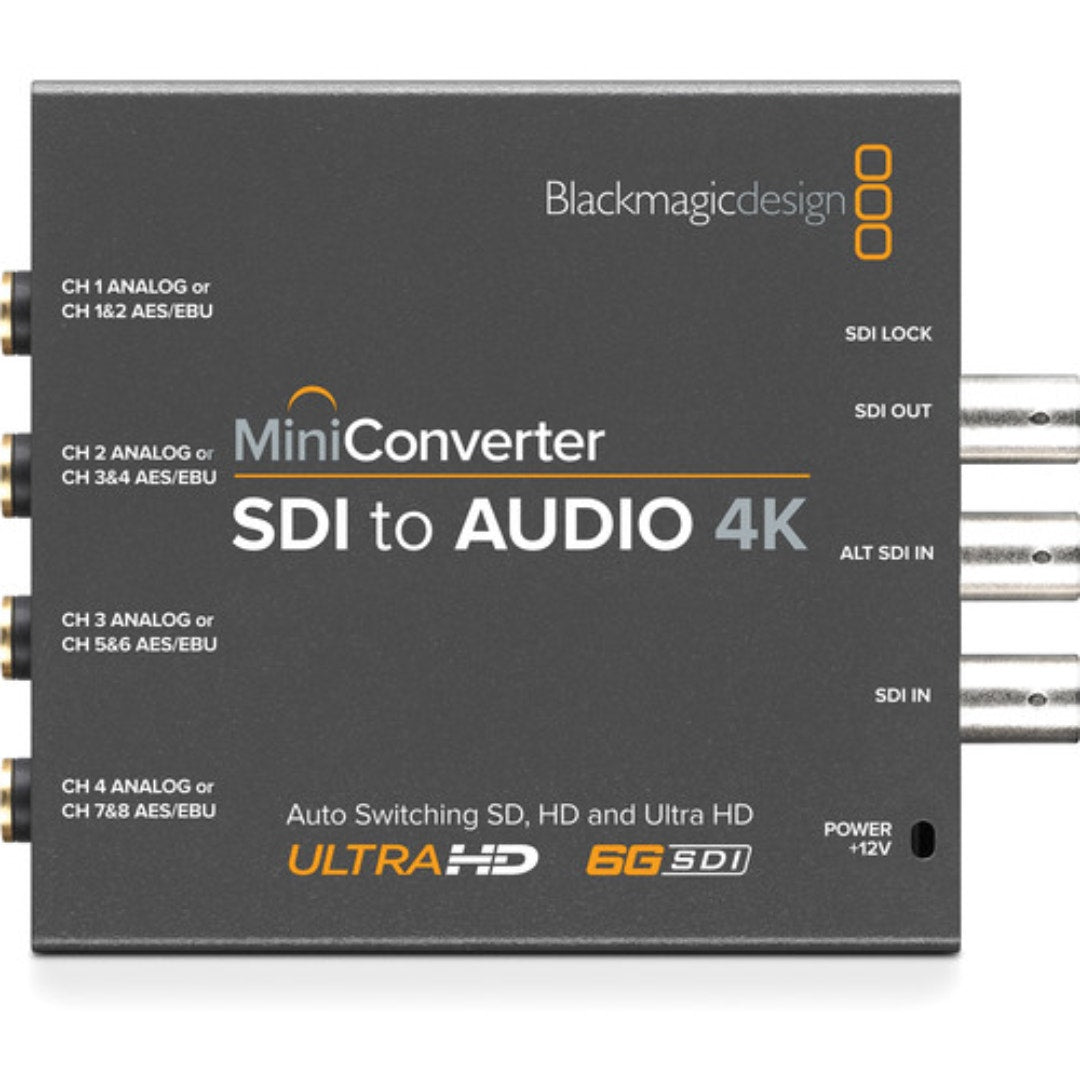

The Blackmagic Design Mini Converter SDI to Audio 4K is a technical marvel, capable of de-embedding four channels of analogue audio or eight channels of AES/EBU digital audio from any SDI video signal. Its 6G-SDI input, supporting resolutions as high as Ultra HD (3840x2160) and DCI 4K (4096x2160), is complemented by four 1/4" audio jacks for outputting audio to monitors or mixers. Notably, the converter retains the original SDI signal via a 6G-SDI output, preserving the input resolution and frame rate. The 6G-SDI technology employed allows for the handling of UHD and DCI 4K at up to 30 fps, whilst also supporting SD, HD, and 3G-SDI signals with automatic format detection. The inclusion of a redundant SDI input guarantees uninterrupted operation, even if the primary signal is lost.

Our expert's opinion

The Blackmagic Design Mini Converter - SDI to Audio 4K is a technical marvel that professionals in the broadcast and production industry will find invaluable. With its ability to de-embed analogue and digital audio from any SDI video signal, automatic signal detection, and redundant SDI input for uninterrupted operation, it offers a level of versatility and reliability that is hard to match. Add to that its support for high resolutions and a variety of colour sampling options, and you have a device that is well-equipped to handle the demands of modern video production workflows.
