Blackmagic Design Smart Videohub, 12x12

Technical Details

Blackmagic Design Smart Videohub 12x12 Diving straight into the heart of the matter, the Blackmagic Design Smart Videohub 12x12 is an innovative piece of technology. It's a compact yet powerful video routing solution, offering a seamless blend of high-performance and user-friendly features. This device is designed with a 12x12 routing matrix, capable of handling up to 12 inputs and 12 outputs simultaneously.

It's a versatile tool, perfect for a variety of professional video applications.

Key Features

• 12x12 routing matrix
• HD Video Resolutions up to 1080p60
• Genlock
• Push buttons on front panel
• Apple iPad control panel app available

The Smart Videohub 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. It supports 4:2:2 and 4:4:4 colour sampling and 10-bit processing for smoother gradations.

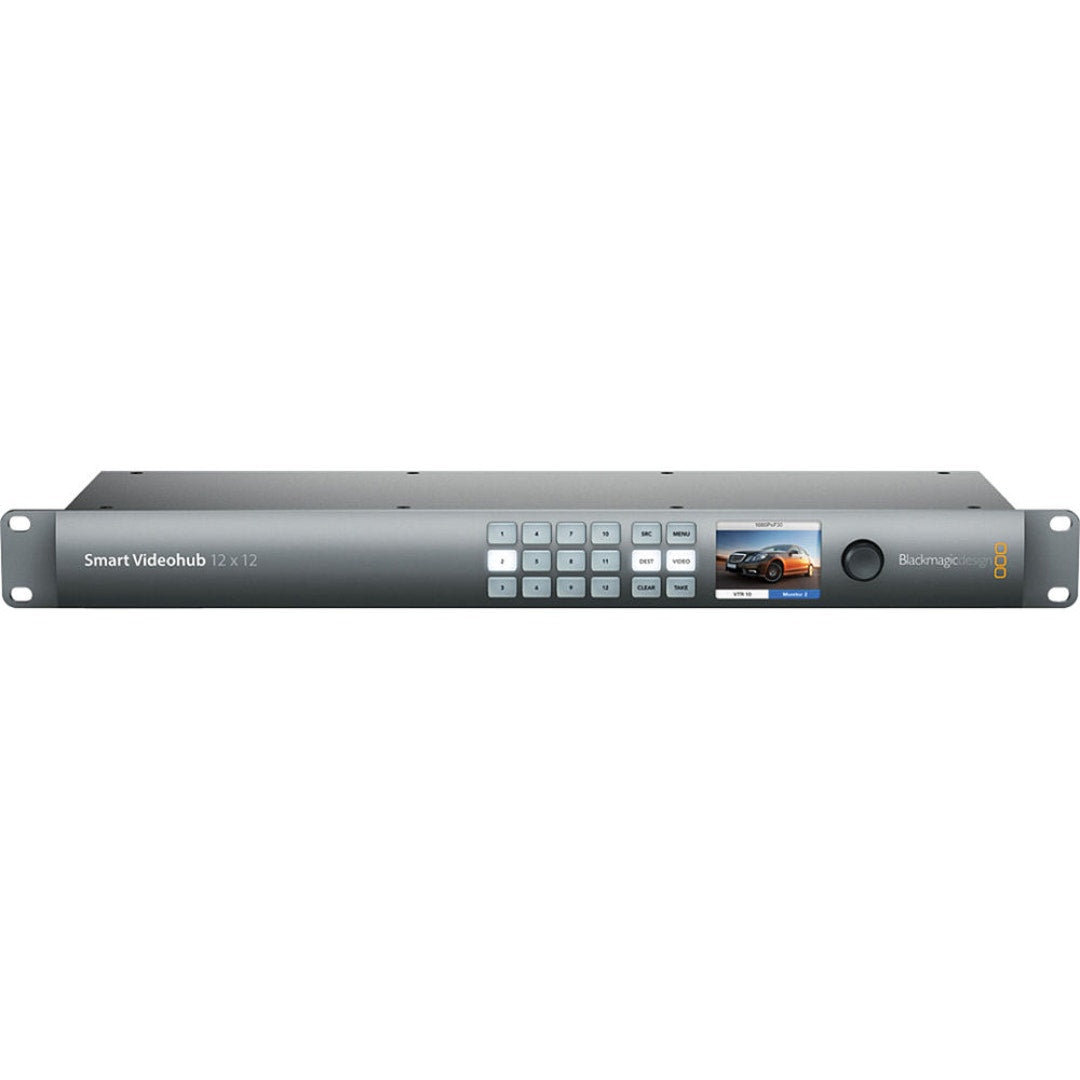

Housed in a 1RU frame, the Smart Videohub ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control.

Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows.

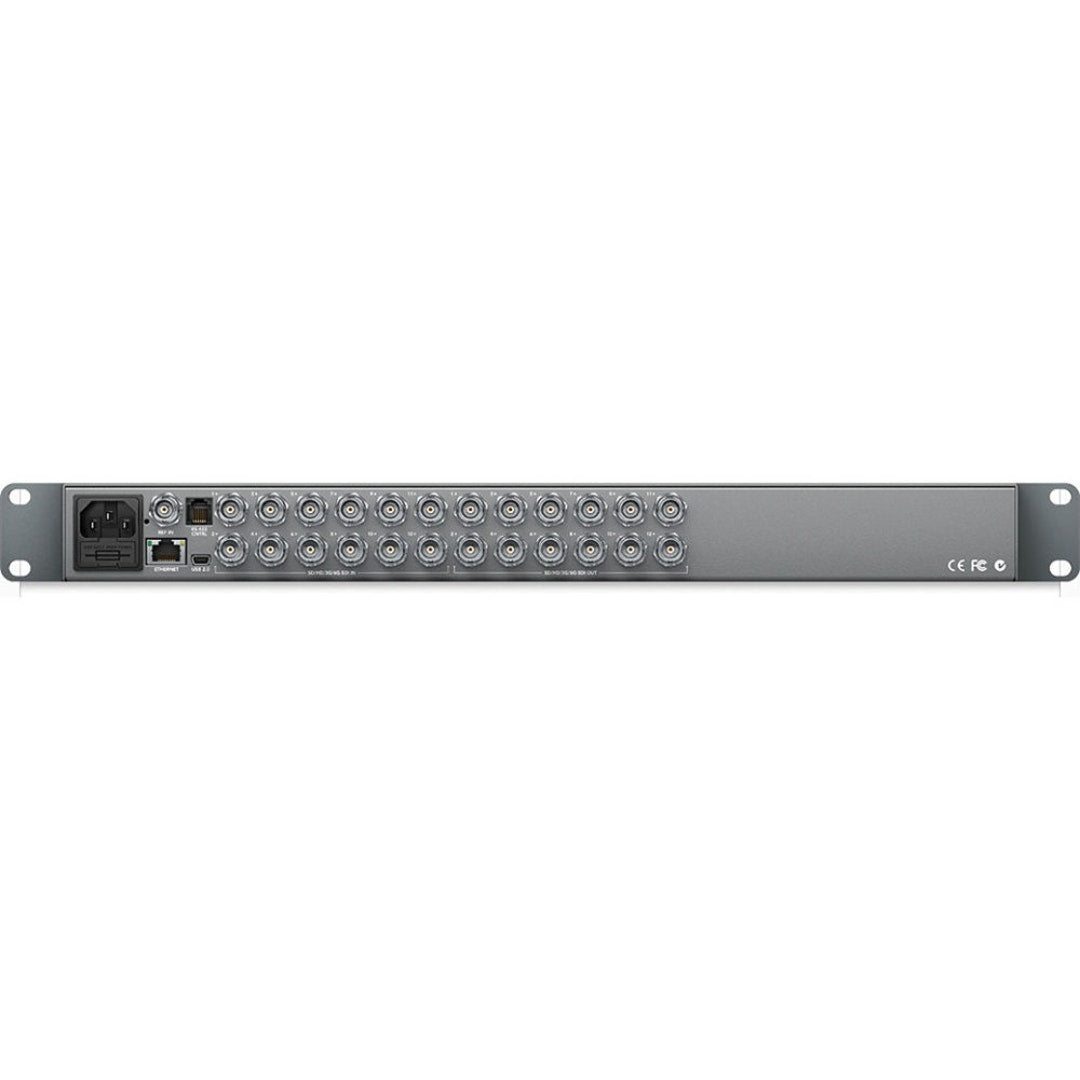

You can even use the available iPad app to change routing over your wireless network. 12x 6G-SDI inputs / 12x 6G-SDI outputs
