Blackmagic Design SmartScope Duo 4K - 2

Technical Details: Blackmagic Design SmartScope Duo 4K 2

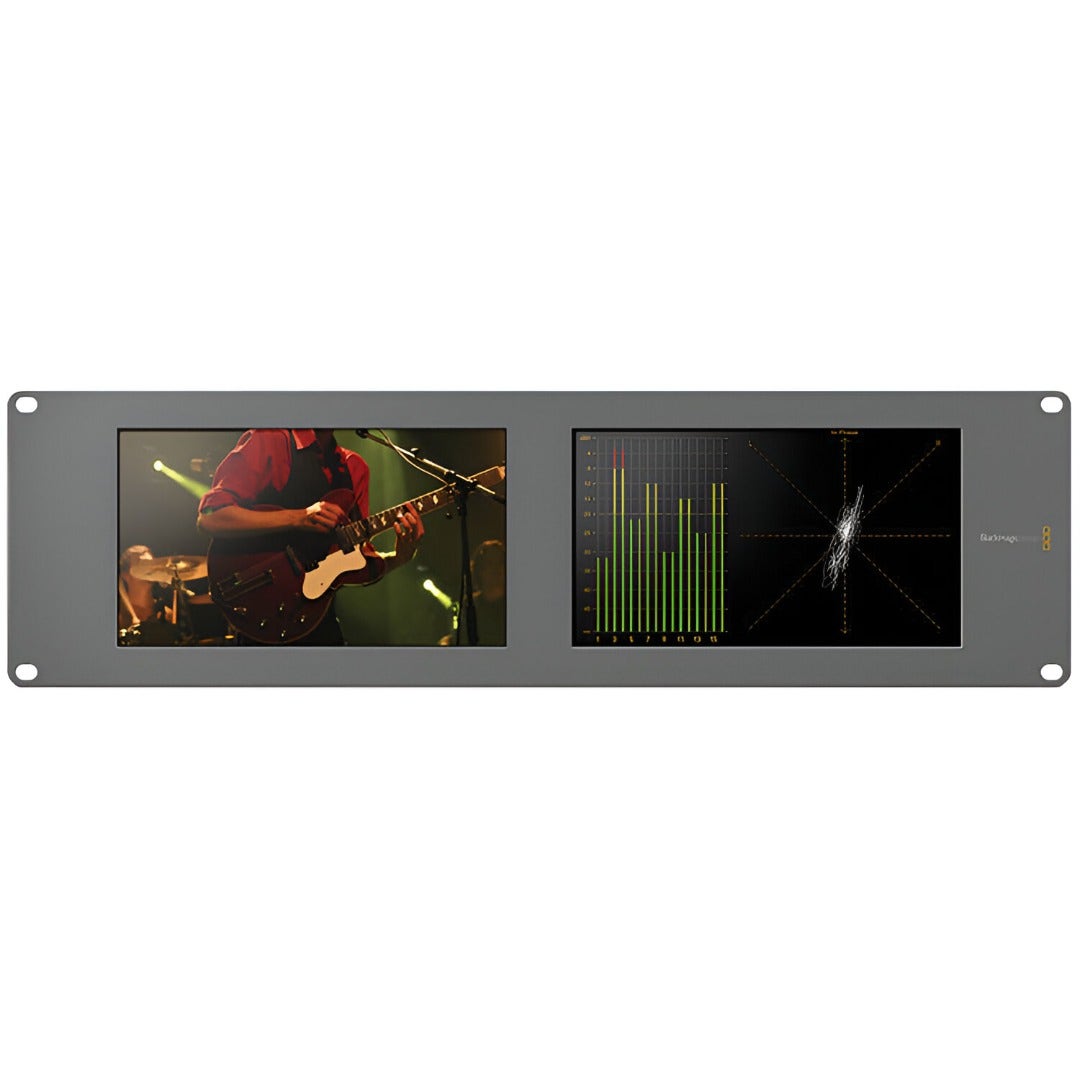

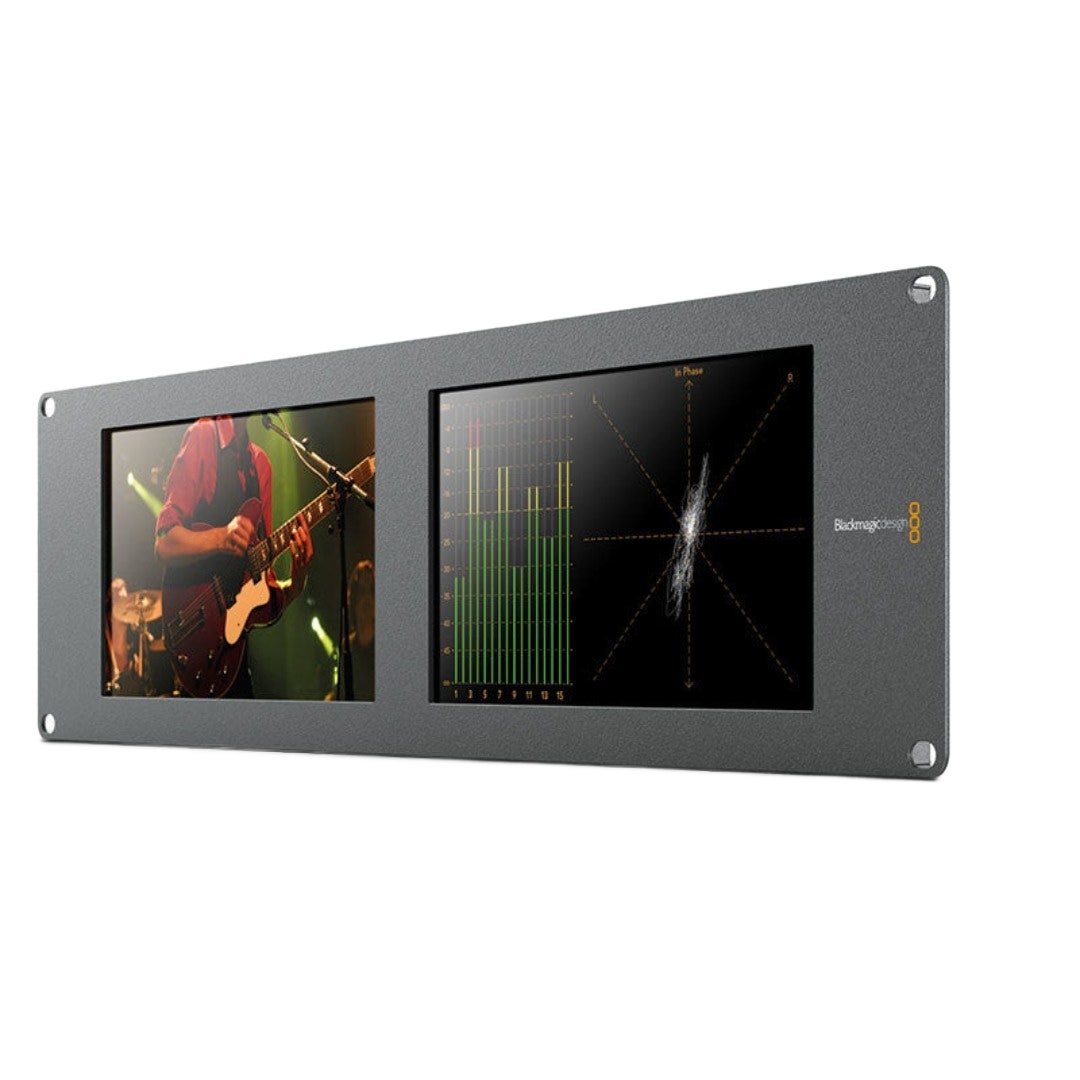

The Blackmagic Design SmartScope Duo 4K, a dual 6G-SDI monitor, is a versatile, rack-mounted solution for professional video monitoring and analysis.

Boasting two 8.0" TFT LCD displays with an 800 x 480 resolution, it supports SD, HD, and 6G-SDI formats with auto-format sensing. Each monitor is equipped with a loop-through SDI I/O, facilitating seamless signal pass-through.

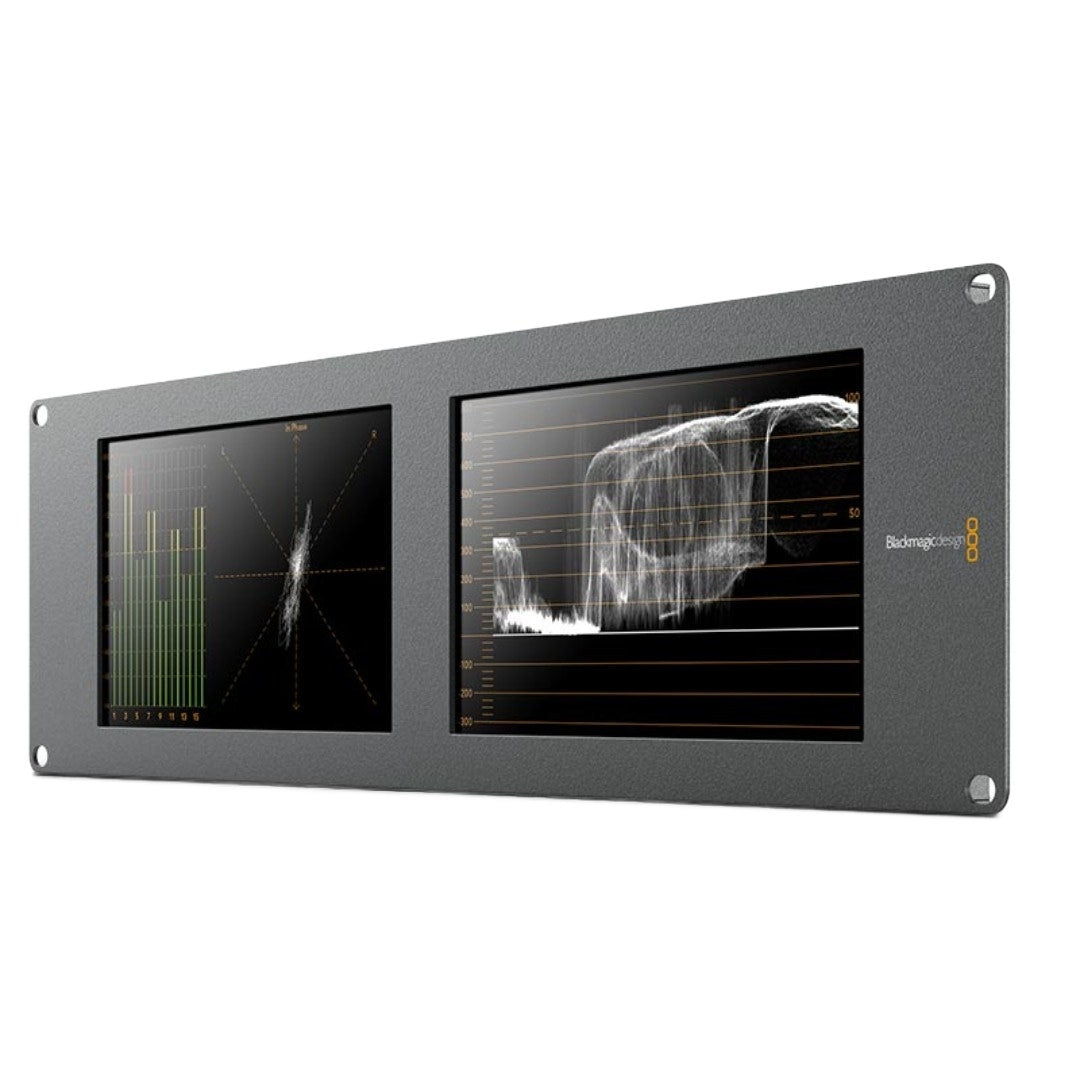

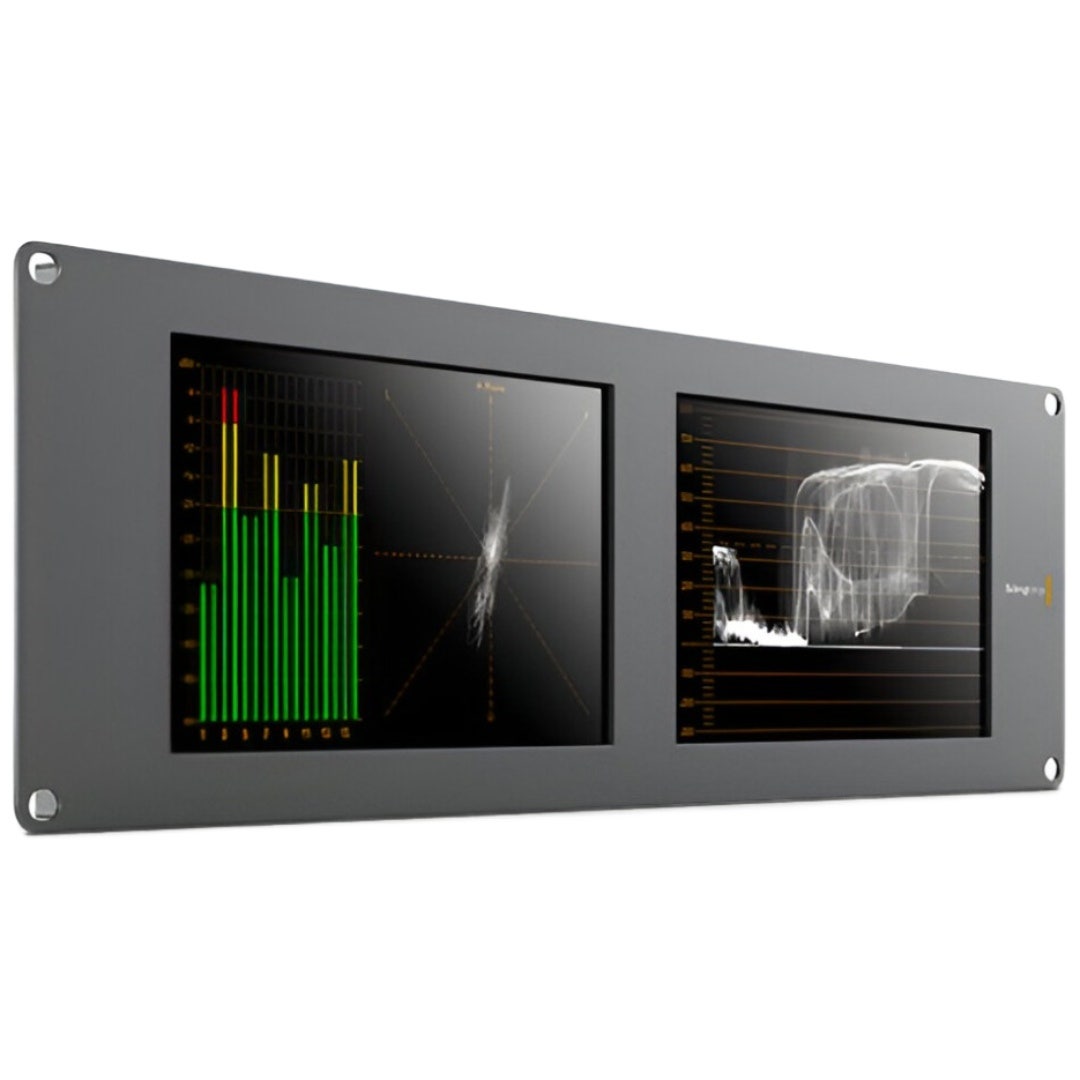

The unit provides advanced monitoring tools such as waveform, vectorscope, RGB/YUV parades, histogram, and audio phase/level displays for accurate signal analysis.

Real-time LUT monitoring for SDR content and compatibility with industry-standard tally systems are also featured. Its compact 3 RU rack-mountable design includes auto-orientation sensing, image flip, and Ethernet-based software control for remote operation.

Key Features

• Two 8.0" TFT LCD displays with an 800 x 480 resolution
• Supports SD, HD, and 6G-SDI formats with auto-format sensing
• Advanced monitoring tools for accurate signal analysis
• Real-time LUT monitoring for SDR content
• Compact 3 RU rack-mountable design with Ethernet-based software control

The SmartScope Duo 4K supports a wide range of video formats, including UHD 4K up to 30 fps, DCI 2K, 1080p, 720p, and interlaced standards.

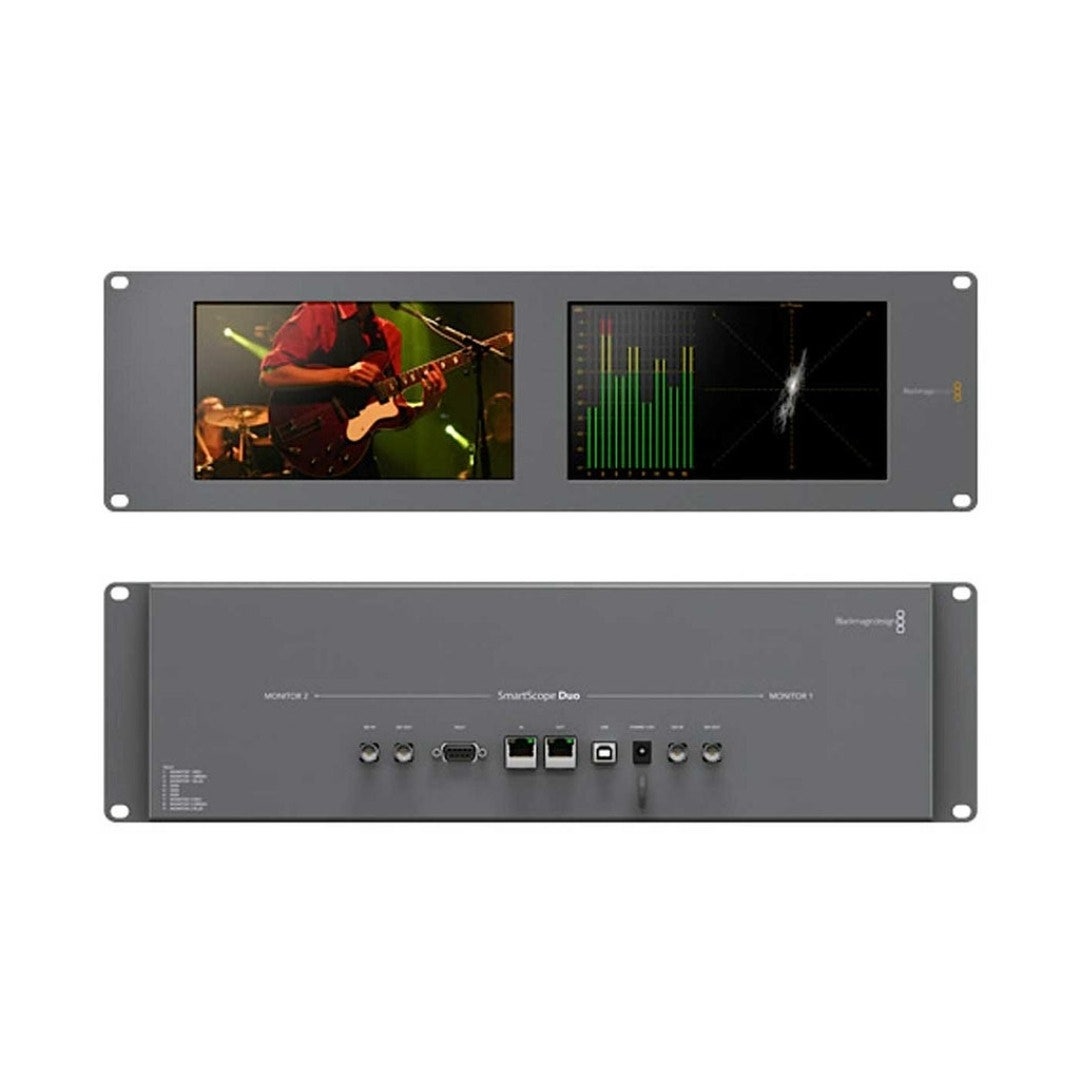

It features dual 6G-SDI inputs and outputs, embedded 16-channel SDI audio, and connectivity options including two LAN ports, a USB 2.0 port, and a DE-9 tally connector. The monitor operates on 12-15 VDC power, consuming a maximum of 20 W, and is built for durability with an operating temperature range of 0-40°C.

Measuring 48.3 x 13.3 x 3.2 cm and weighing 1.53 kg, it comes with a 12V universal power supply, international adaptors.
