Blackmagic Design 12G-SDI to Quad SDI Teranex Mini

Technical Details

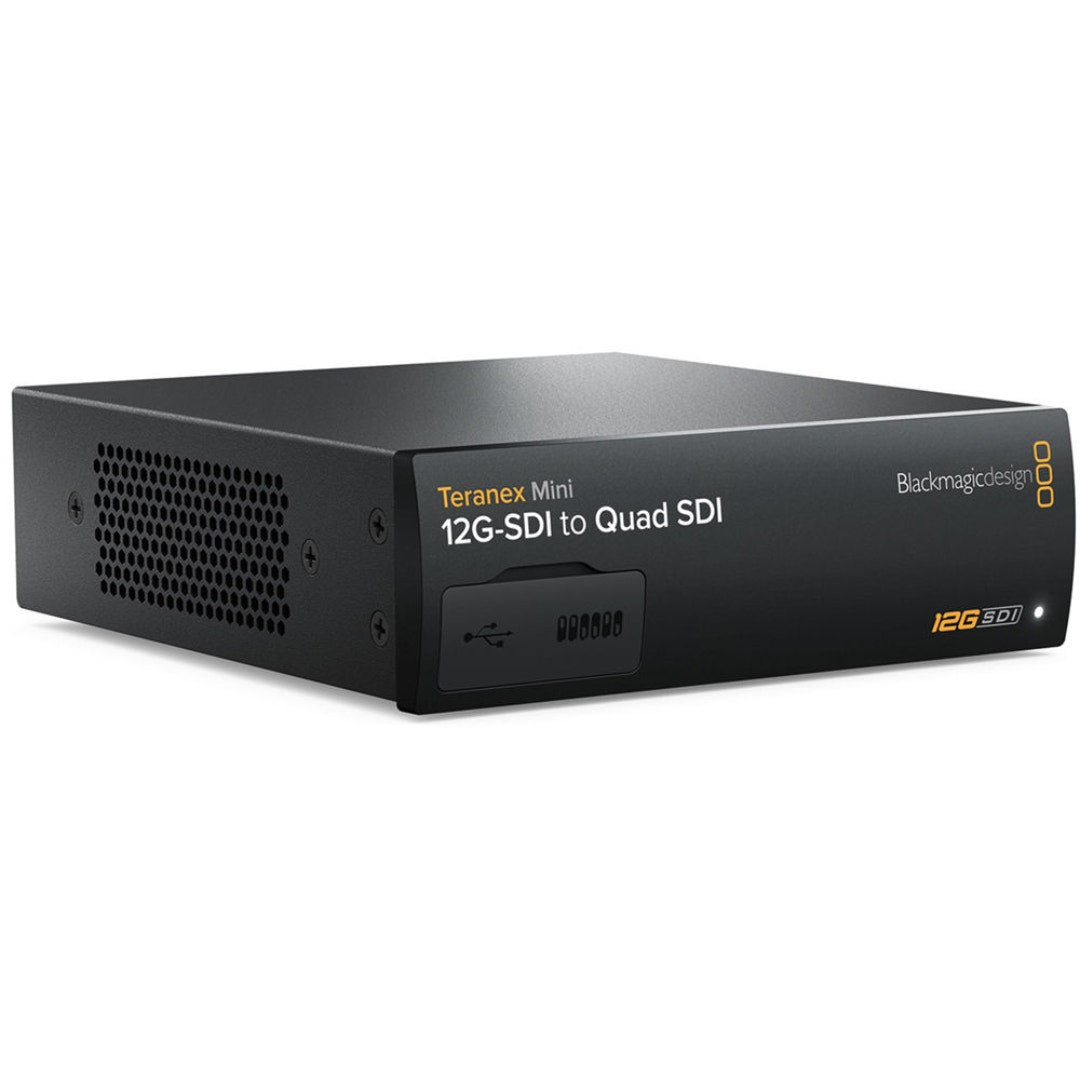

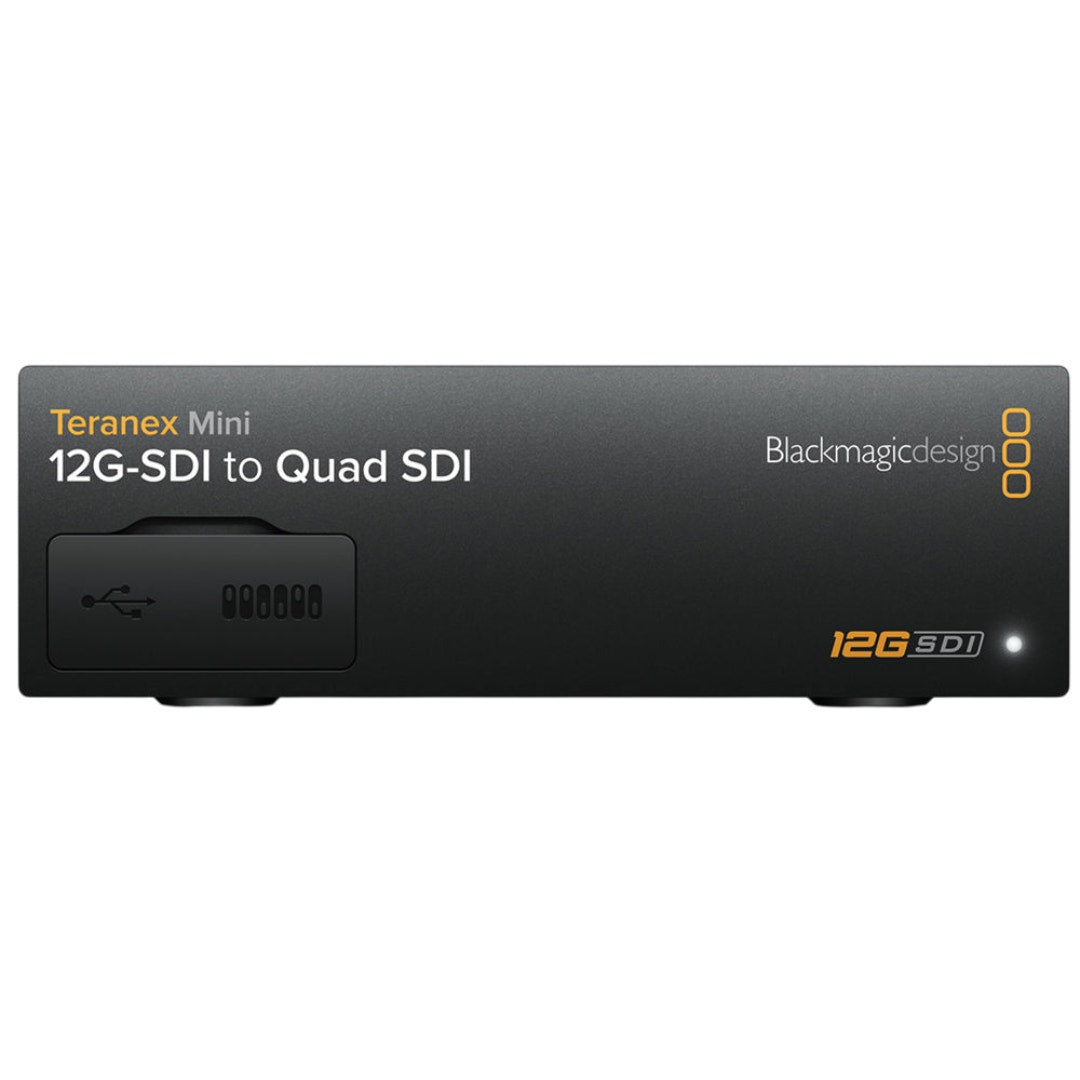

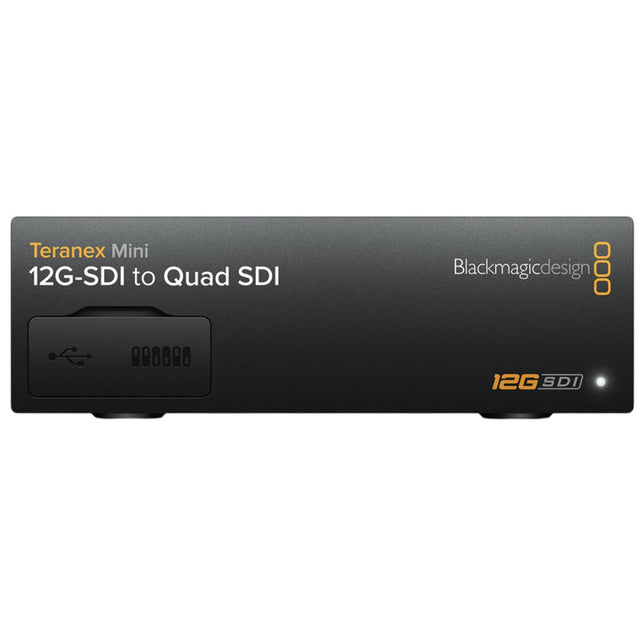

Blackmagic Design Teranex Mini - 12G-SDI to Quad SDI The Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter is a compact yet versatile device, adept at distributing high-resolution 12G-SDI source to Quad-Link SDI equipment.

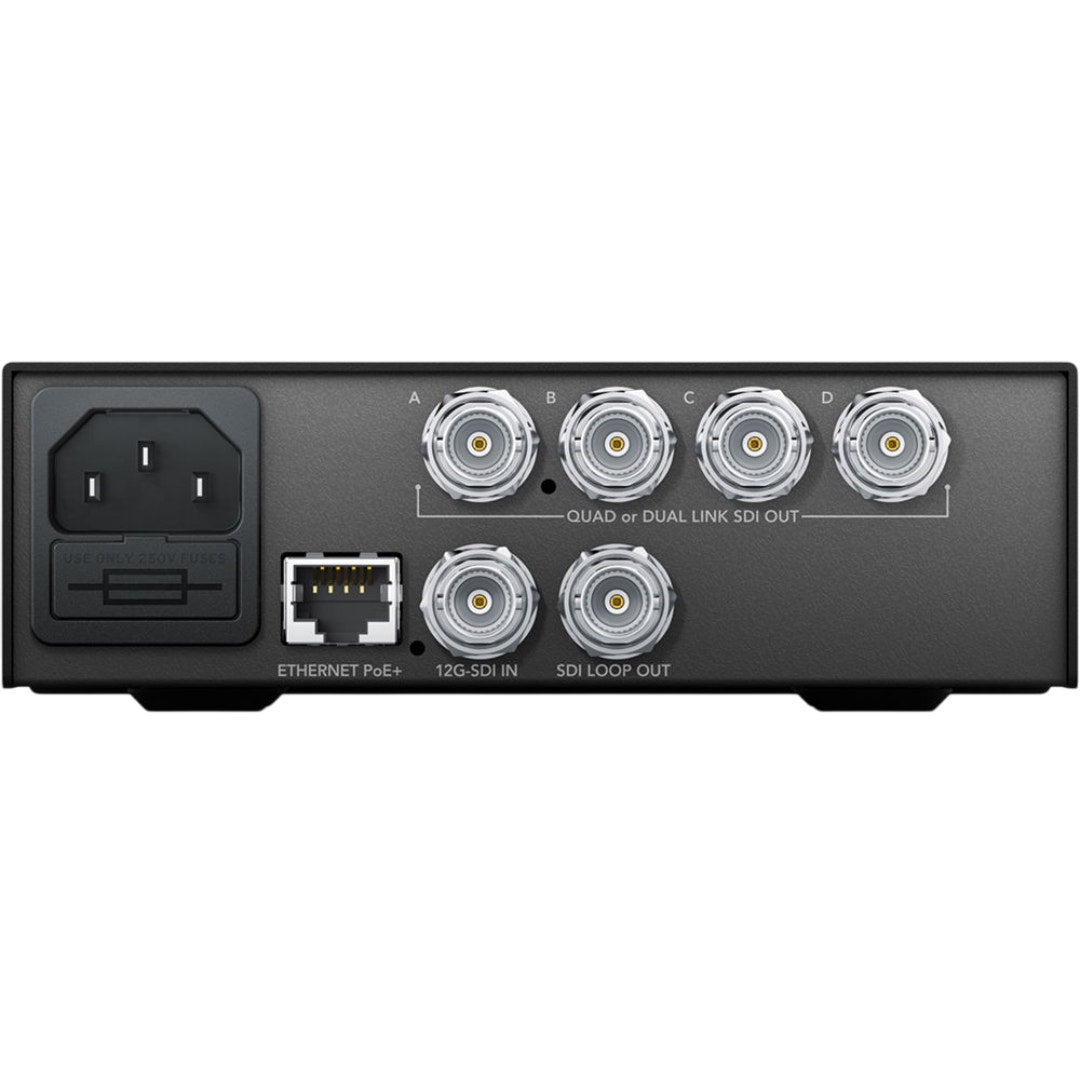

It fits seamlessly into studio and post-production workflows, making it a perfect fit for multi-display setups or video wall applications. The converter is equipped with one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI distribution outputs with multirate auto-switching, supporting a range of formats including DCI 4K, UHD 4K, HD, and SD.

It also delivers 16 channels of broadcast-quality 24-bit, 48 kHz audio. For control options, it offers Ethernet connectivity for software adjustments and PoE (Power-over-Ethernet) support. Added convenience is provided by front-panel DIP switches and a USB configuration port.

Key Features

• 12G-SDI input and loop output
• Four 3G-SDI distribution outputs
• Supports a range of formats including DCI 4K, UHD 4K, HD, and SD
• Ethernet connectivity for software adjustments
• Power-over-Ethernet (PoE) support

The Teranex Mini Converter is compatible with macOS 10.14 Mojave, macOS 10.15 Catalina or later, and Windows 8.1 and 10.

Key features include automatic input signal detection, flexible power options via PoE or an IEC C14 power cable, and firmware updates through Ethernet or USB. Its robust design ensures reliable performance in professional environments, making it a versatile solution for high-quality video distribution.
