Blackmagic Design Analog-to-SDI 12G Teranex Mini

Technical Details

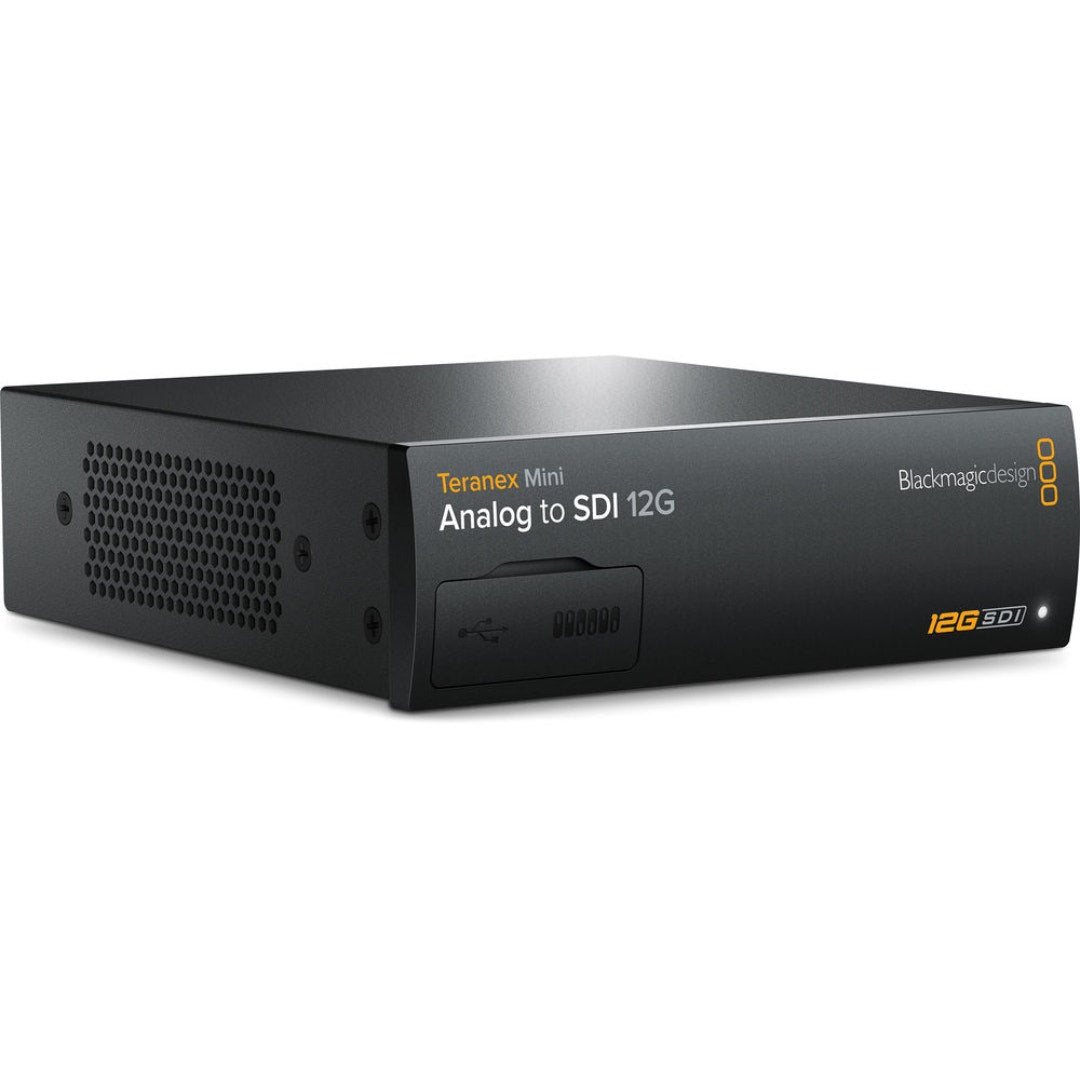

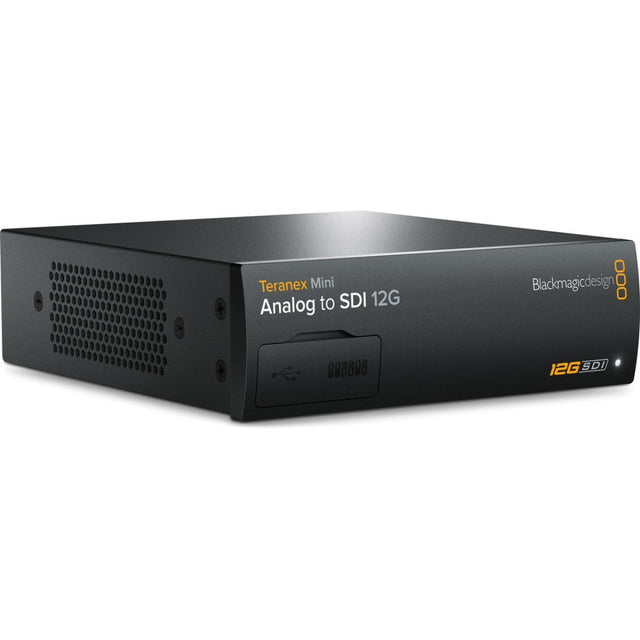

Blackmagic Design Teranex Mini - Analog to SDI 12G The Blackmagic Design Teranex Mini Analog to SDI 12G Converter is a versatile tool in the professional video realm, capable of supporting Full 4K DCI 4096x2160p signals via two independent 12G-SDI outputs.

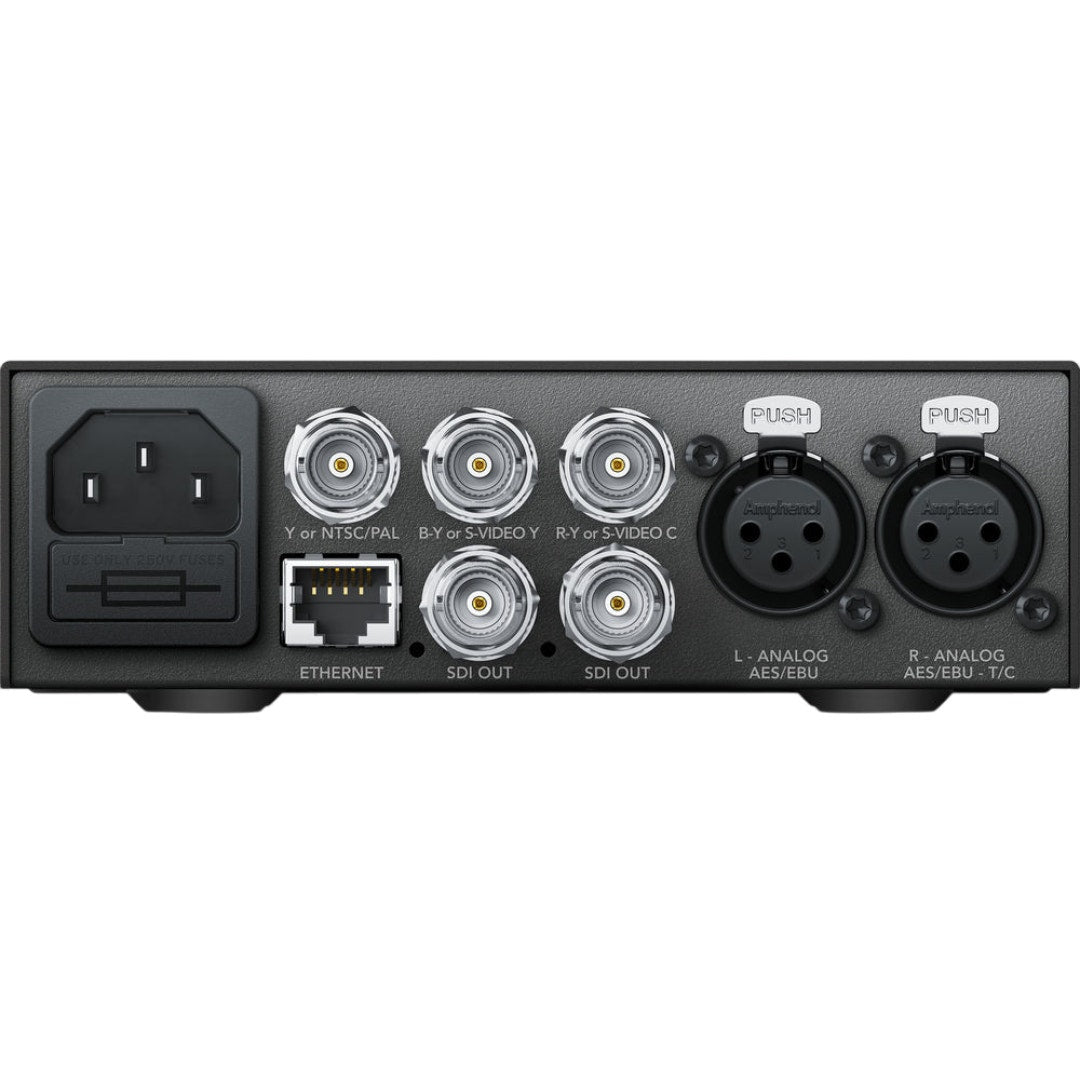

Its intelligent heat dissipation, switchable XLR connections between balanced analog and AES/EBU audio, and Ethernet port for remote control or PoE, make it a comprehensive solution. Its compact form allows for flexible placement in racks, cable ducts or desktop configurations, with the ability to fit three units into a 1U 19" rack using an optional tray.

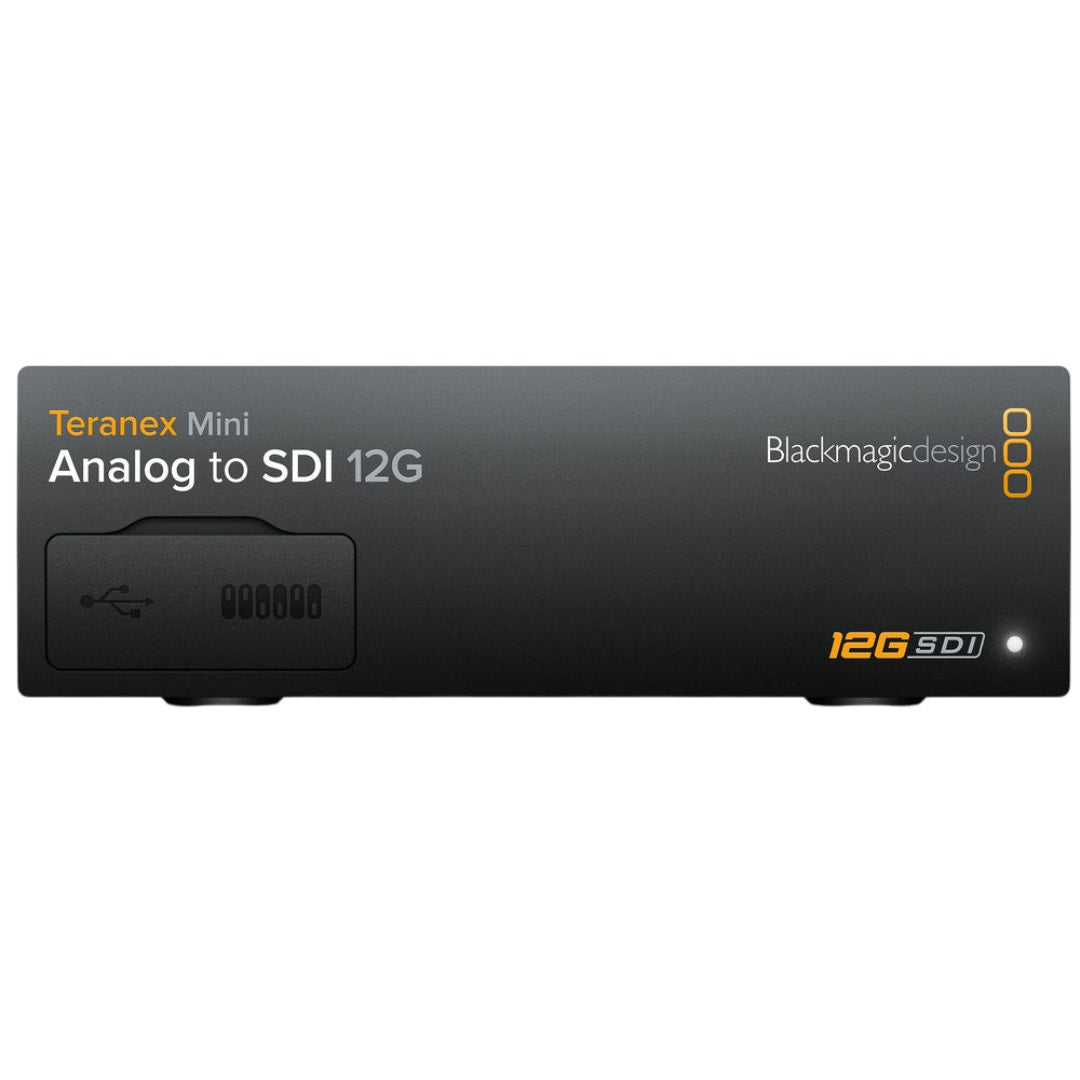

The need for external adapters is eradicated with a built-in 90-240V power supply, requiring only a standard IEC cable. The front panel can be swapped out for an optional Smart Panel, complete with an LCD and intuitive controls, whilst the standard panel features mini switches for swift adjustments.

Key Features

• Supports Full 4K DCI 4096x2160p signals via two independent 12G-SDI outputs
• Switchable XLR connections between balanced analog and AES/EBU audio
• Ethernet port for remote control or PoE
• Built-in 90-240V power supply
• Optional Smart Panel with an LCD and intuitive controls

The Teranex Mini excels in thermal management with crossflow cooling and an internal heat pipe, ensuring optimal performance even in dense rack configurations.

Users can monitor and control multiple units remotely via Ethernet using the downloadable Converter Utility software. It supports extended cable runs, transmitting 4096x2160p signals up to 21.34 metres over 6G-SDI, with future 12G-SDI compatibility enabling distances over 76.2 metres. Ideal for broadcast and post-production, the converter also includes full SDI re-clocking and low-jitter processing for high-quality signal integrity.

Its smart thermal design provides overheating alerts via the front panel or remote utility, maintaining reliability in demanding environments.
