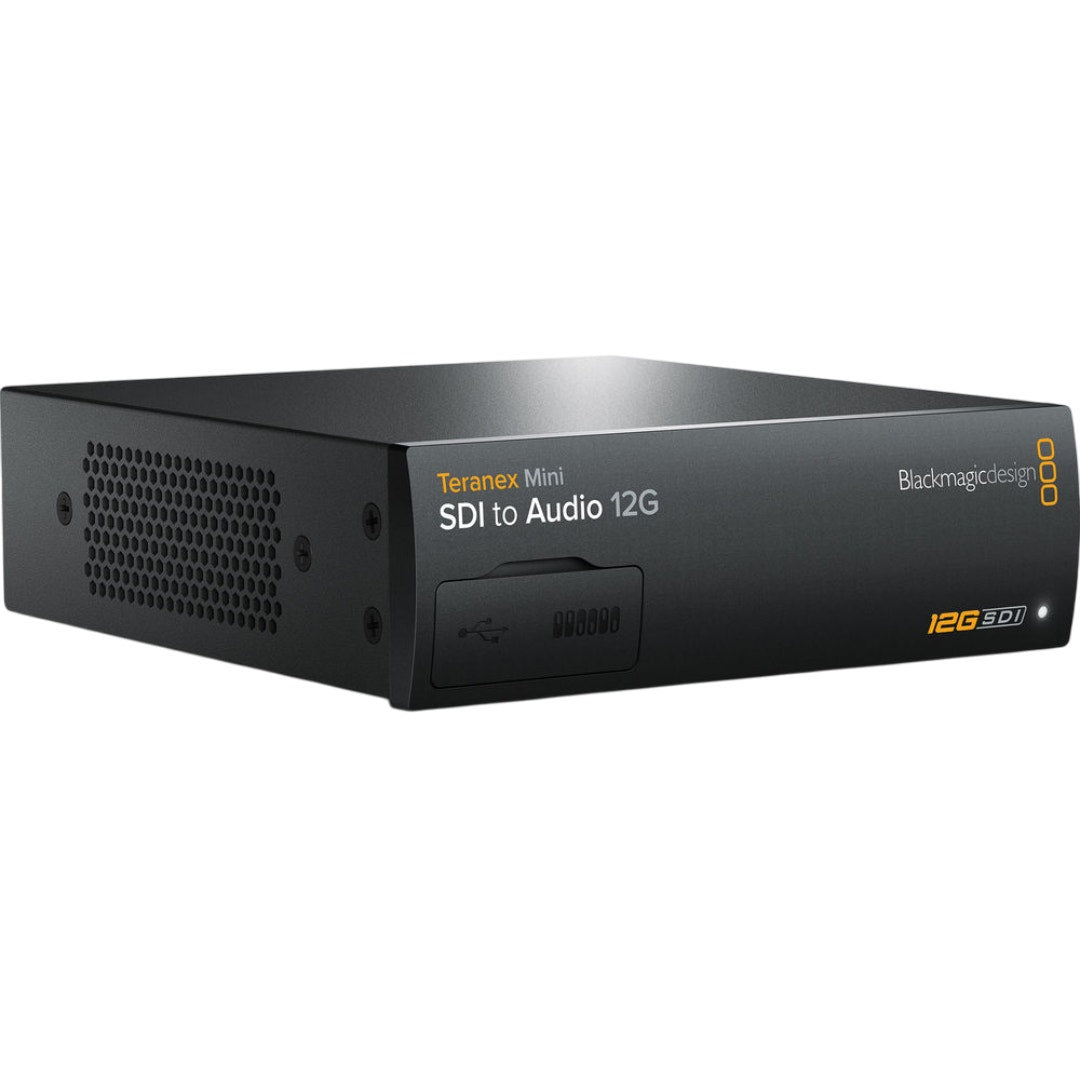

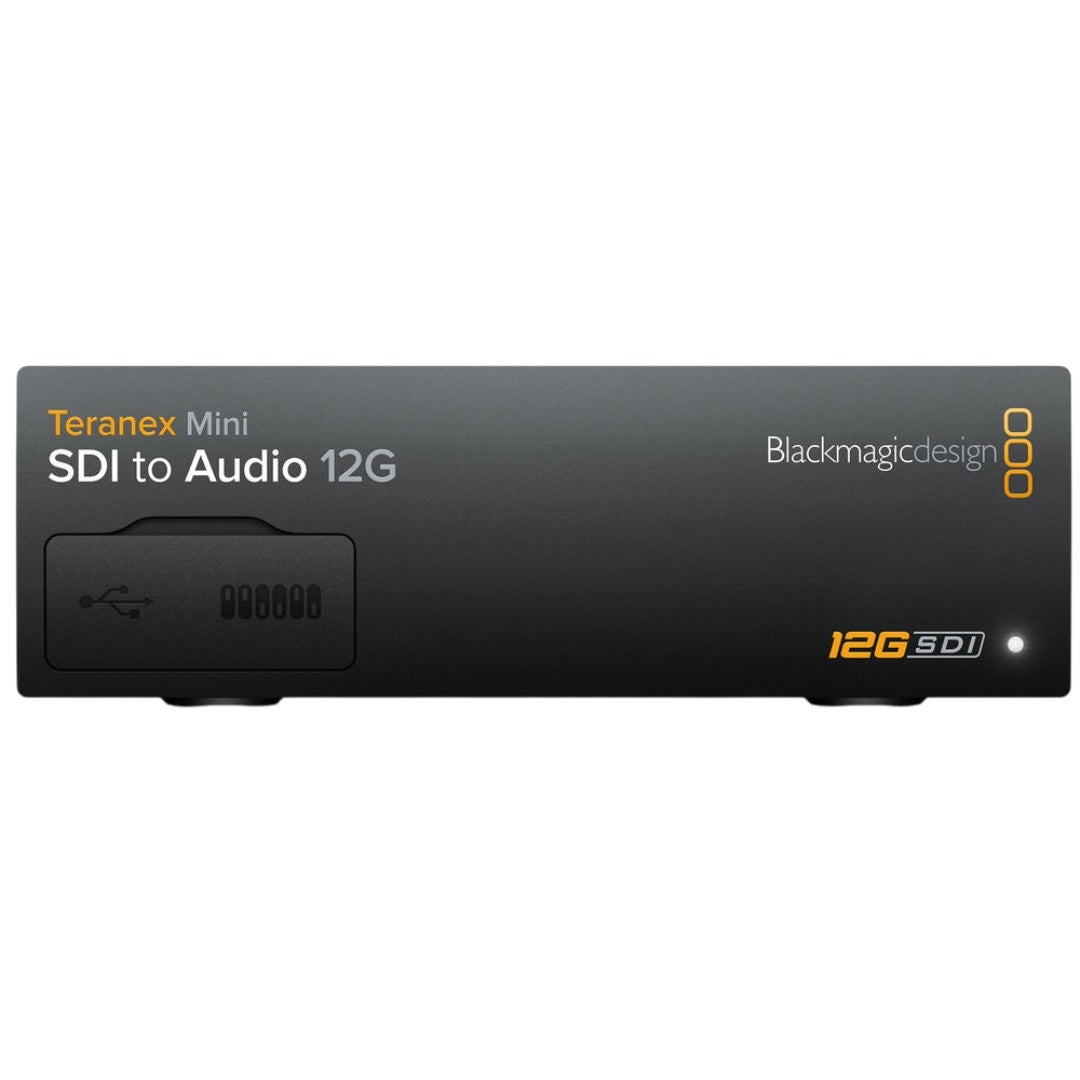

Blackmagic Design SDI-to-Audio 12G Teranex Mini

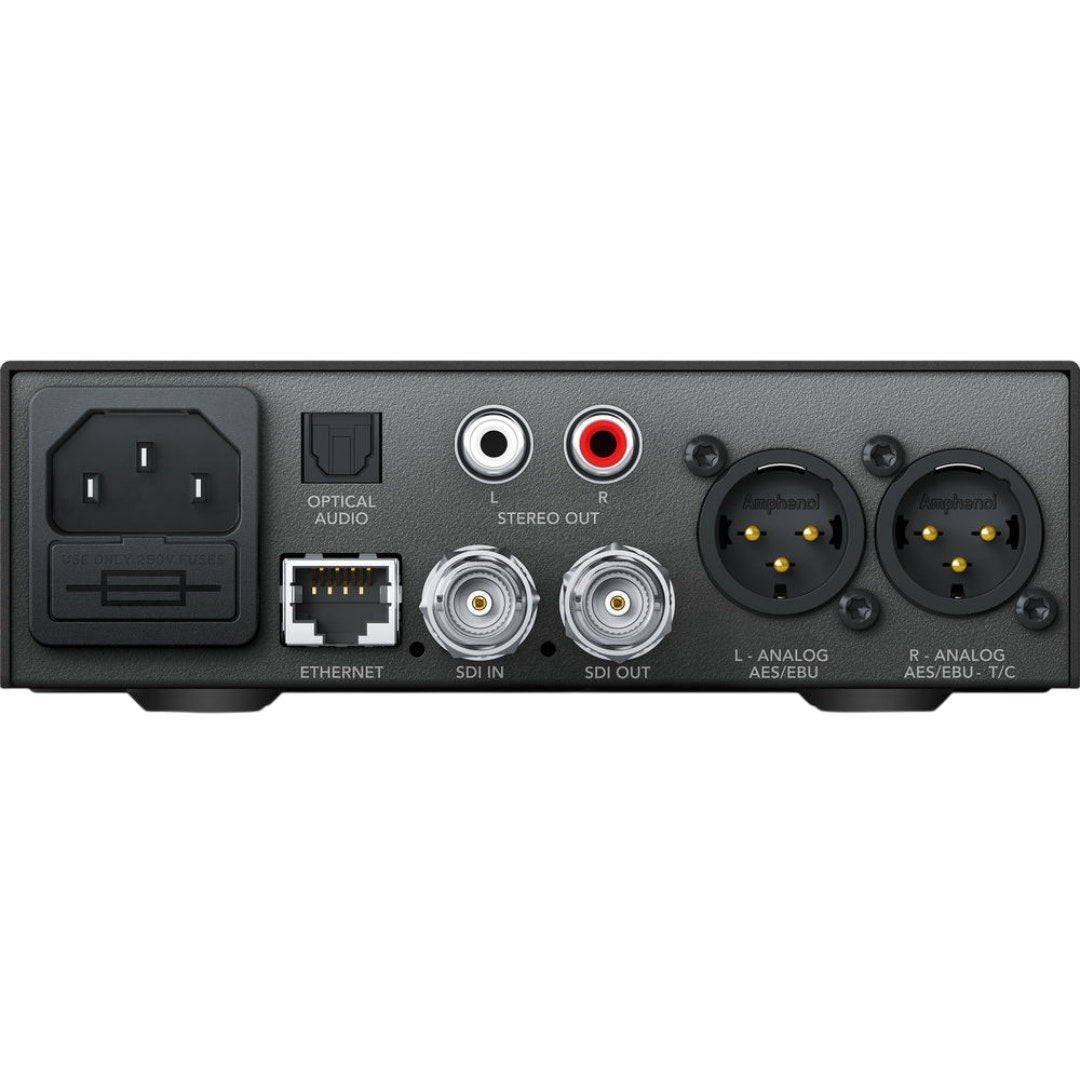

Technical Details: Blackmagic Design Teranex Mini - SDI to Audio 12G The Blackmagic Design Teranex Mini SDI to Audio 12G Converter is a versatile tool, supporting 12G-SDI data rates and offering a range of audio output options such as analogue, AES/EBU, RCA, and S/PDIF connections. It's equipped with a 12G-SDI input for 4K DCI 4096x2160p signals and can de-embed audio for output through professional XLR, RCA, or TOSLINK ports, ensuring compatibility with a wide array of mixers, monitors, and other audio equipment. The converter also provides a 12G-SDI output for signal routing, capable of supporting extended cable lengths-up to 70 ft for 6G-SDI and over 250 ft for 12G-SDI.

Its compact design is perfect for portable use in live events or broadcast trucks, and up to three units can be accommodated in an optional 1U rack tray. The XLR connections can be switched between analogue and AES/EBU, and the Ethernet port facilitates remote control or PoE functionality. With a built-in 90-240V power supply, there's no need for external adapters, just a standard IEC cable.

Intelligent heat dissipation ensures optimal performance. Key Features: Supports 12G-SDI data rates Offers a range of audio output options Provides 12G-SDI output for signal routing Compact design for portable use Built-in 90-240V power supply The Teranex Mini features an optional Smart Panel with an LCD, spin knob, and control buttons for monitoring audio levels, timecode, and video standards, replacing the standard front panel with mini switches. Its intelligent thermal design ensures efficient cooling, even in rack-mounted setups, using crossflow cooling and heat pipes to prevent overheating while minimising noise.

Remote notifications alert users to temperature issues via Ethernet or the front panel. The included Converter Utility software allows centralised management of multiple units from a Mac or Windows computer. With full SDI re-clocking and low jitter, the Teranex Mini is ideal for broadcast, post-production, and professional video applications, offering flexibility for desktop, rack, or concealed installations.

Top Three Features: Blackmagic Design Teranex Mini - SDI to Audio 12G Supports 12G-SDI data rates: This feature allows the Teranex Mini to handle high-quality video signals, making it a perfect fit for professional video applications. With this, you can be assured of seamless video transmission without any loss in quality. It's a must-have for anyone dealing with 4K DCI 4096x2160p signals.

Offers a range of audio output options: Whether you're dealing with analogue, AES/EBU, RCA, or S/PDIF connections, the Teranex Mini has got you covered. This versatility ensures compatibility with a wide array of mixers, monitors, and other audio equipment, making it a reliable tool for any audio-visual professional. Compact design for portable use: The compact design of the Teranex Mini makes it perfect for portable use in live events or broadcast trucks.

Despite its small size, it doesn't compromise on functionality, offering the same high-quality audio and video conversion as larger, less portable units. Our expert's opinion about the Blackmagic Design Teranex Mini - SDI to Audio 12G The Blackmagic Design Teranex Mini - SDI to Audio 12G is a versatile and compact converter that offers a range of audio output options and supports 12G-SDI data rates. Its compact design makes it perfect for portable use, while its built-in power supply eliminates the need for external adapters.

With its intelligent thermal design and optional Smart Panel, it's an ideal tool for broadcast, post-production, and professional video applications.
