Blackmagic Design Universal Videohub, 288

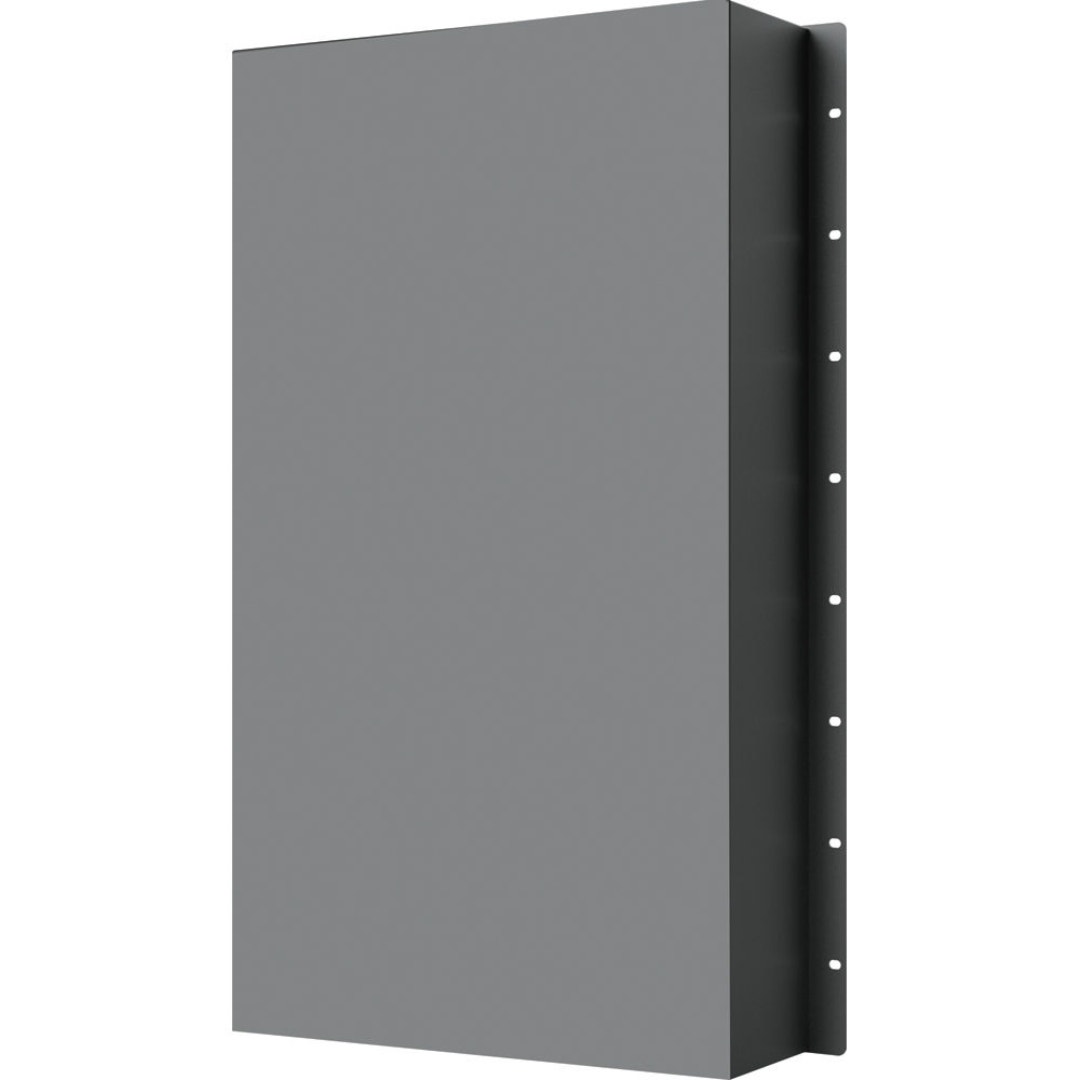

Technical Details: Blackmagic Design Universal Videohub 288 The Blackmagic Design Universal Videohub 288 is a bespoke rack frame, enabling you to construct the ultimate 3G/HD/SD deck control routing switcher. Standing at 18 rack units tall and a mere 6" deep, the Videohub 288 is engineered to accommodate a variety of SDI interface, crosspoint, and power supply cards, all upgradeable to meet the evolving needs of your application. You can incorporate up to 72 BNC SDI or optical fibre SDI interfaces, along with a single 72 x 72 or dual 288 x 288 crosspoints, and a maximum of 2 power cards.

Additional features encompass a detachable fan tray, full auto standard detection, re-clocking, 3Gb/s SDI support, 288 x 288 deck control, and ethernet/serial control. Key Features: 3G/HD/SD deck control routing switcher Accommodates variety of SDI interface, crosspoint, and power supply cards Detachable fan tray Full auto standard detection 3Gb/s SDI support Universal Videohub lets you add SDI interface cards and crosspoints for a fully redundant design that keeps working 24/7. With no electronic components on the router motherboard, every single part can be replaced simply by hot-plugging cards.

Cross-points are monitored constantly, and instantly change when a fault is detected! Router control software included free for Windows and Mac OS X. Firmware upgrade provided via included firmware updater application.

Redundant power supply options are available, as well as a GPI alarm for connecting external alarms. Router connections preserved and restored instantly at power on independently of host computer. When you're ready to upgrade, all SDI interface cards, crosspoint and power supply cards can be swapped in or out as needed.

Top Three Features: Blackmagic Design Universal Videohub 288 3G/HD/SD deck control routing switcher: This feature allows for seamless switching between different video formats, providing flexibility and efficiency in your workflow. It's perfect for live events where you need to switch between different video sources on the fly. Plus, with support for both high definition and standard definition video, it's a versatile tool for any production environment.

Accommodates variety of SDI interface, crosspoint, and power supply cards: This feature means the Videohub 288 can be customised to suit your specific needs. Whether you need more inputs, outputs, or power, you can simply add the necessary cards. This makes the Videohub 288 a future-proof investment that can grow with your business.

Full auto standard detection: This feature ensures that the Videohub 288 can automatically detect the standard of any connected video source. This means you don't have to worry about manually setting the standard for each input, saving you time and preventing errors. Our expert's opinion about the Blackmagic Design Universal Videohub 288 The Blackmagic Design Universal Videohub 288 is a game-changer for video professionals.

Its ability to accommodate a variety of SDI interface, crosspoint, and power supply cards means it can be customised to suit your specific needs. With full auto standard detection and 3Gb/s SDI support, it's a versatile tool that can handle any video format. Plus, with its detachable fan tray and 3G/HD/SD deck control routing switcher, it's designed to keep your workflow smooth and efficient.

Whether you're a live event producer or a broadcast engineer, the Videohub 288 is a reliable, future-proof investment.
