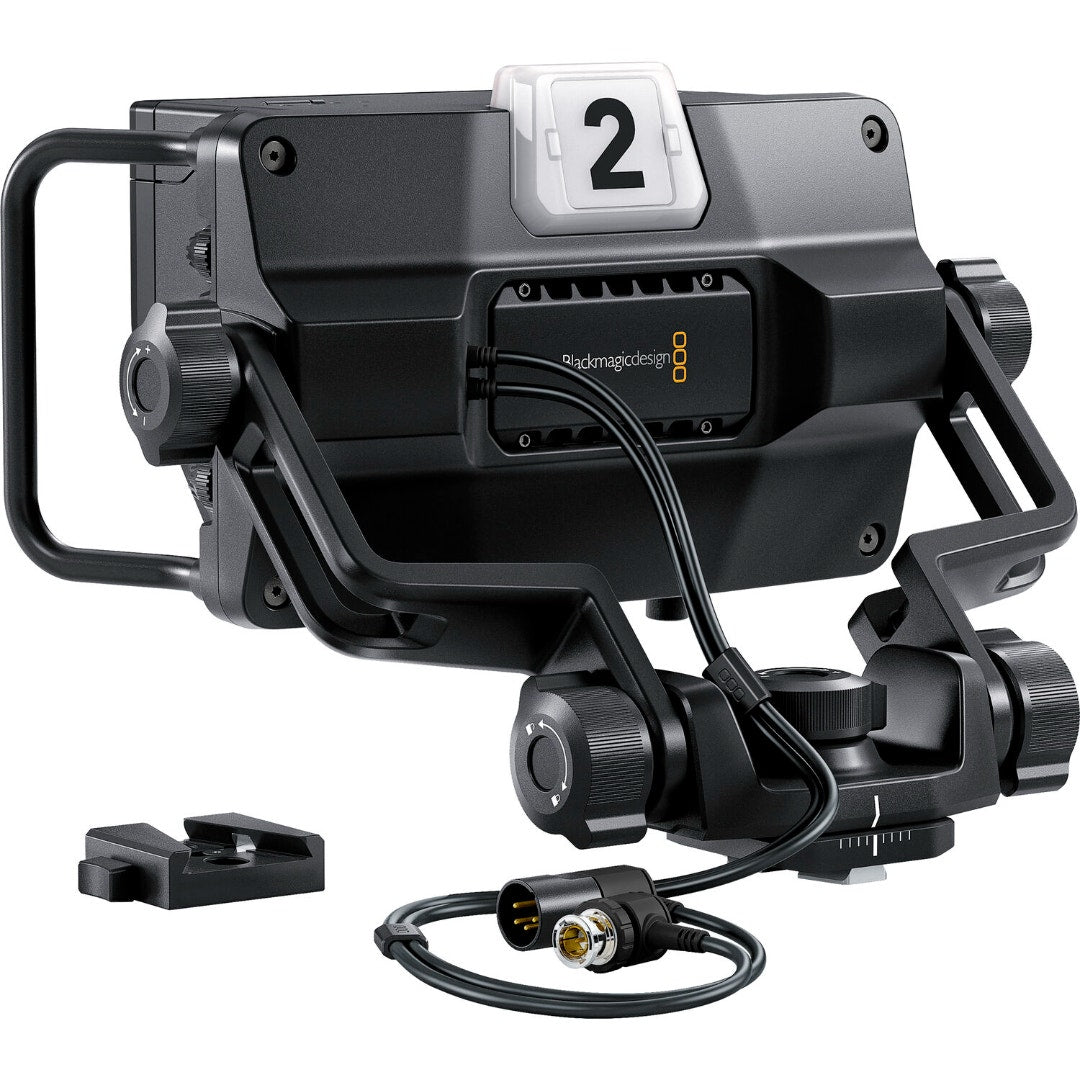

Blackmagic Design URSA Studio Viewfinder G2

Technical Details

Blackmagic Design URSA Studio Viewfinder G2 The Blackmagic Design URSA Studio Viewfinder G2 provides a high-quality, professional viewing experience. With a 7-inch screen, it offers a wide viewing angle and true glass optics for perfect focus. The adjustable LED light ring ensures that the talent can see camera status clearly.

It's equipped with physical buttons for essential settings, a tally light, and a sunshade for outdoor use. This viewfinder is designed for live production and can be used with all URSA Mini models.

Key Features

• 7-inch screen with wide viewing angle and true glass optics
• Adjustable LED light ring for clear camera status visibility
• Physical buttons for essential settings

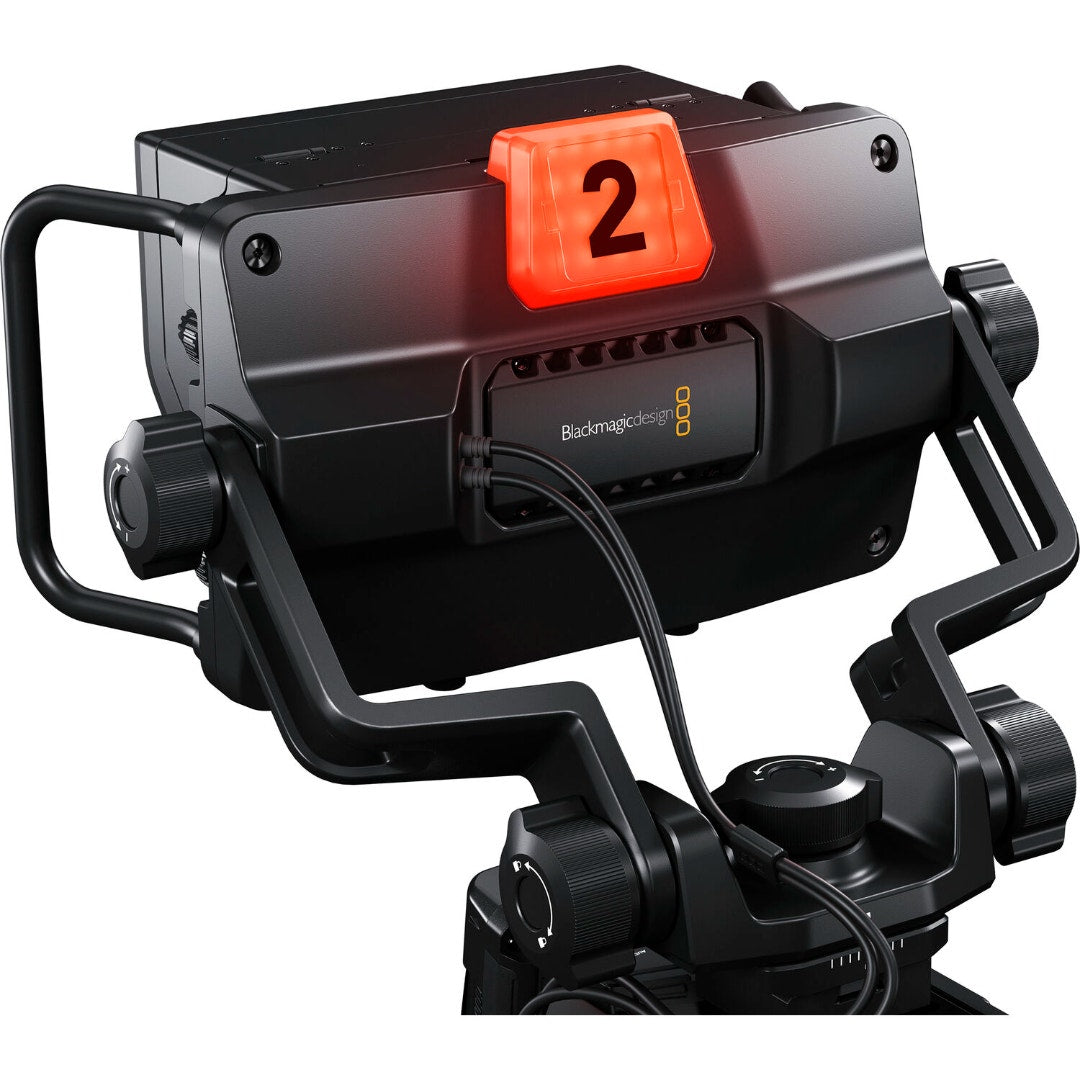

• Tally light
• Sunshade for outdoor use

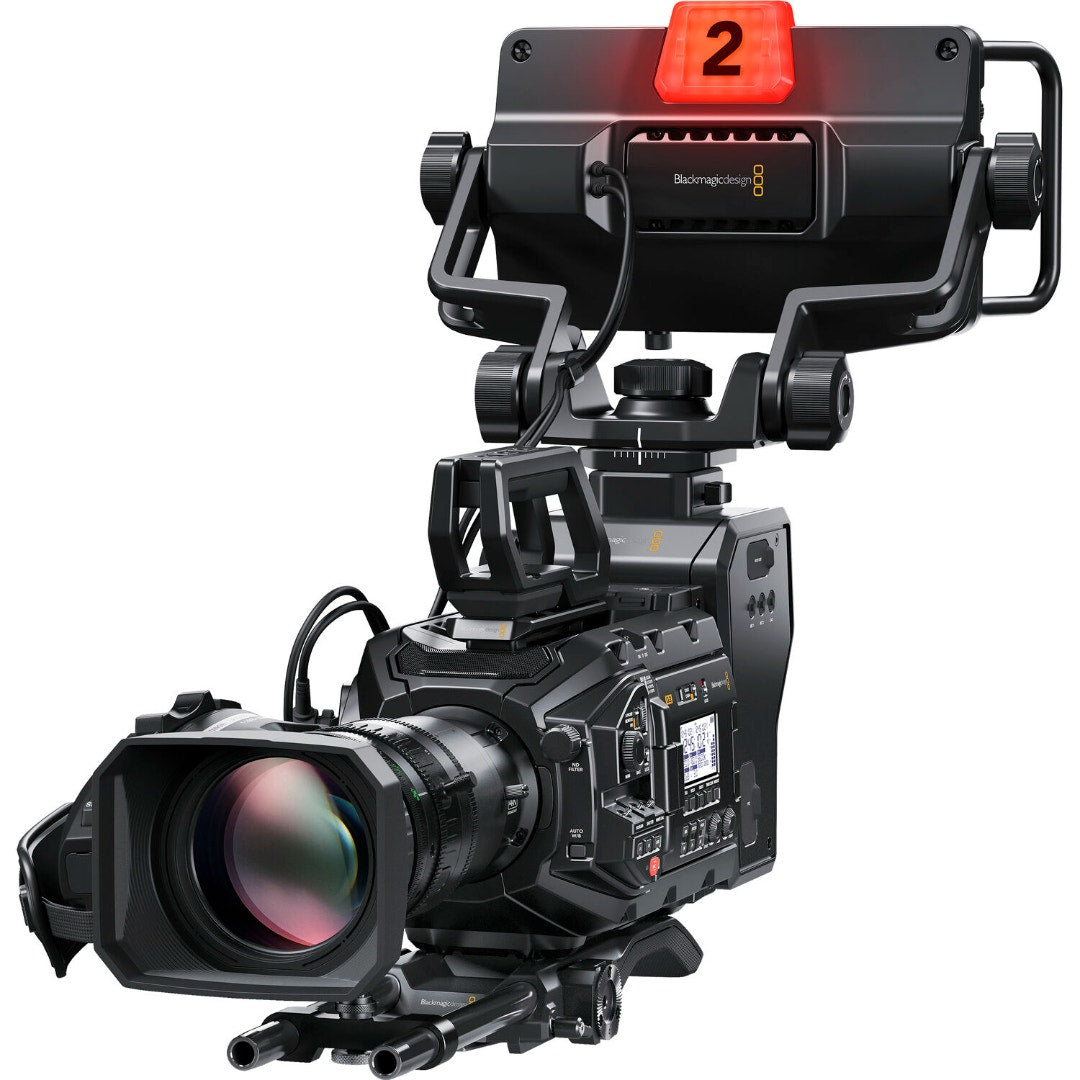

Add the Blackmagic Design 7" URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera to provide high-resolution monitoring.

The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen, and it features a detachable sun hood to prevent glare. Large side handles allow you to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.

The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors.

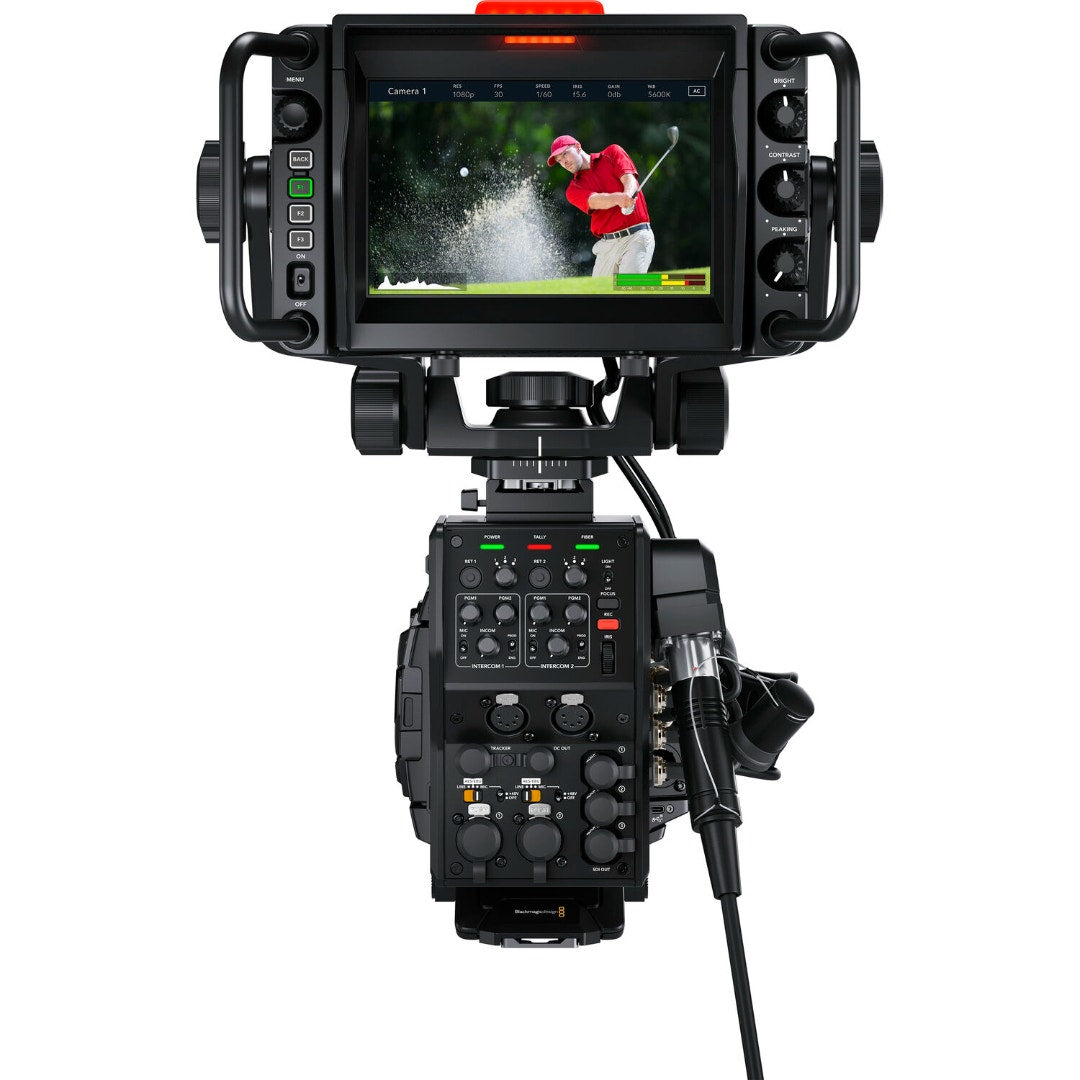

Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output.

It also features a USB Type-C input for setup and firmware updates.
