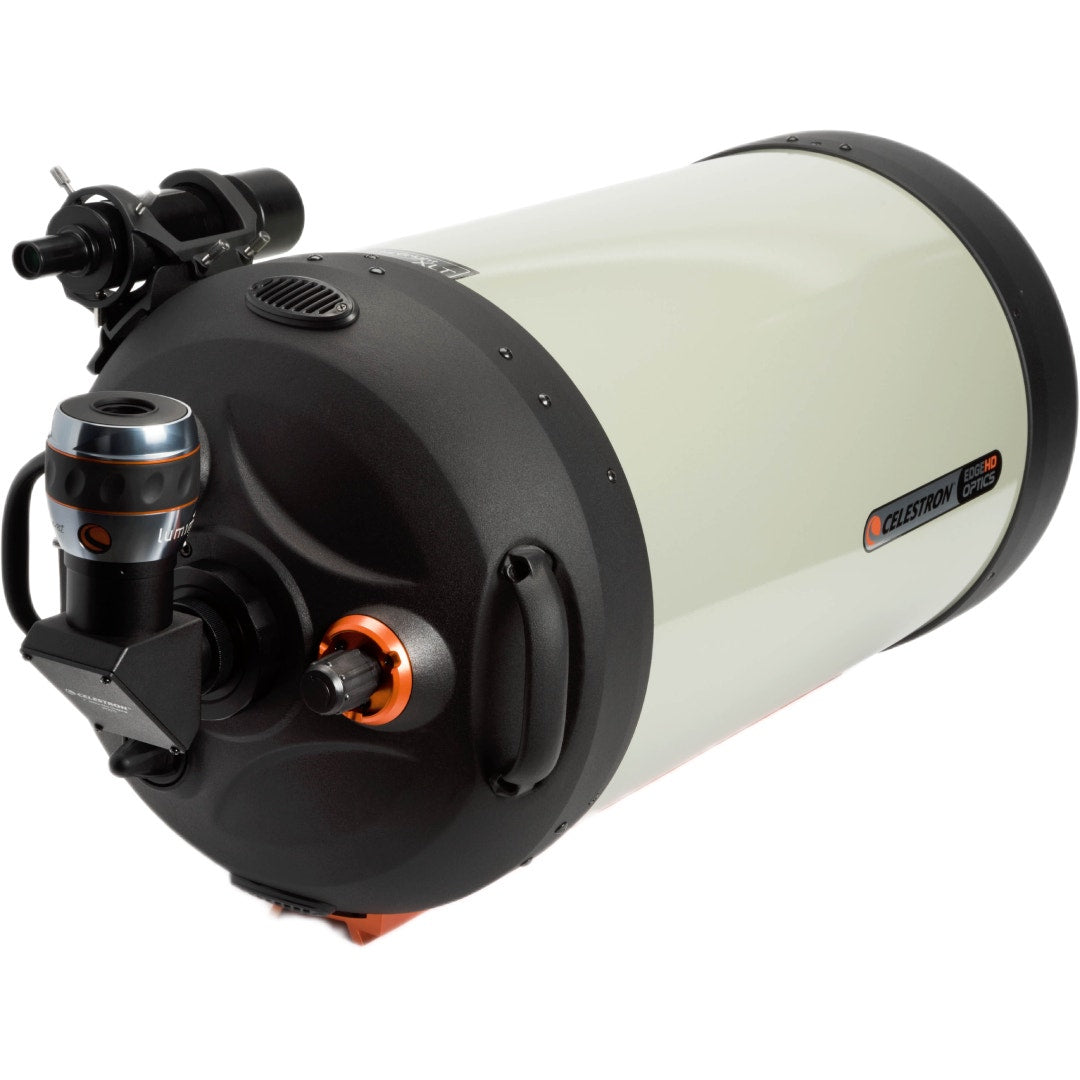

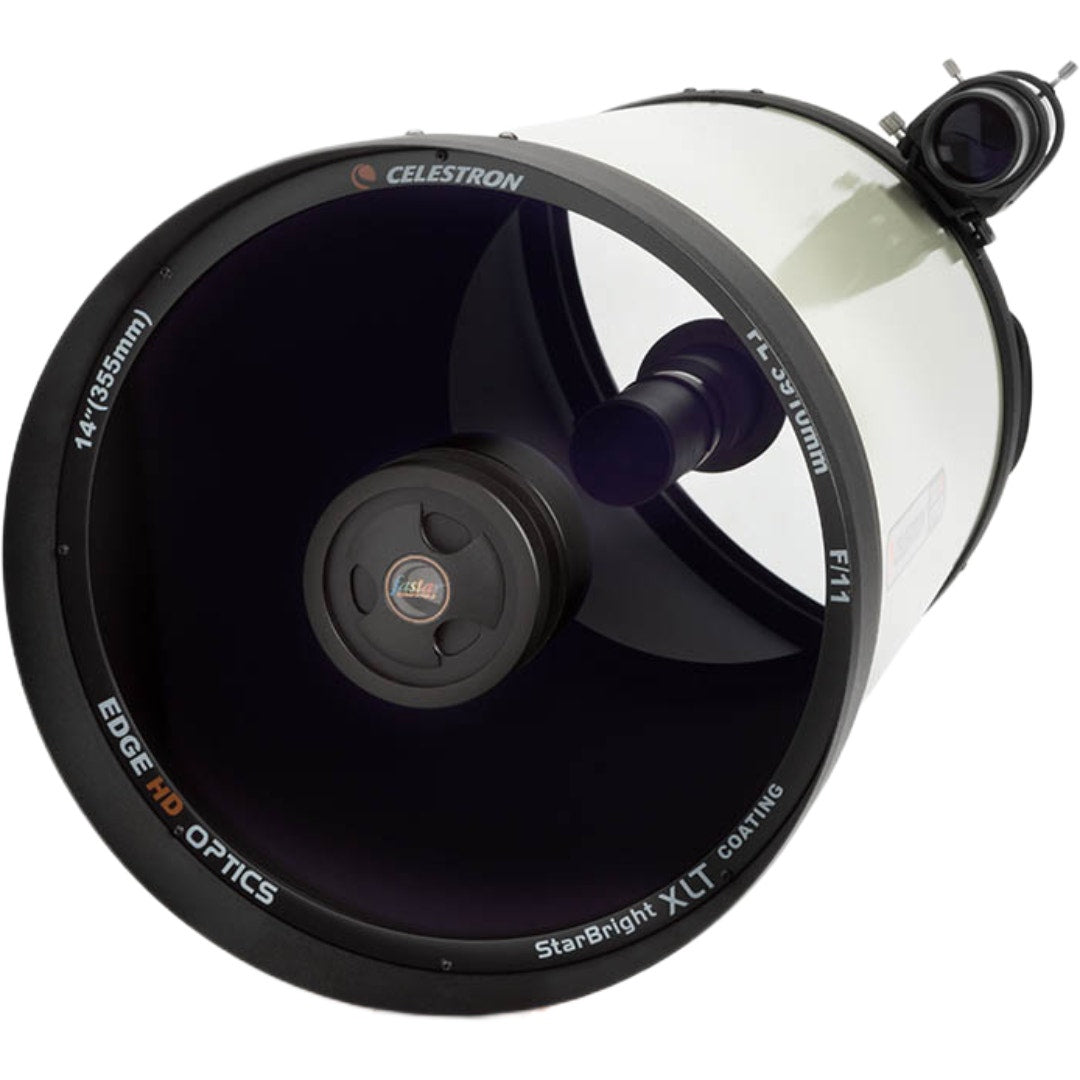

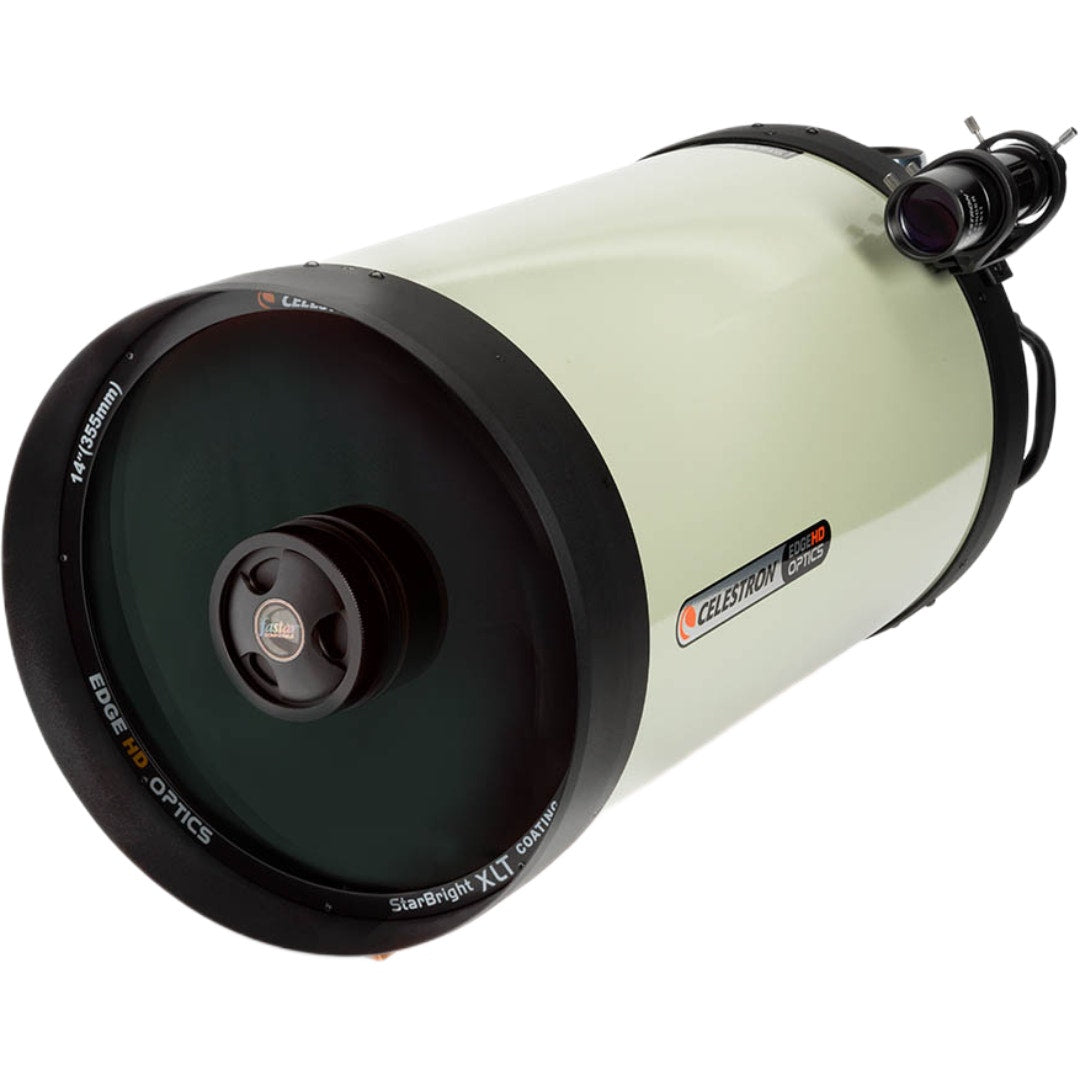

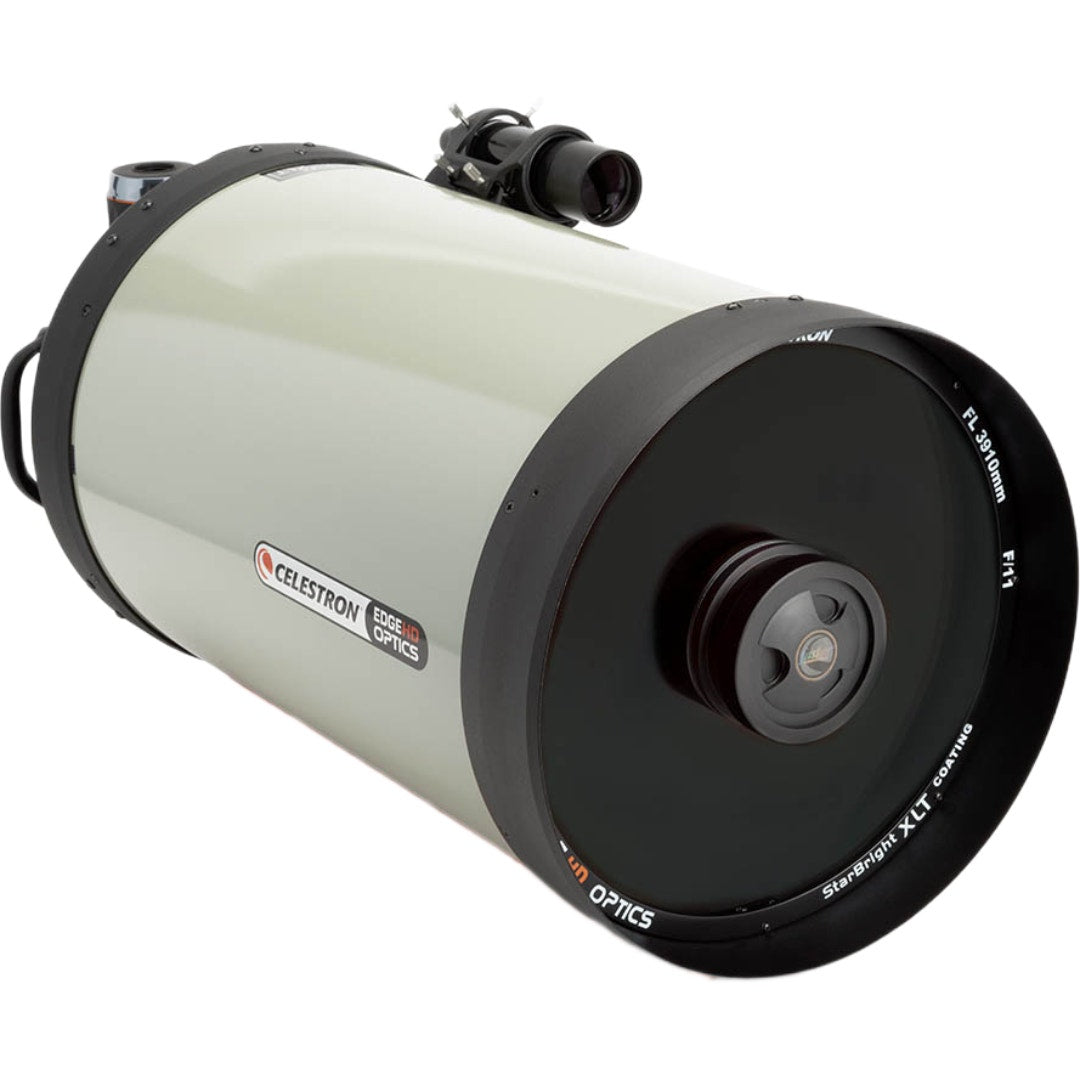

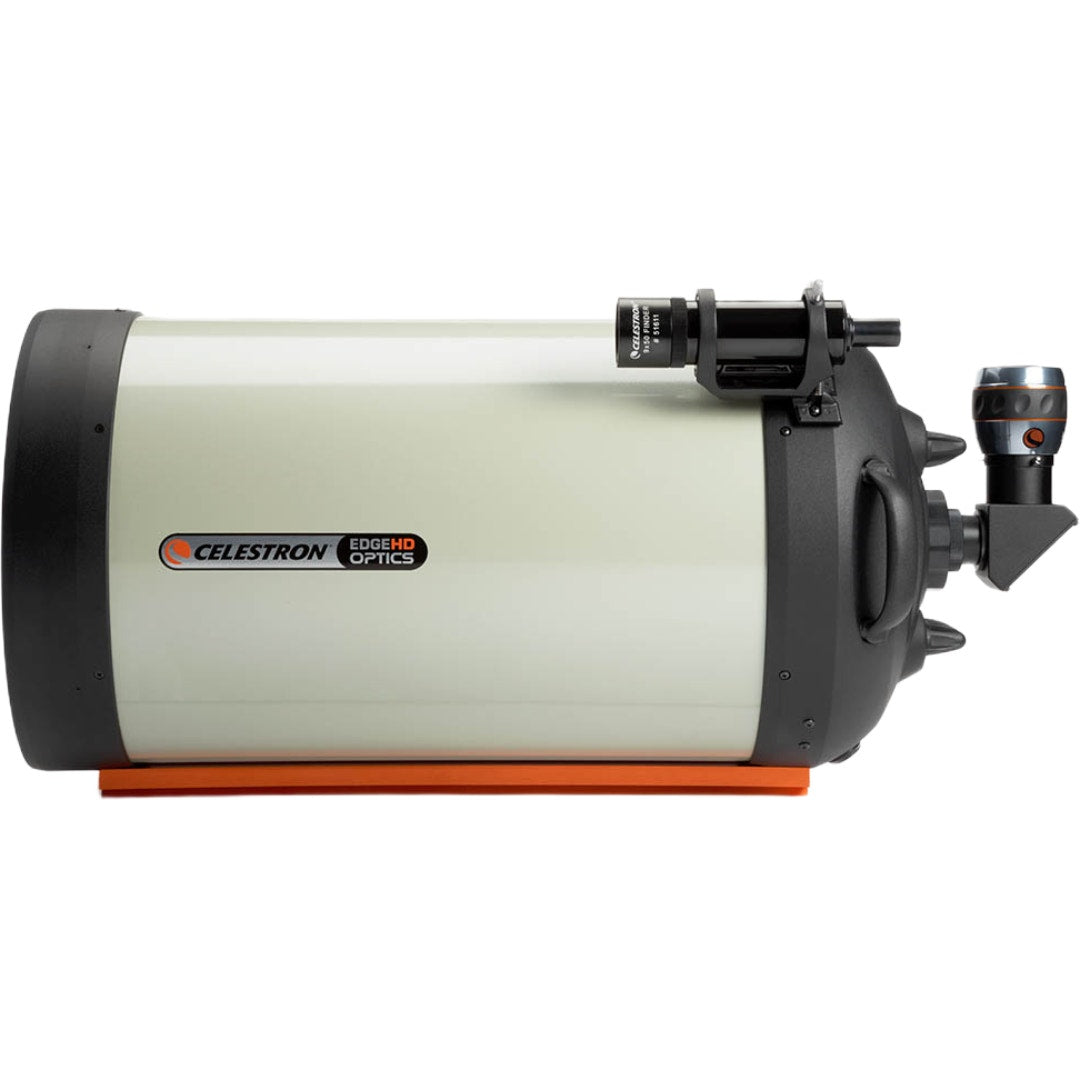

Celestron EdgeHD 14" Optical Tube Assembly CGE Dovetail

Technical Details

Celestron EdgeHD 14" Optical Tube Assembly (CGE Dovetail) The EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope, expertly crafted to produce images free from aberration across an expensive visual and photographic field of view.

The optical system's design goes beyond merely reducing off-axis star coma; it also delivers an astrograph-quality flat focal plane right to the field of view's boundary.

Key Features

• Aplanatic, flat field Schmidt-Cassegrain telescope
• Astrograph-quality flat focal plane
• Superior edge performance
• Mirror clutches and tube vents
• Fastar versatility

True Astrograph Quality

Many optical designs that advertise themselves as "astrographs" actually only produce pinpoint stars across a curved focal plane.

Whilst this may be acceptable for some visual observing, stars will appear out of focus at the edge when used with the flat chip sensor of a digital camera. EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs.

This guarantees you visibly sharp stars across some of the largest CCD chips available today.

Improved Performance

Superior edge performance not only creates rounder, more pleasing stars, but actually improves the resolution and limiting magnitude when compared to telescopes of equal aperture. With Celestron's StarBright XLT optical coatings on every surface, EdgeHD optics gives you maximum light throughput across the widest visual and photographic spectrum.

Mechanical Features

In addition to EdgeHD's optimised optical design, the telescope tube has been redesigned to make sure you get the most from your optics each and every night.

Mirror clutches: Flexible tension clutches hold the mirror in place and reduce image shift when taking long exposure astro-images. Once focused, the flexible rods allow the mirror to be held in place without putting any force or pressure on the mirror assembly, keeping the image centred in the eyepiece (or on the sensor).

Tube vents: Cooling vents located on the rear cell allow hot air to be released from behind the primary mirror.

Each vent has an integrated 50-mesh filter guaranteed to let warm air out without letting dust in.

Fastar versatility: EdgeHD is the most versatile imaging telescope available today. At its native f/11, you can achieve the image scale necessary to capture the smallest of deep sky objects.

Add the optional reducer lens custom-designed for your size EdgeHD tube and you can increase your field of view without sacrificing optical performance. A Barlow gives you added power for high-resolution planetary, lunar and solar imaging.

All EdgeHD optical tubes are Fastar-compatible, allowing the secondary mirror to be removed and replaced with a third party lens accessory for ultra-fast f/2 wide field imaging.

Individually Tested

Every EdgeHD that ships has been tested not only for the surface quality of each optical component, but also with a camera and artificial star to ensure the imaging system meets our rigid quality assurance.

This final acceptance test confirms the EdgeHD will perform in the field and deliver high-quality astroimages.

Top Three Features

Celestron EdgeHD 14" Optical Tube Assembly (CGE Dovetail)

Aplanatic, flat field Schmidt-Cassegrain telescope: This feature ensures that the EdgeHD produces images free from aberration, providing you with clear and accurate visuals.

The design of the optical system goes beyond just reducing off-axis star coma, it also delivers an astrograph-quality flat focal plane right to the field of view's boundary. This means that you can expect high-quality images across an expensive visual and photographic field of view.

Superior edge performance: The EdgeHD offers superior edge performance which not only creates rounder, more pleasing stars but also improves the resolution and limiting magnitude when compared to telescopes of equal aperture.

This feature, combined with Celestron's StarBright XLT optical coatings on every surface, provides maximum light throughput across the widest visual and photographic spectrum, enhancing your viewing experience. Fastar versatility: The EdgeHD is the most versatile imaging telescope available today. With its native f/11, you can achieve the image scale necessary to capture the smallest of deep sky objects.

Additionally, all EdgeHD optical tubes are Fastar-compatible, allowing the secondary mirror to be removed and replaced with a third party lens accessory for ultra-fast f/2 wide field imaging, giving you the flexibility to adapt to any viewing conditions.

Our expert's opinion about the Celestron EdgeHD 14" Optical Tube Assembly (CGE Dovetail)

The Celestron EdgeHD 14" Optical Tube Assembly (CGE Dovetail) is a remarkable piece of equipment for any astronomy enthusiast.

This aplanatic, flat field Schmidt-Cassegrain telescope is expertly crafted to produce images free from aberration across an expensive visual and photographic field of view.

With features like superior edge performance, Fastar versatility, and mechanical features like mirror clutches and tube vents, this telescope is designed to deliver high-quality astroimages. Every EdgeHD that ships has been tested for the surface quality of each optical component, ensuring the imaging system meets rigorous quality assurance.

This telescope is not just a purchase, but an investment in a tool that will provide you with stunning visuals of the cosmos for years to come.
