Celestron DX NexYZ Kit

Key Features

• Patented NexYZ Smartphone Adapter
• Bluetooth Shutter Release Remote
• Three-axis adjustment
• Compatibility with a wide range of smartphones and optical devices
• Quick and easy setup and adjustments

If you are looking to make a start in astrophotography or digiscoping, the NexYZ DX Kit serves as an excellent starting point. It provides all the essentials for capturing crisp, intricate images and video, including the highly favoured NexYZ smartphone adapter and a Bluetooth shutter release remote.

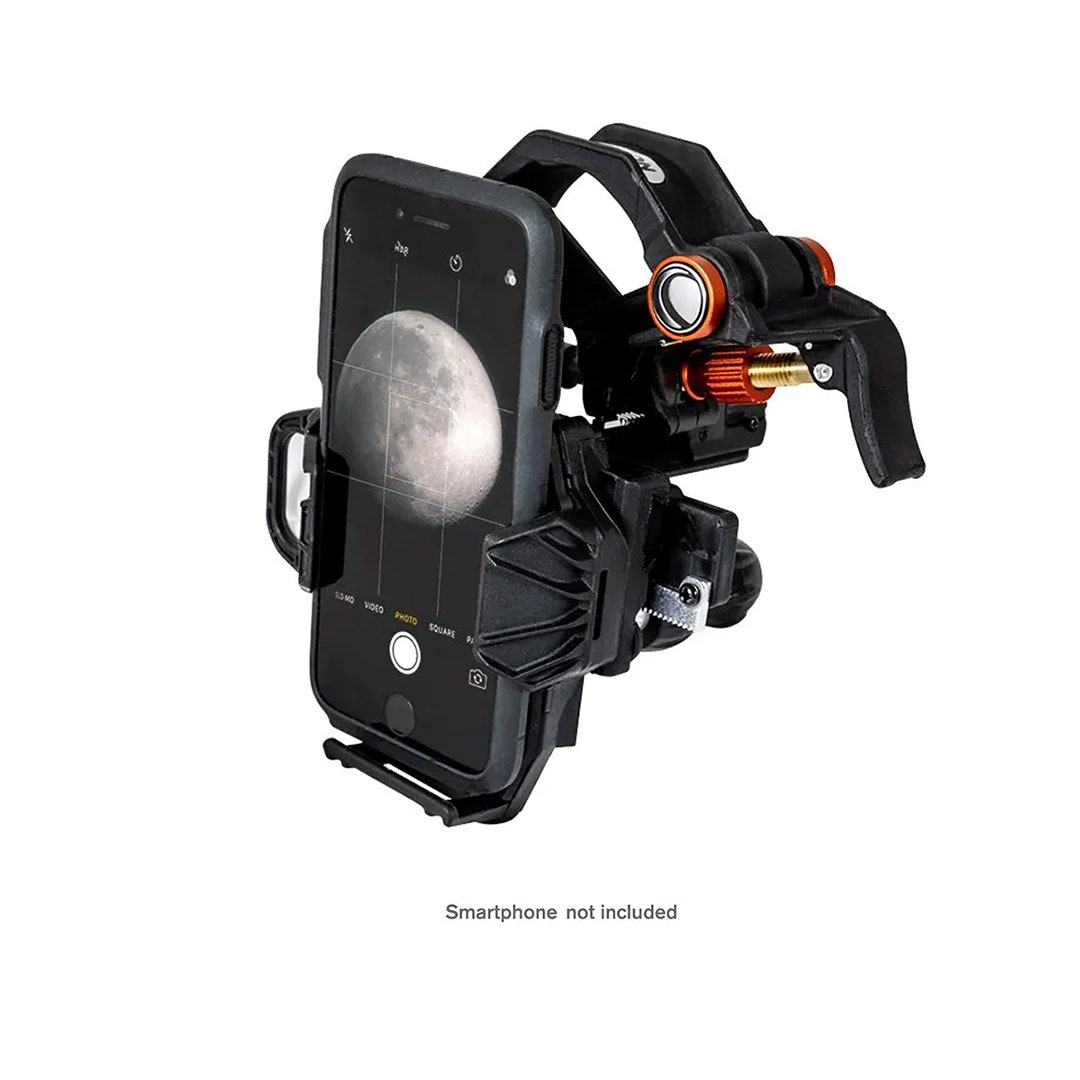

Patented NexYZ Smartphone Adapter

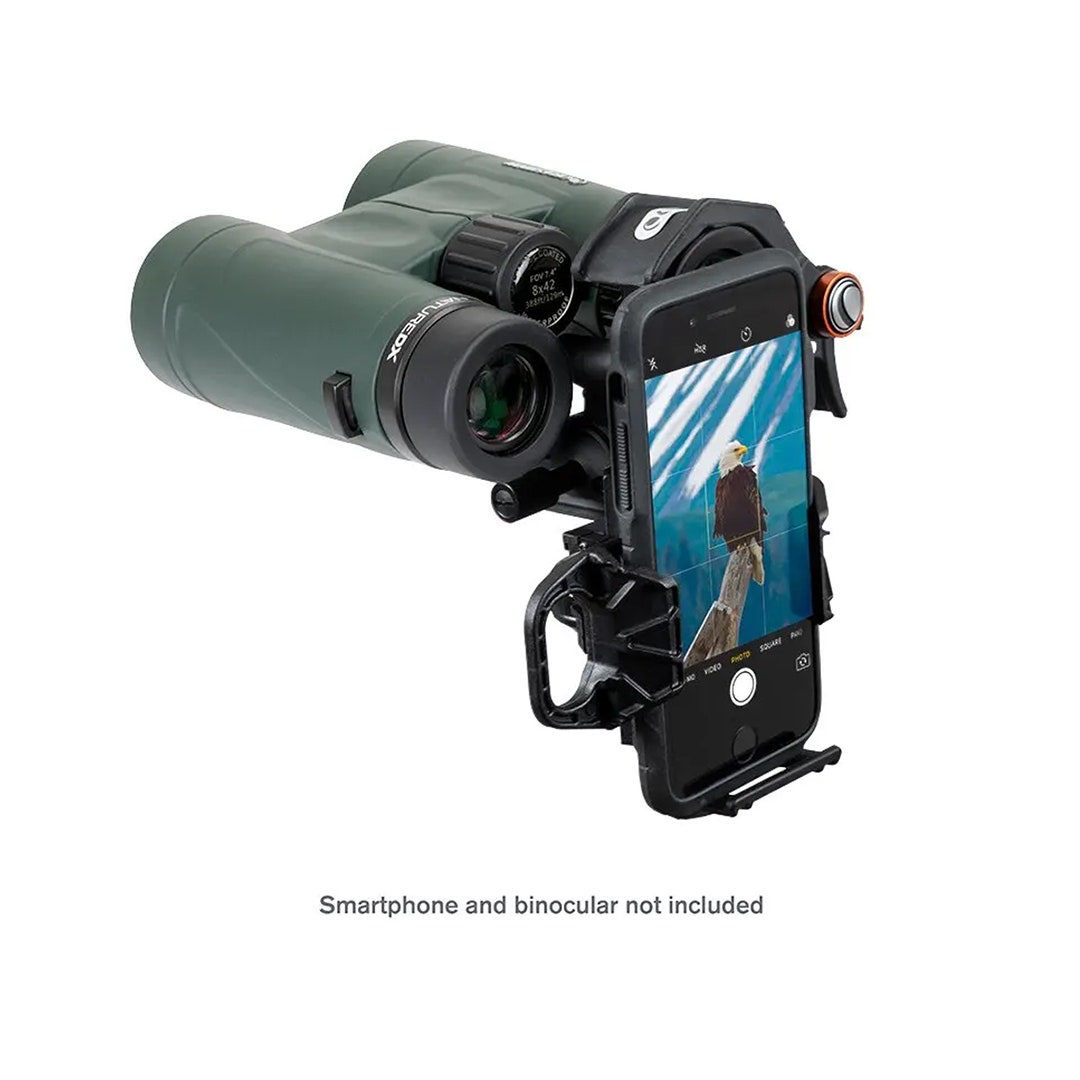

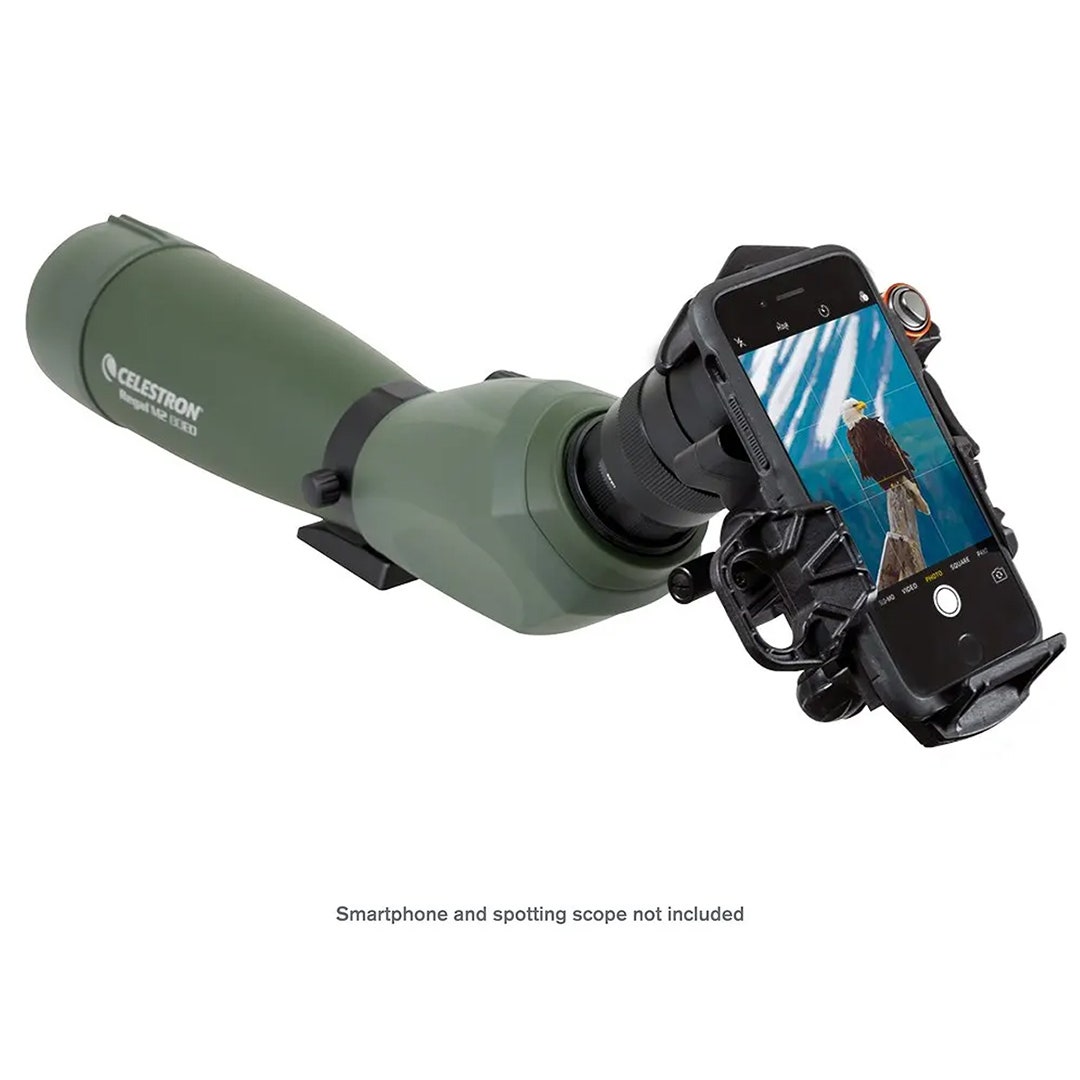

The NexYZ fits any eyepiece from 35mm to 60mm in diameter, including telescopes equipped with 31.75mm or 50.8mm eyepieces, spotting scopes, monoculars, and binoculars. NexYZ also attaches to microscopes with the addition of an included adapter ring, which takes the usable diameter down to 25mm, the size of a standard microscope eyepiece.

The NexYZ DX Kit accommodates a wide range of smartphones including the larger "phablets" like the iPhone 8 Plus and latest Samsung Galaxy devices. The phone platform is fully adjustable and can fit any device—usually with the case still on. The secure platform stands up to the weight of these heavier devices with ease, thanks to NexYZ's strong metal spring and threaded twist lock. Should you need to tighten the tension on each axis for a customised secure connection, click the Support & Downloads tab to read our NexYZ Tension Adjustment Guide.

Bluetooth Shutter Release Remote

To capture the best image, this kit also comes complete with a Bluetooth shutter release remote, which allows you to trigger the camera's shutter on any Android or iOS smartphone without touching the device's screen or buttons. This eliminates blurriness in your images caused by the phone or telescope shaking due to pressure from pressing the button manually. Pairing your Bluetooth remote to your smartphone for the first time takes only seconds. Detailed instructions are in our quick setup guide.

Easy as X-Y-Z

What makes patented NexYZ different from other smartphone adapters? The three-axis adjustment. Most adapters rely on you placing your phone perfectly on the platform and only offer limited adjustment in two axes. But NexYZ gives you the power to place your phone on the platform, centre it over the eyepiece with the X and Y knobs, and then move up or down over the eyepiece until you have the entire field of view in your shot.

And even though this adjustment is ultra-precise, it's still quicker and easier than with other adapters. From start to finish, the process only takes about 30 seconds, including the time it takes to insert the phone into NexYZ, attach NexYZ to an eyepiece, start the camera app, and centre the camera over the eyepiece using the knobs.

Switching phones, eyepieces, or optical instruments, requires only slight adjustments to re-centre the camera over the new eyepiece. If multiple people want to capture a shot through your optic, NexYZ's simple spring-loaded clamps make it easy to remove one device and replace it with another in seconds. NexYZ is the ideal solution for star parties and group bird walks where everyone wants their own shot of the action.

You can also switch your image from portrait to landscape simply by turning the padded eyepiece clamp and readjusting the X-, Y-, and Z-axis to realign your phone with the eyepiece.

NOTE: NexYZ is compatible telescopes, spotting scopes, binoculars, monoculars, and microscopes. It does not fit riflescopes. NexYZ works with most phone cases, but if you have an especially large phone case with built-in batteries or a folio-style case, you will need to remove it.
