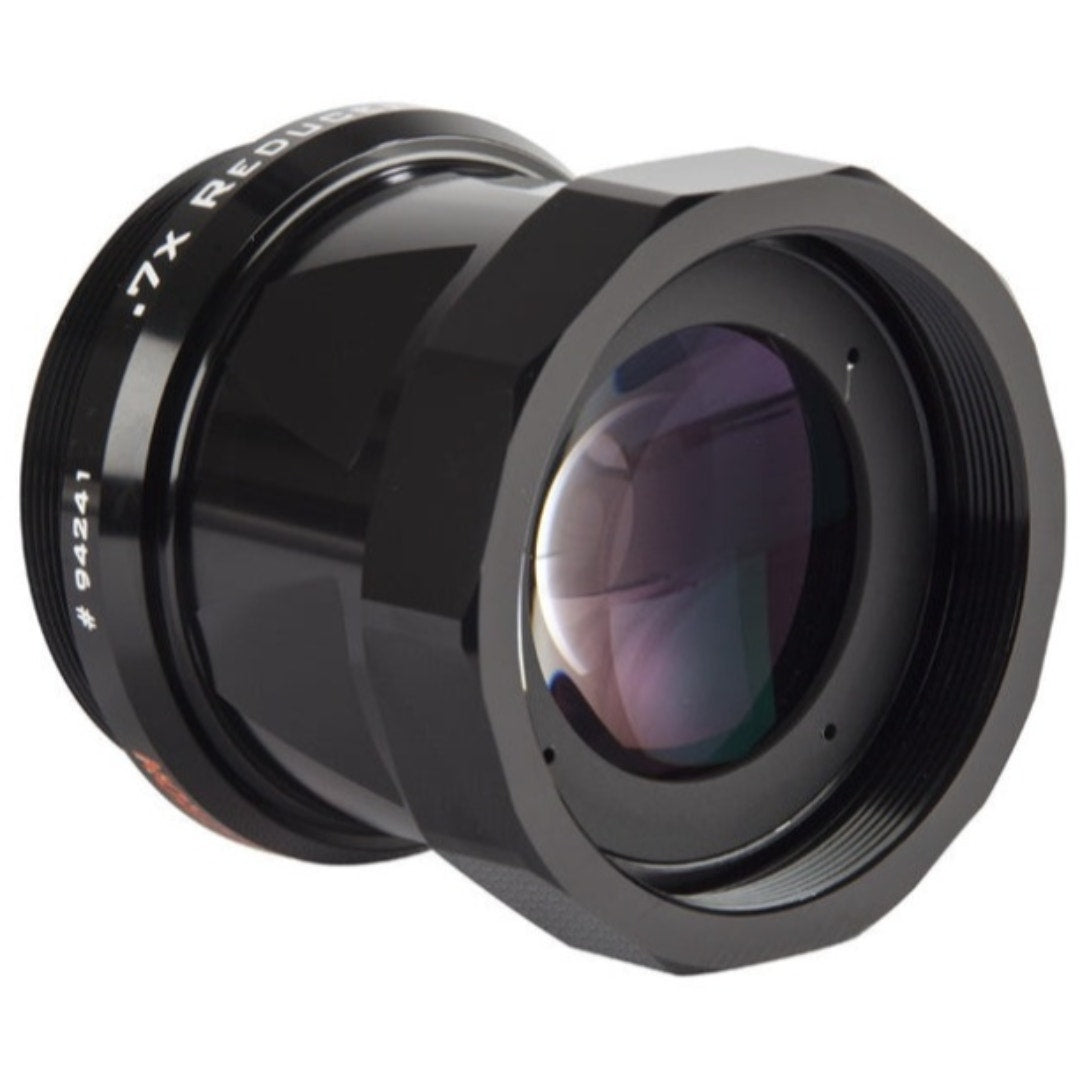

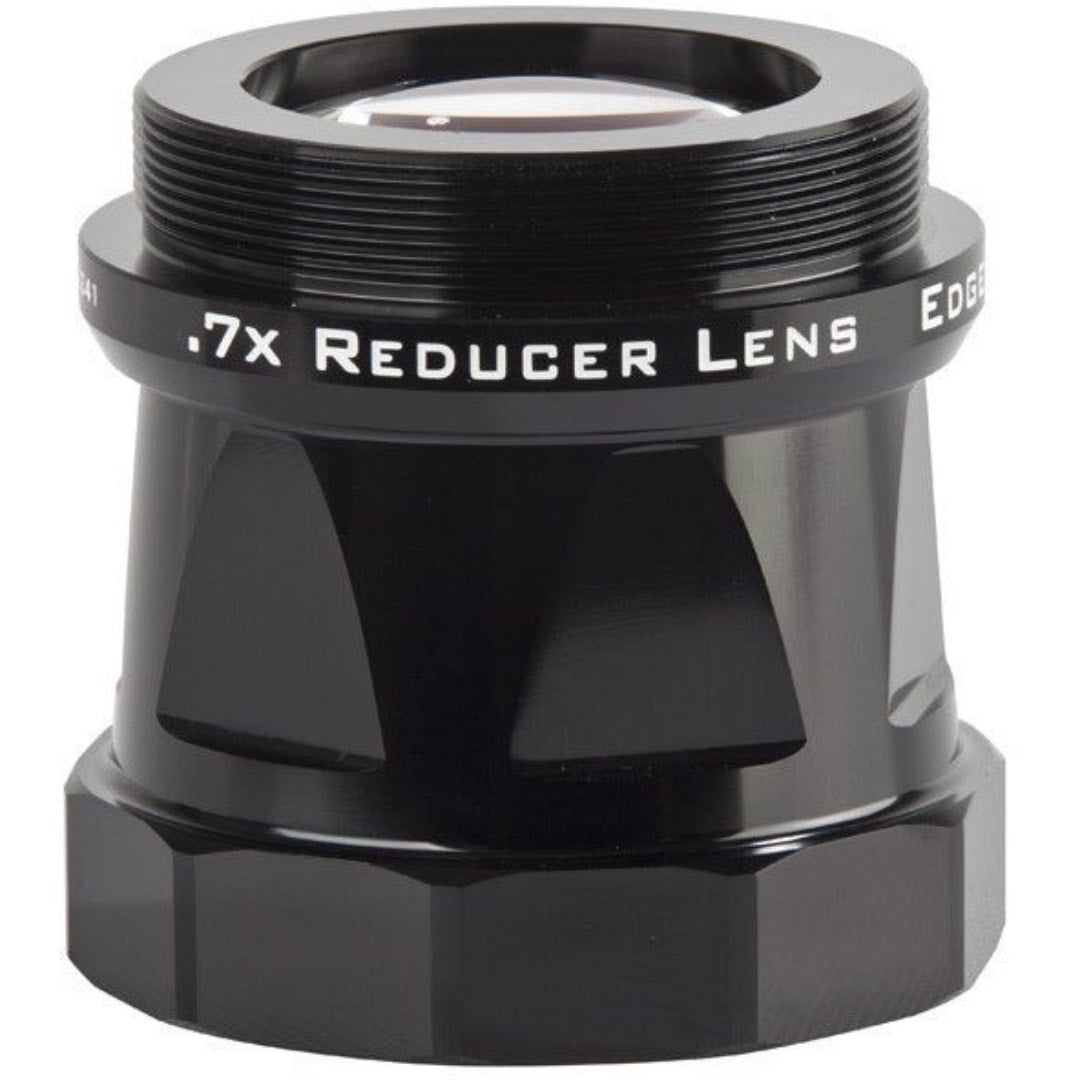

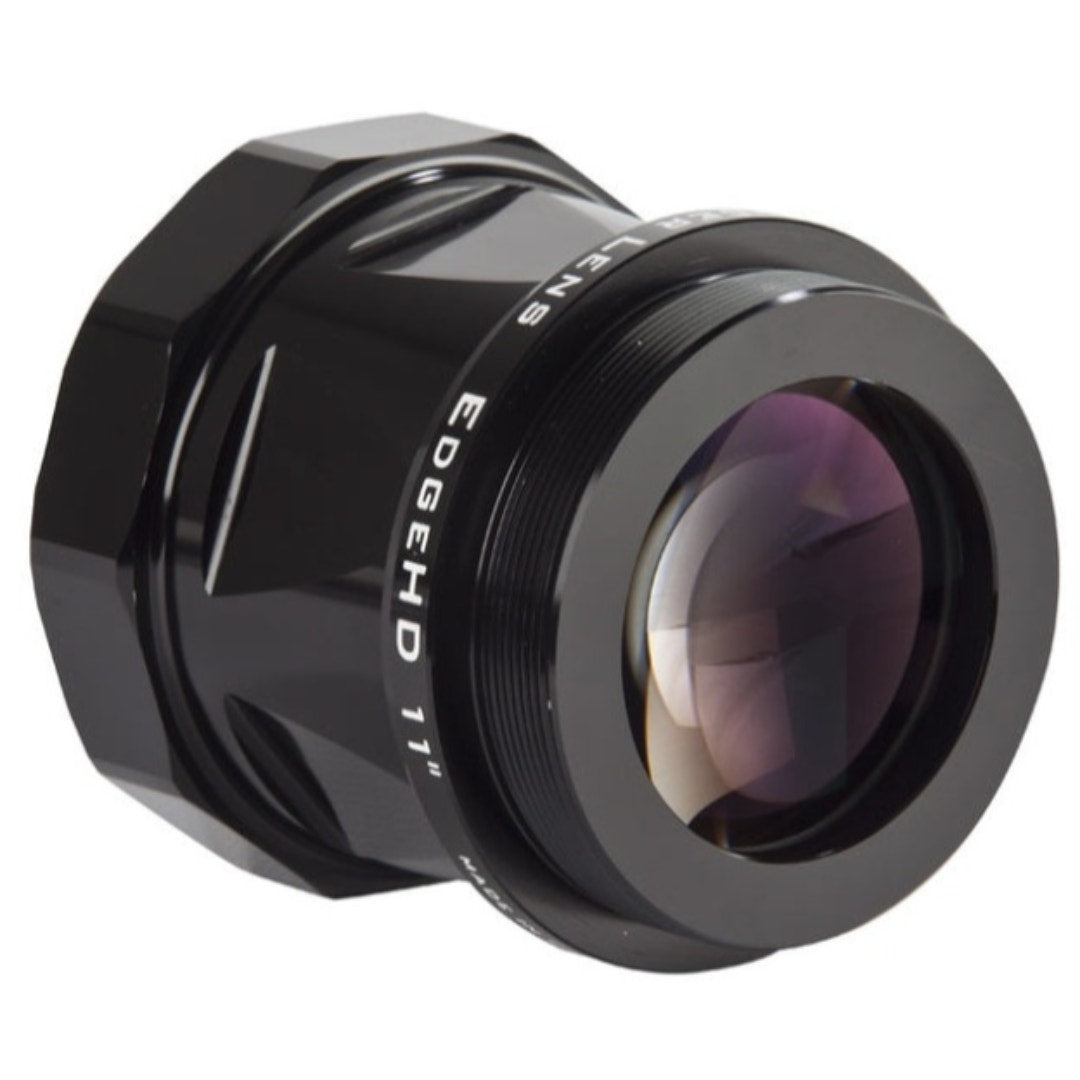

Celestron EdgeHD 1100 Reducer Lens .7x

Technical Details

Celestron Reducer Lens .7x - EdgeHD 1100 The EdgeHD 0.7x Reducer for the 11" model by Celestron boasts a meticulously crafted 5-element optical design, tailored specifically to uphold the flat-field performance of the EdgeHD system.

This is no ordinary reducer; it maintains sharpness from edge to edge whilst providing ample back-focus, guaranteeing compatibility with an extensive array of imaging accessories and camera configurations. This results in speedier imaging and a broader field of view.

Key Features

• 5-element optical design
• Maintains sharpness from edge to edge
• Provides ample back-focus
• Compatible with an extensive array of imaging accessories and camera configurations
• Results in speedier imaging and a broader field of view
• Advanced Optical Glass and Coatings

High-index optical elements, including extra-low dispersion and rare-earth lanthanum glass, provide excellent contrast and minimise chromatic aberration.

All air-to-glass surfaces are fully multi-coated to maximise light transmission and improve colour accuracy. Blackened lens edges further reduce internal reflections, enhancing contrast and overall image clarity.

Full Frame Imaging Capability

With large diameter lens elements and a 60mm clear aperture, the reducer produces an optimised 42mm image circle suitable for full-frame sensors and large CCD cameras.

It threads directly onto the 3.25" rear cell of the EdgeHD optical tube, reducing mechanical vignetting and enabling the use of off-axis guiders and other advanced accessories.

Precision Engineering and Durable Construction

The housing is CNC machined from aluminium to ensure precise alignment and spacing of the optical elements, delivering consistent optical performance.

Threaded metal covers are included on both ends of the lens assembly to protect the optics from dust and scratches when not in use.

Versatile Imaging System Integration

When paired with the Fastar capability of the EdgeHD system, this 0.7x reducer provides an ideal intermediate focal length between the native f/10 configuration and optional f/2 imaging setups.

This versatility allows astrophotographers to tailor their equipment for different targets and conditions, making the EdgeHD platform one of the most complete and adaptable imaging systems available in its class.

Top Three Features

Celestron Reducer Lens .7x - EdgeHD 1100 5-element optical design: This design ensures high-quality imaging by maintaining sharpness from edge to edge. It also provides ample back-focus, making it compatible with a wide range of imaging accessories and camera configurations. This results in faster imaging and a wider field of view.

Advanced Optical Glass and Coatings: The high-index optical elements, including extra-low dispersion and rare-earth lanthanum glass, provide excellent contrast and minimise chromatic aberration. All air-to-glass surfaces are fully multi-coated to maximise light transmission and improve colour accuracy. Blackened lens edges further enhance contrast and overall image clarity.

Full Frame Imaging Capability: The reducer's large diameter lens elements and a 60mm clear aperture produce an optimised 42mm image circle suitable for full-frame sensors and large CCD cameras. It threads directly onto the 3.25" rear cell of the EdgeHD optical tube, reducing mechanical vignetting and enabling the use of off-axis guiders and other advanced accessories.

Our expert's opinion about the Celestron Reducer Lens .7x - EdgeHD 1100

The Celestron Reducer Lens .7x - EdgeHD 1100 is a highly specialised piece of equipment, designed with a 5-element optical design that maintains sharpness from edge to edge.

It provides ample back-focus, making it compatible with a wide array of imaging accessories and camera configurations. The high-index optical elements, including extra-low dispersion and rare-earth lanthanum glass, provide excellent contrast and minimise chromatic aberration. All in all, this reducer lens is a great addition to any astrophotographer's toolkit.
