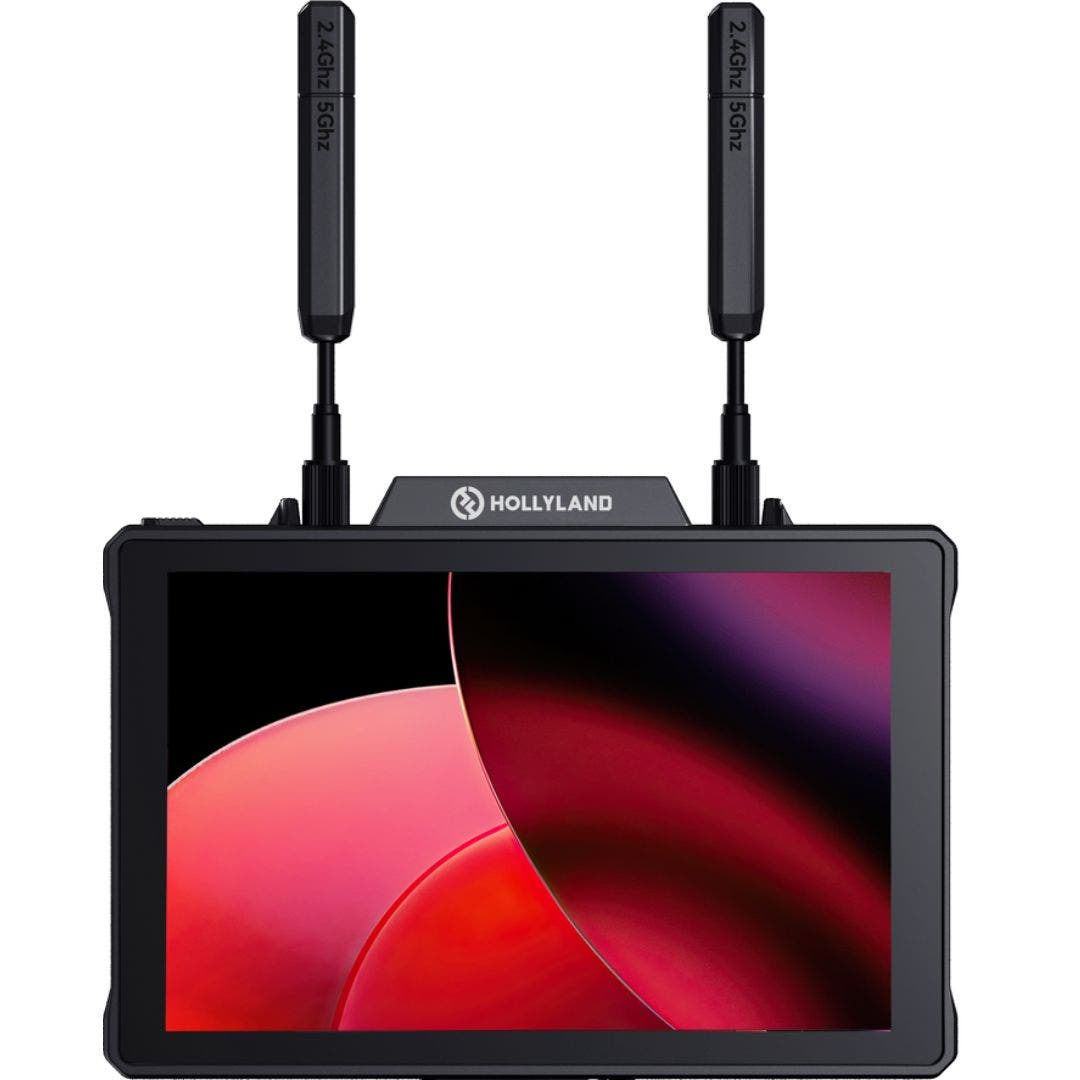

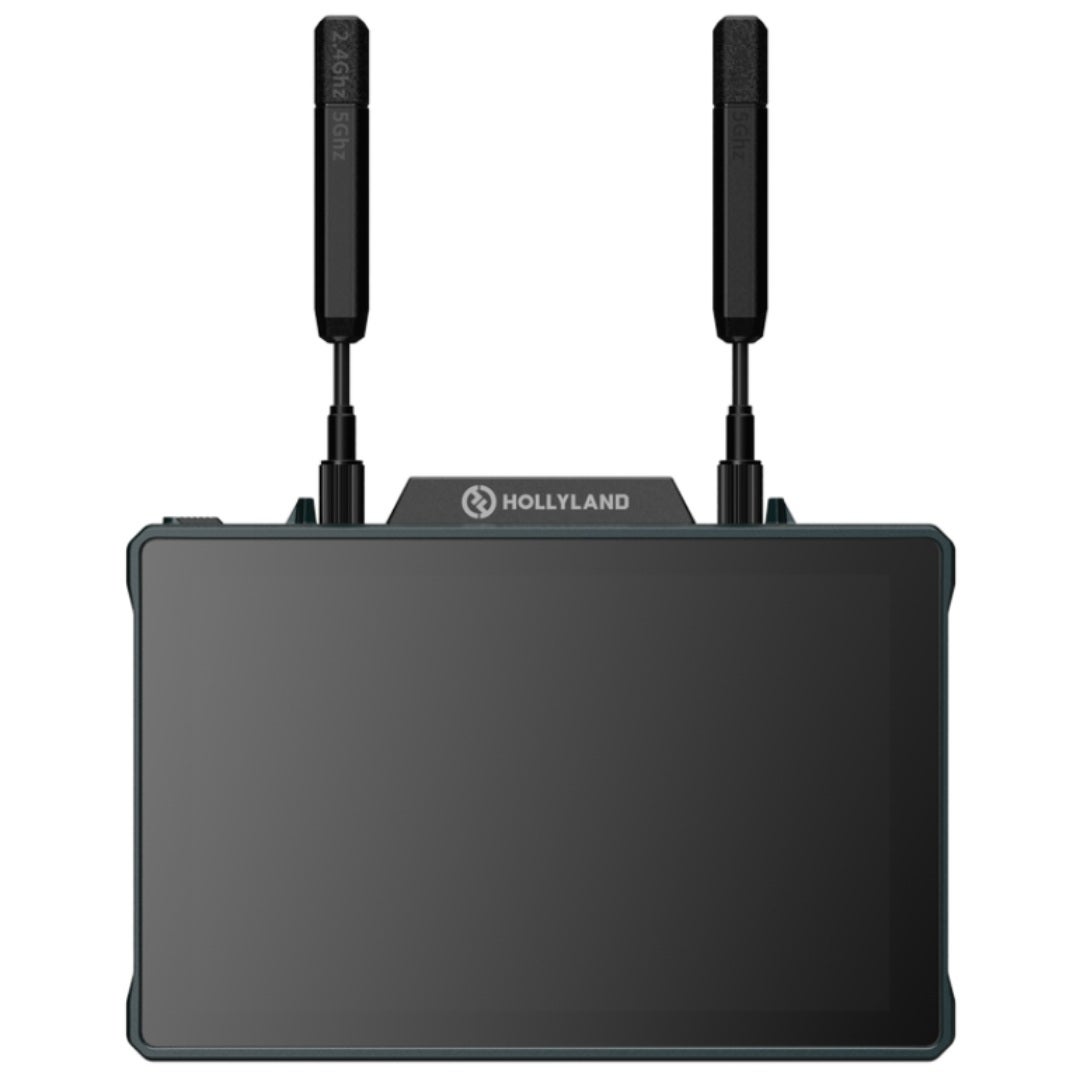

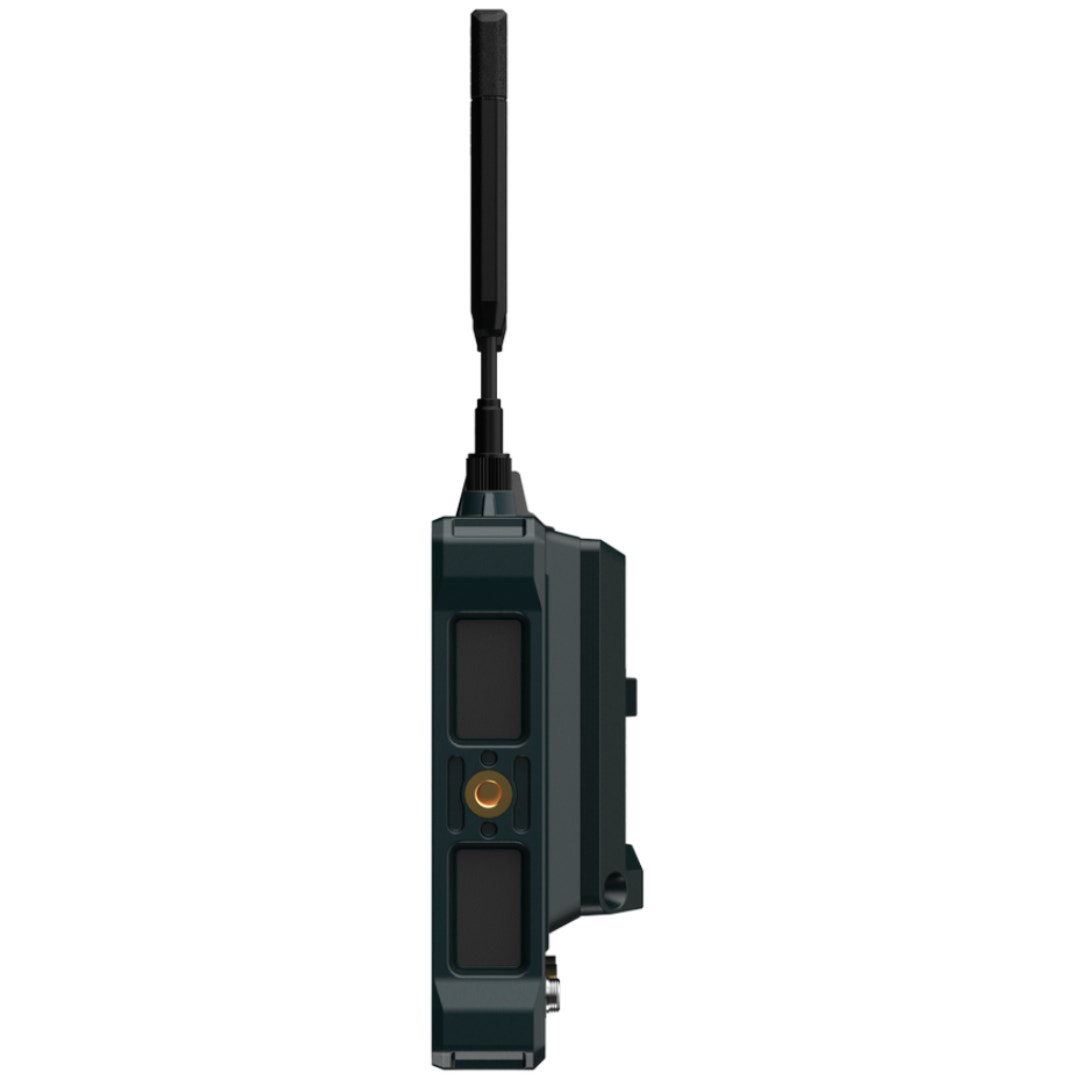

Hollyland Pyro 7 Wireless Monitor 7 inch

Display

The 7" touchscreen display has a 1920 x 1200 px resolution at 323 PPI, in a 16:9 aspect ratio.

Brightness is 1500 nits, with 1000:1 contrast.

Wireless range and modes

Operating frequencies are 2.412-2.484 GHz and 5.1-5.8 GHz. Range is 400 m line-of-sight, or 200 m in Broadcast mode.

In Broadcast mode, one transmitter connects to four receivers.

Video inputs and outputs

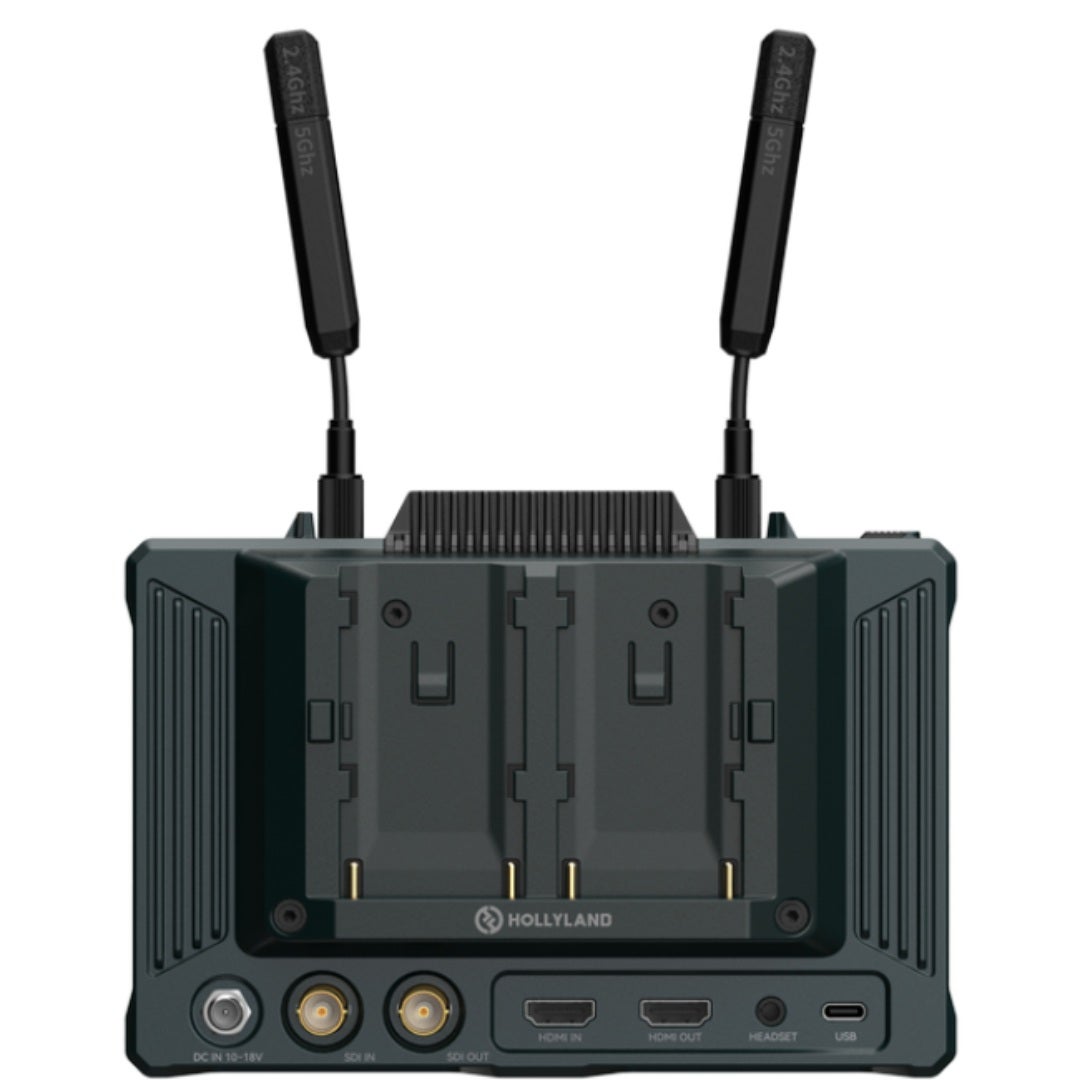

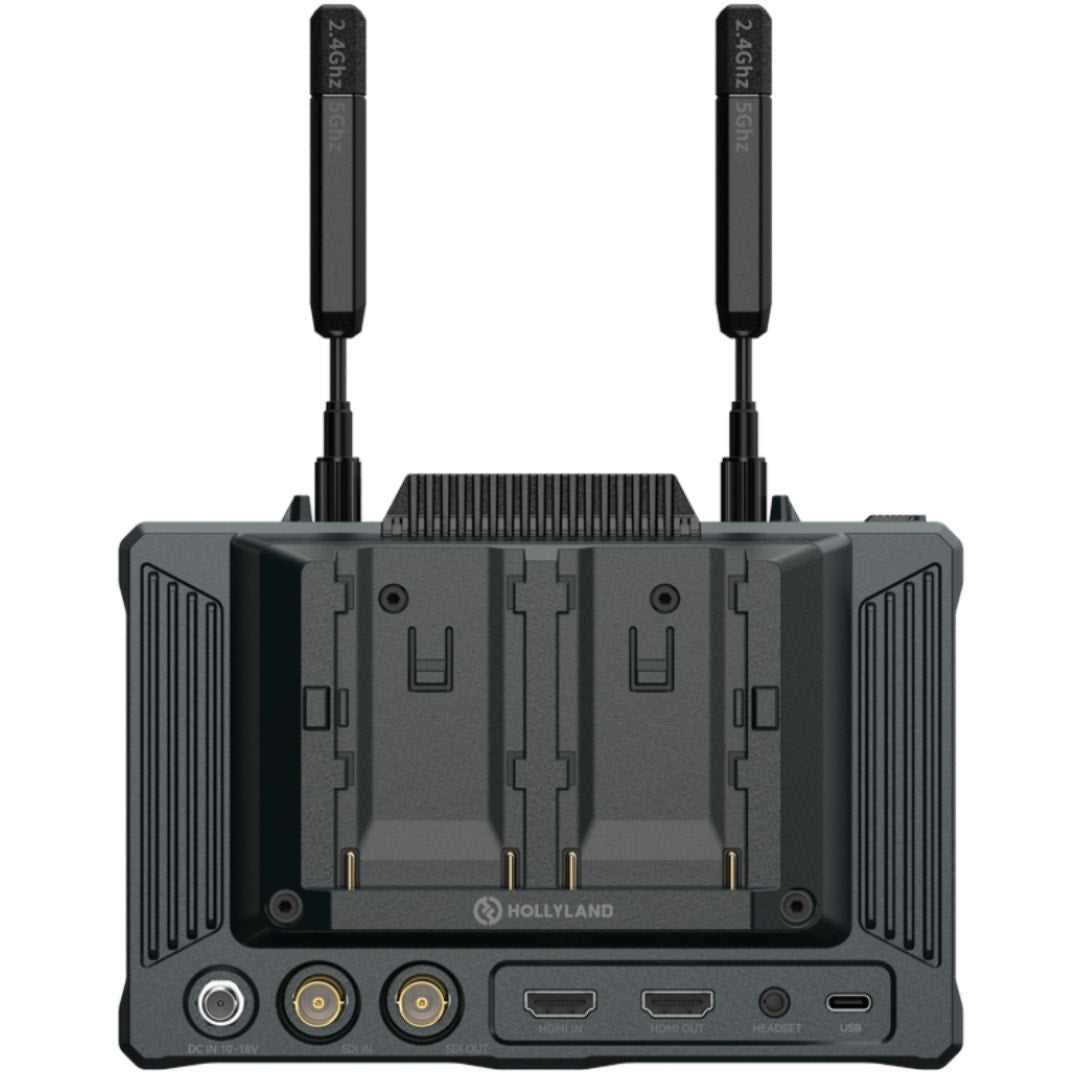

The transmitter takes HDMI or 3G SDI input and has an HDMI loopout. The receiver has HDMI and SDI outputs, plus an SDI loopout.

Latency and recording

Display latency is under 50 ms, and transmission latency is approx. 60 ms (lab test, 1080p60).

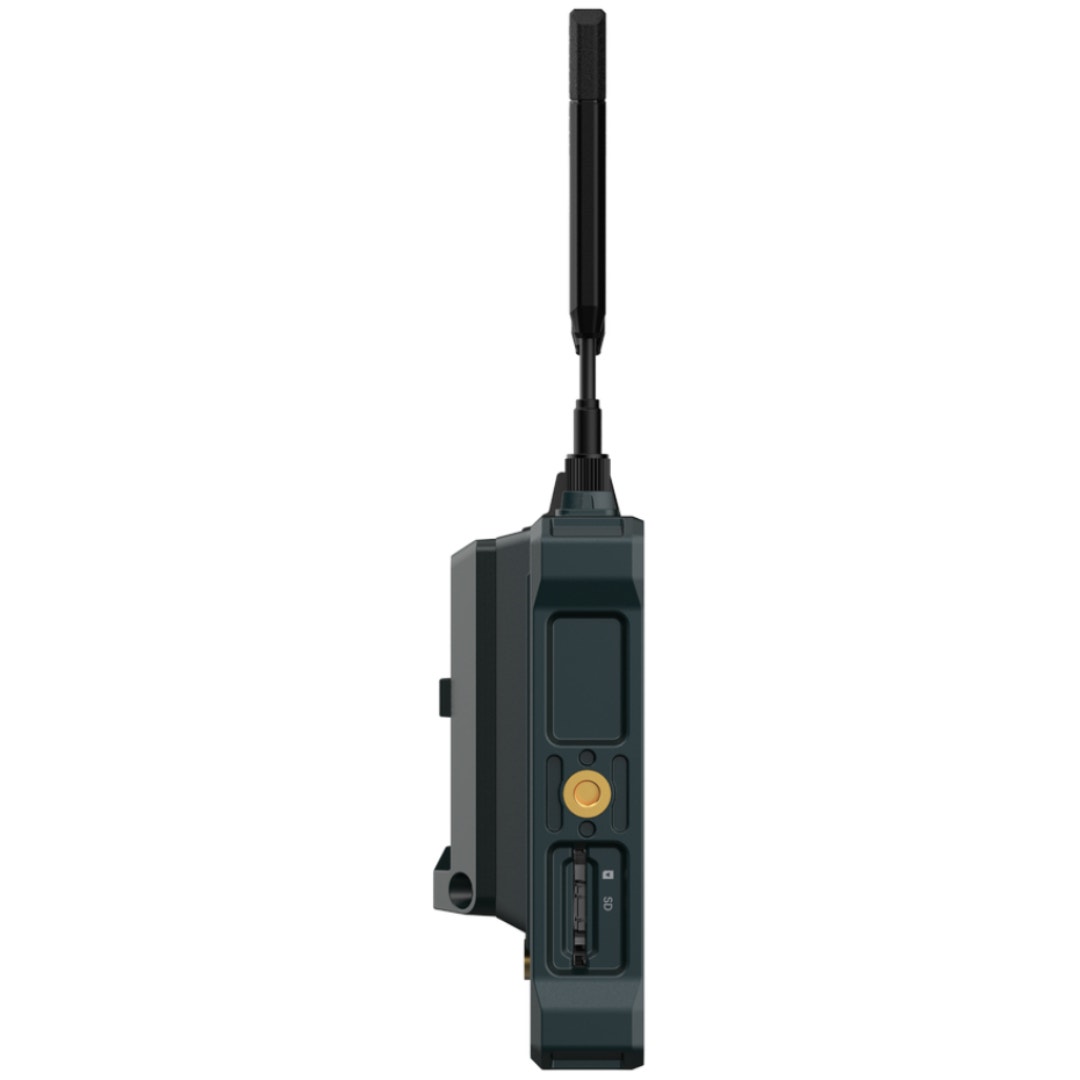

Extended MP4 recording goes up to 40 minutes per session, using the SD card slot.

Streaming

In TX mode, the USB-C port supports RTMP streaming.

Power, battery and weight

The NP-F battery plate is standard, and G-Mount and V-Mount plates are optional.

Power input is 10-18 V DC at 2.5 A (nominal 12 V) through a locking DC port, and consumption is under 22 W.

Weight is approx. 570 g with the battery plate included and external antennas excluded.

What's in the box

• Wireless Transceiving Monitor x1
• Paddle Antenna (2.4 GHz & 5 GHz) x2
• SD card 32G x1
• D-Tap to Locking DC Power Adapter Cable x1
• USB-C OTG Adapter x1
• User Manual x1
• Warranty Card x1

Compared with the Pyro 7 Kit, this box holds one monitor, two paddle antennas and one SD card. The kit box holds two monitors, five paddle antennas, two SD cards, a carrying case and a Hollyland Ecosystem Leaflet.

Why choose it

• Broadcast mode links one transmitter to four receivers
• Transmission latency approx. 60 ms in a lab test at 1080p60
• Extended MP4 recording up to 40 minutes per session
• RTMP streaming in TX mode through the USB-C port
